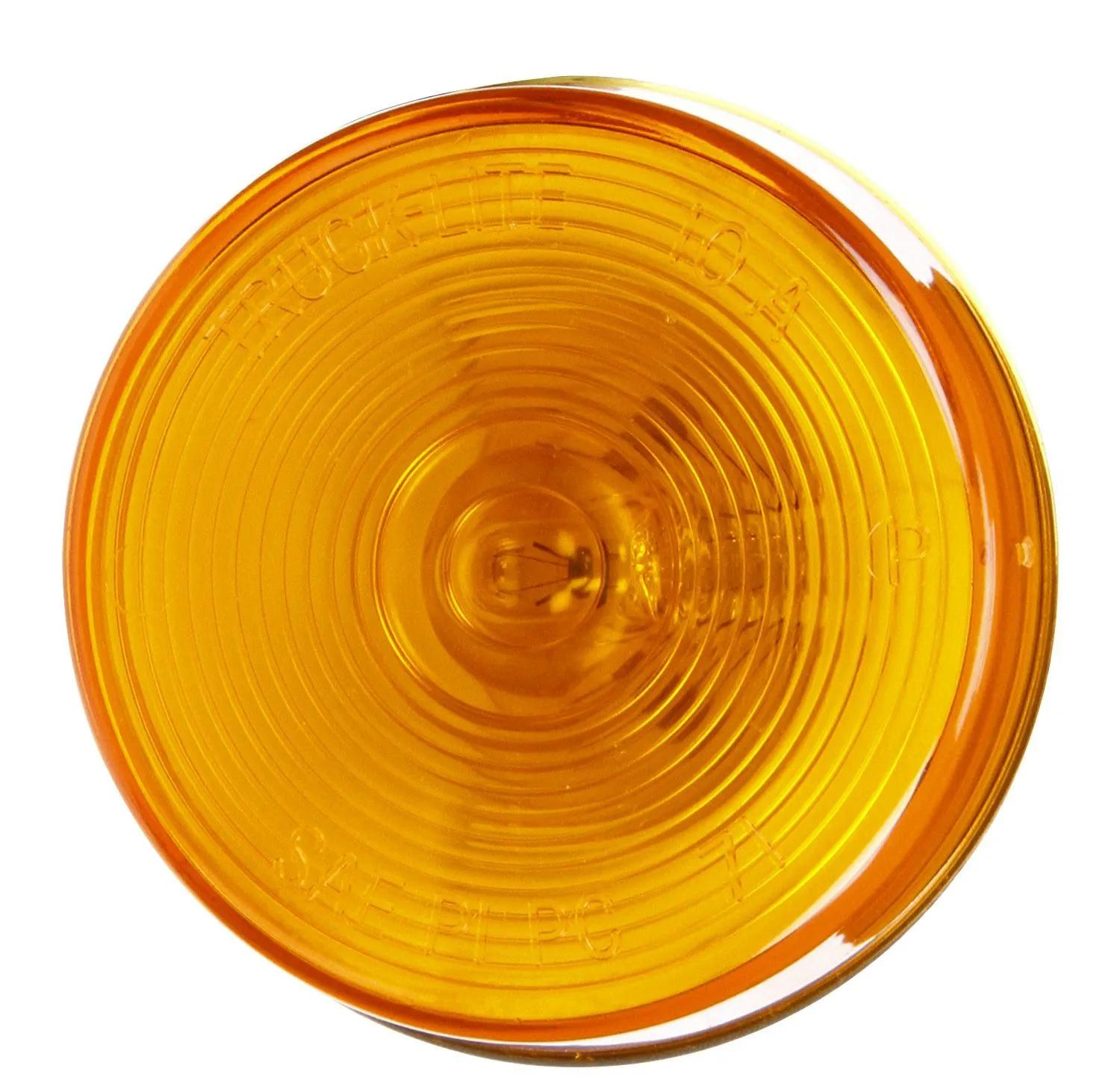

Marker Clearance Light, Amber & Yellow, Round
#TRL10004Y
Product Overview
10 Series, Incandescent, Yellow Round, 1 Bulb, Marker Clearance Light, PC, Bracket Mount, PL-10, Ring Terminal/Stripped End, 12V, Kit
Features & Benefits
- Rust resistant stainless steel mount
- Quick cam-on, cam-off lamp installation
- Suitable for PC requirements on a 45-degree angle using all 2-1/2"
- diameter lamps
- Mounts with screws to surface
- Model 10 kits available
Specifications
| Color | Amber |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Bracket, Plug |
| Current Major | 0.33 amp |
| Depth | 45/64 in (1.78 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-1/2 in (6.35 cm) |
| Housing Color | Silver |
| Kit (Y/N) | Yes |
| Lamp Screw Hole Diameter | 5/32 in (0.41 cm) |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2-1/2 in (6.35 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 10004Y |
| 60330403 |
| 841310004Y |
| 71217399 |
| KP68870X |
| TL10004Y |
| HT50602071 |
| TLD10004Y |
| 10004Y-TL |
| 1010A |
| 3431 |
| 8413-10004Y |
| 85108281 |
| LIT10004Y |
| TL 10004Y |
| TL 10004Y |
| TRU10004Y |
