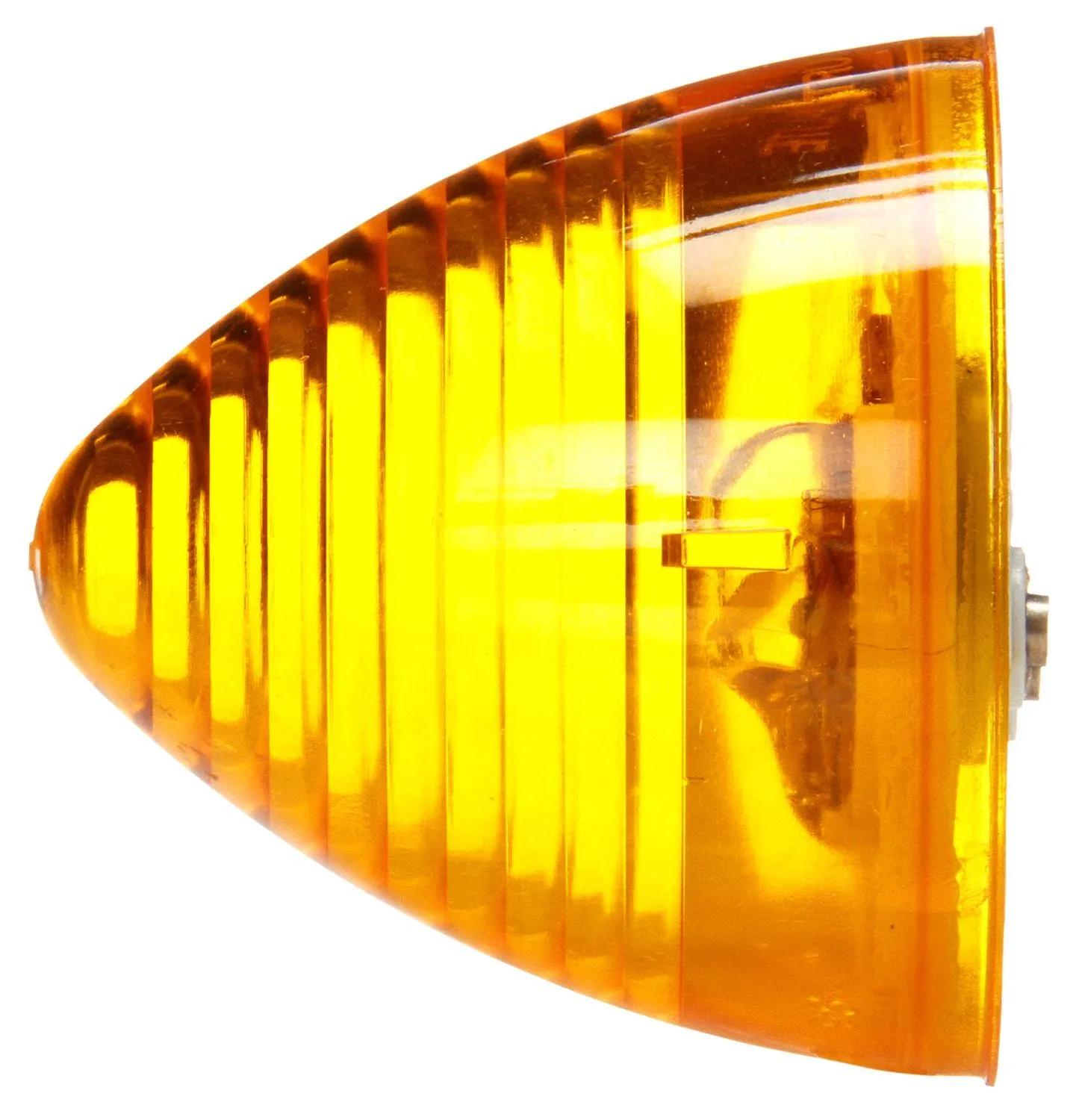

Marker Clearance Light, Amber & Yellow, Round
#TRL10203Y
Product Overview
10 Series, Incandescent, Yellow Beehive, 1 Bulb, Marker Clearance Light, PC, PL-10, 12V
Features & Benefits
- Features a beehive lens designed for cab marker use
- Lens and housing are sonically sealed
- High-impact polycarbonate construction
- 12V, 15,000-hour-rated bulb
Specifications
| Color | Amber |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.33 amp |
| Depth | 2-9/32 in (5.79 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-35/64 in (6.48 cm) |
| Kit (Y/N) | No |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Beehive |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-027 |
| Volt | 12V |
| Width | 2-35/64 in (6.48 cm) |
Interchanges & Equivalent parts:
| 10203Y |
| 812500 |
| 841310203Y |
| MC27AB |
| T10203Y |
| TL10203Y |
| HT50602024 |
| TLD10203Y |
| TRU10203Y |
| LT13Y |
| 10203Y-TL |
| 3099901 |
| 8413-10203Y |
| LIT10203Y |
| MC-27AB |
| TL 10203Y |
| TL 10203Y |
| TL-10203Y |
| 45323GR0 |
| PT1300A |
| PA10077 |
| 4MO46M |
