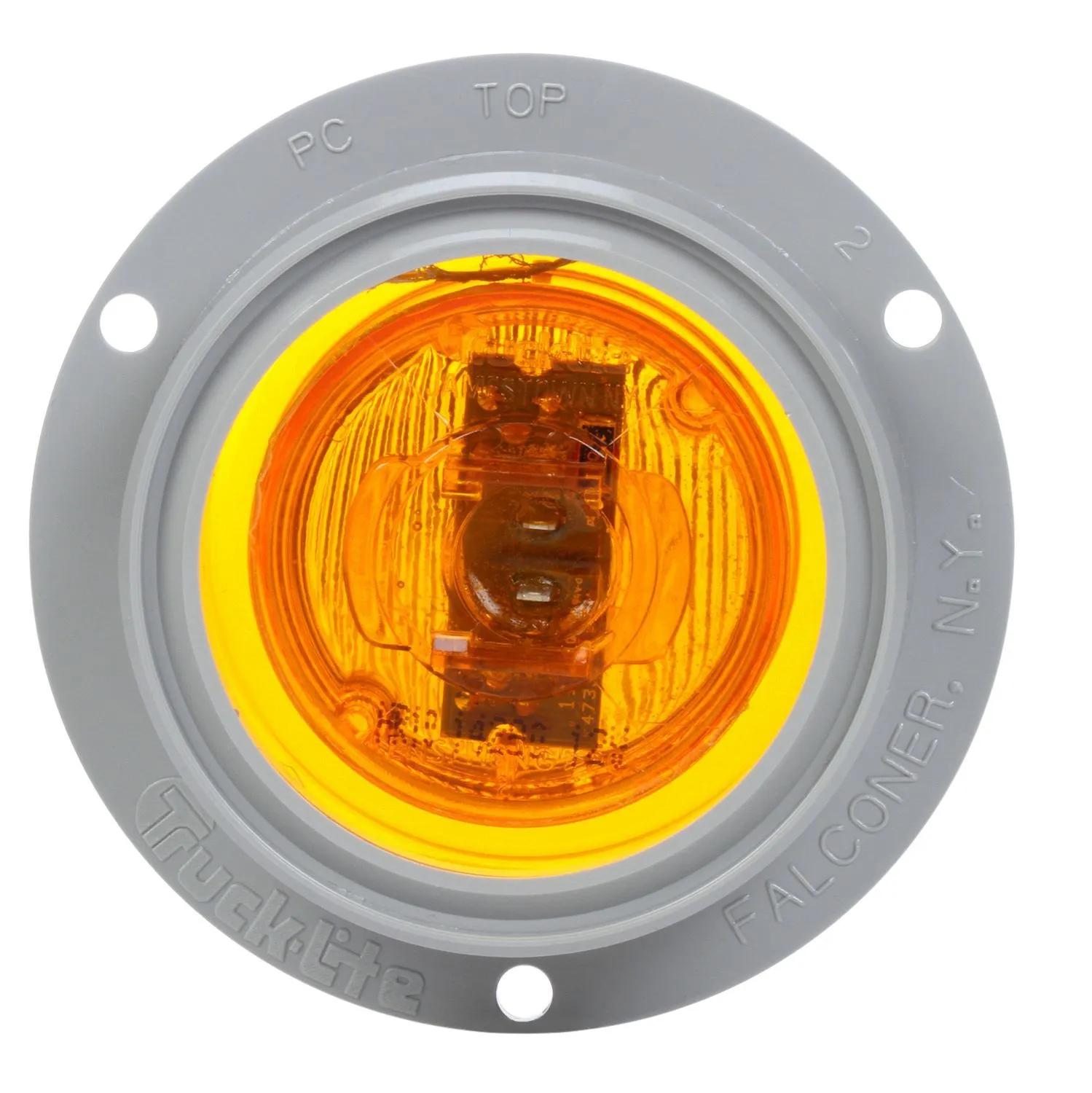

Marker Clearance Light, Amber & Yellow, Round
#TRL10251Y
Product Overview
10 Series, LED, Yellow Round, 2 Diode, Marker Clearance Light, P2, Gray Polycarbonate Flange Mount, Fit 'N Forget M/C, 12V
Features & Benefits
- P2/P3 Rated marker & clearance lamps are compliant for 90 degree
- Low-profile design to reduce damage from being hit or knocked off.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Amber |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp w/ Flange |
| Current Major | 0.08 amp |
| Depth | 1-13/32 in (3.58 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-1/2 in (8.89 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 3-1/2 in (8.89 cm) |
Interchanges & Equivalent parts:
| 51040528 |
| 1000977 |
| 41301377 |
| 413013772 |
| 14200544 |
| 1015AF |
| 10251Y |
| 6001787001 |
| 43160 |
| 602932111 |
| 47123 |
| 841310251Y |
| 703051256 |
| 6703350 |
| 94890271 |
| TKL10251Y |
| TL10251Y |
| HT50601580 |
| TLD10251Y |
| TRU10251Y |
| E7088598 |
| LI071118 |
| M162FR |
| 10251Y3 |
| 21051101 |
| 8413-10251Y |
| LED10FY |
| LEDF2500-4A2 |
| LIT10251Y |
| TL 10251Y |
| TL 10251Y |
| TLT 10251Y |
| GRT47123 |
| M11260R |
| M162FA |
| G2740 |
