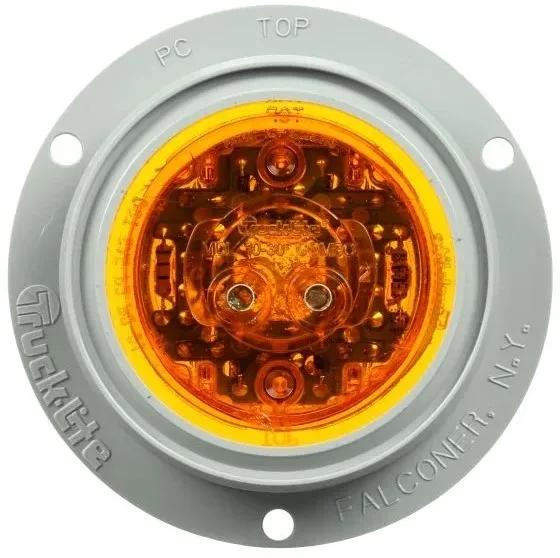

Marker Clearance Light, Amber & Yellow, Round
#TRL10289Y
Product Overview
10 Series, Low Profile, LED, Yellow Round, 8 Diode, Marker Clearance Light, PC, Gray Polycarbonate Flush Mount, PL-10, 12V
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- Low-Profile design improves clearance and reduces risk of getting knocked off. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology protecting against damage from shock and vibration.
Specifications
| Color | Amber |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Gray Flange |
| Current Major | 0.1 amp |
| Depth | 1-1/16 in (2.69 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-1/2 in (8.89 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flush Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 3-1/2 in (8.89 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 41313770 |
| 1026507 |
| 10289Y |
| 47373 |
| 66840 |
| 94890442 |
| TL10289Y |
| TLD10289Y |
| 8413-10289Y |
| LIT10289Y |
| TL 10289Y |
| TL 10289Y |
| M163FA |
| PTSM163FA |
