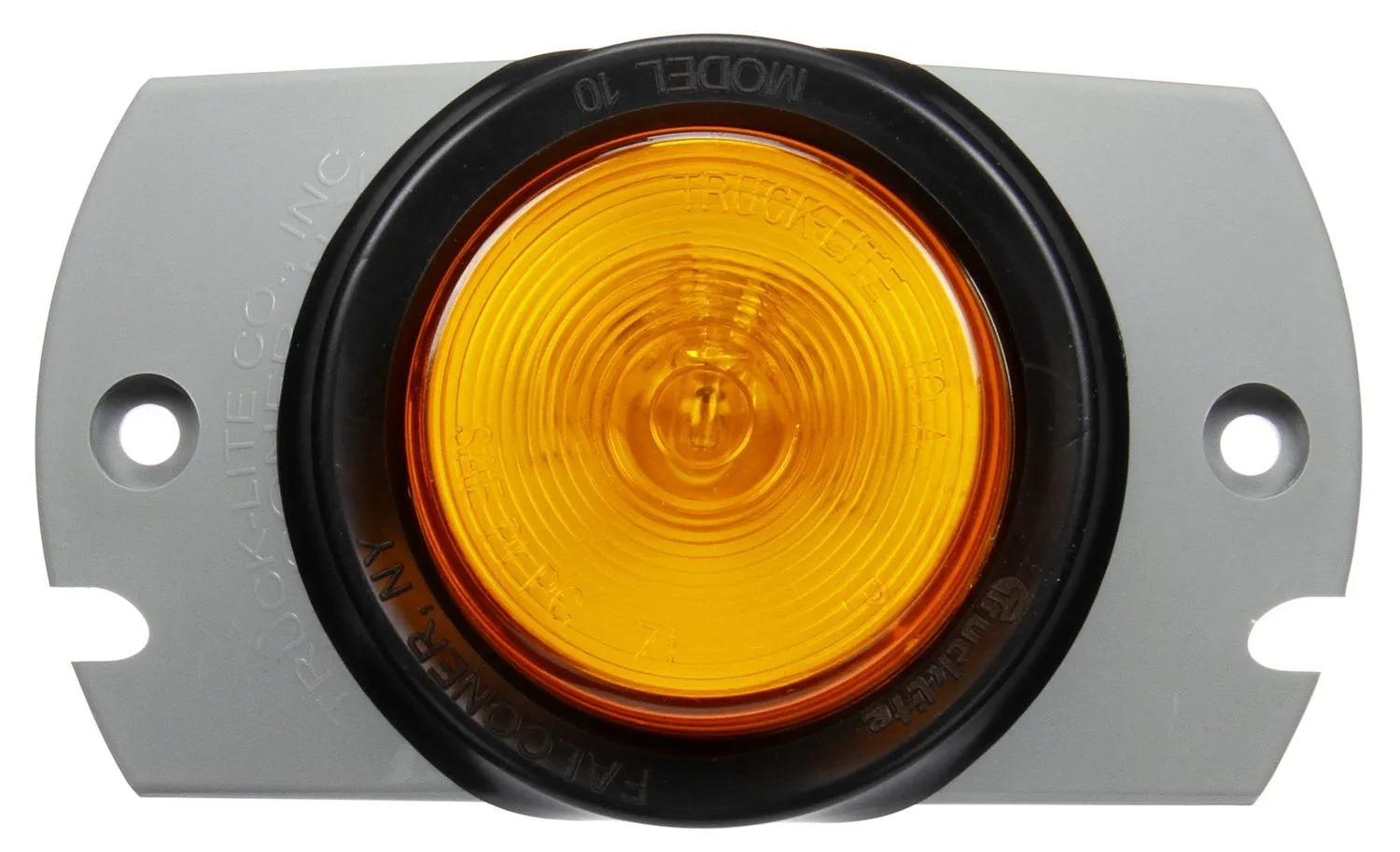

Marker Clearance Light, Amber & Yellow, Round
#TRL10520Y
Product Overview
10 Series, Incandescent, Yellow Round, 1 Bulb, Marker Clearance Light, PC, Gray Polycarbonate Bracket Mount, PL-10, Ring Terminal/Stripped End, 12V, Kit
Features & Benefits
- High-impact plastic deflector mount
- Design allows surface mounting of 2-1/2"
- lamps
- Suitable for PC requirements on a 45-degree angle when using LED or incandescent PC-rated/combination lamps
Specifications
| Color | Amber |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Bracket, Plug |
| Current Major | 0.33 amp |
| Depth | 31/32 in (2.46 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-1/8 in (7.95 cm) |
| Housing Color | Gray |
| Kit (Y/N) | Yes |
| Lamp Screw Hole Diameter | 7/32 in (0.56 cm) |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-036 |
| Volt | 12V |
| Width | 5-3/4 in (14.61 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5990232012 |
| 45813 |
| 458134369067050 |
| 10520Y |
| 43690 |
| 6752333 |
| 841310520Y |
| 67050 |
| TL10520Y |
| HT50602026 |
| TLD10520Y |
| 10520Y1 |
| TRU10520Y |
| 800-250251A |
| 8413-10520Y |
| LIT10520Y |
| LT10KBY |
| TL 10520Y |
| TL 10520Y |
| 1010A |
| 43690GR0 |
| GRT43690 |
