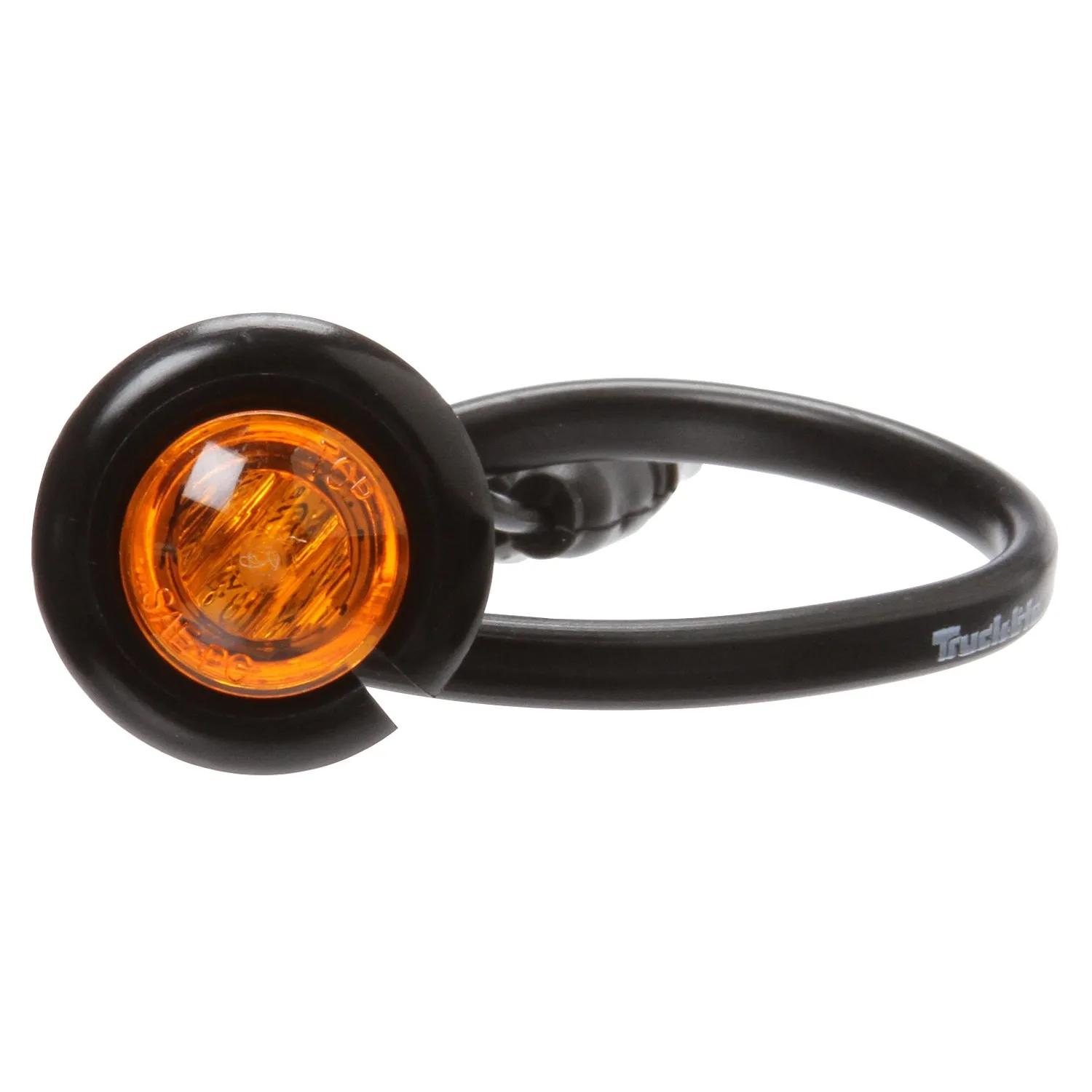

Feu de gabarit, ambre et jaune, rond
#TRL33080Y
Product Overview
Série 33, LED, Jaune Rond, 1 Diode, Feu de gabarit, PC, Montage sur bride en nylon noir, Câblé, Borne .180 Bullet, 12V, Kit
Features & Benefits
- US patent 7,658,524
- World's smallest LED marker lamp for the transportation industry
- Exceeds legal requirements
- Hardwired lamp design is easily retrofitted
- LEDs draw less current, allowing more power for other vehicle requirements
- A PC rated legal lamp allows for one lamp instead of two to meet the 180 degrees
Specifications
| Couleur | Jaune |
| Taille commune | 3/4 in (1.91 cm) |
| Contient | Lampe, Bride |
| Major actuel | 0,14 amp |
| Profondeur | 63/64 in (2.49 cm) |
| Coquille de diamant (O/N) | Non |
| Hauteur | 1-3/32 in (2.77 cm) |
| Couleur du boîtier | Noir |
| Trousse (O/N) | Yes |
| Longueur | 23/32 in (1.83 cm) |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Matériau de montage/garniture | Nylon |
| Type de support | Montage à bride |
| Nombre de câbles | 2 |
| Fiche #1 | PL-2 (Stripped End) |
| Fiche #2 | .180 Bullet, Standard |
| Réfléchissant (O/N) | Non |
| Séries | 33 Series |
| Forme | Rond |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technologie | LED |
| Type | Marker Clearance Light |
| Code VMRS | 034-004-253 |
| Volt | 12V |
| Largeur | 1-3/32 in (2.77 cm) |
| Calibre de(s) fil(s) | 18 ga |
| Longueur de fil | 8 po (20,32 cm) |
Interchanges & Equivalent parts:
| TLD33080Y |
| 33080YTLT |
| 8413-33080Y |
| LIT33080Y |
| TL 33080Y |
| TL 33080Y |
| TL33080Y |
| 33080Y |
