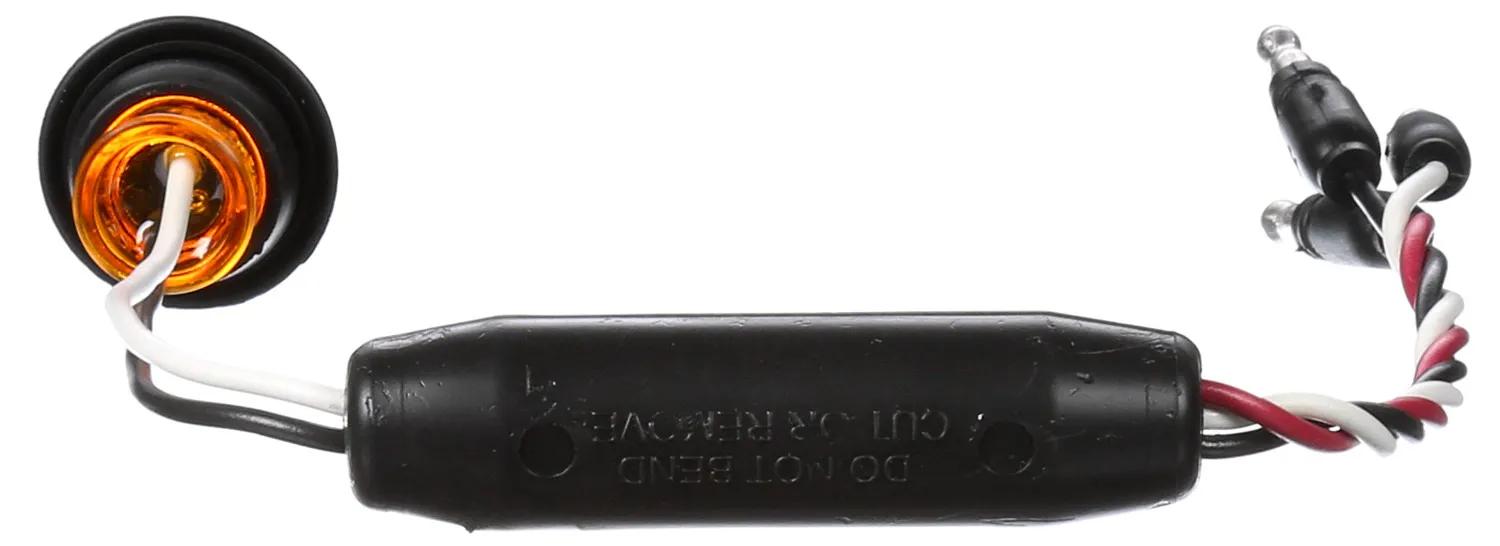

Marker Clearance Light, Amber & Yellow, Round
#TRL33205Y
Product Overview
Dual Function,33 Series, LED, Yellow Round, 1 Diodes, Marker Clearance Light, P2, Black Rubber Grommet, Hardwired, .180 Bullet Terminal, 12V, Kit
Features & Benefits
- World smallest LED marker lamp for the transportation industry
- Provides increased visibility when braking or turning
- Functions as a marker, auxiliary turn, and auxiliary stop when properly installed
Specifications
| Color | Amber |
| Common Size | 3/4 in (1.91 cm) |
| Current Major | 0.12 amp |
| Current Minor | 0.03 amp |
| Depth | 11-1/2 in (29.21 cm) |
| Diamond Shell (Y/N) | No |
| Height | 11-1/2 in (29.21 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | Rubber |
| Mount Type | Grommet Mount |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 33 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 1-3/32 in (2.77 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 33205Y |
| 33205YTLT |
