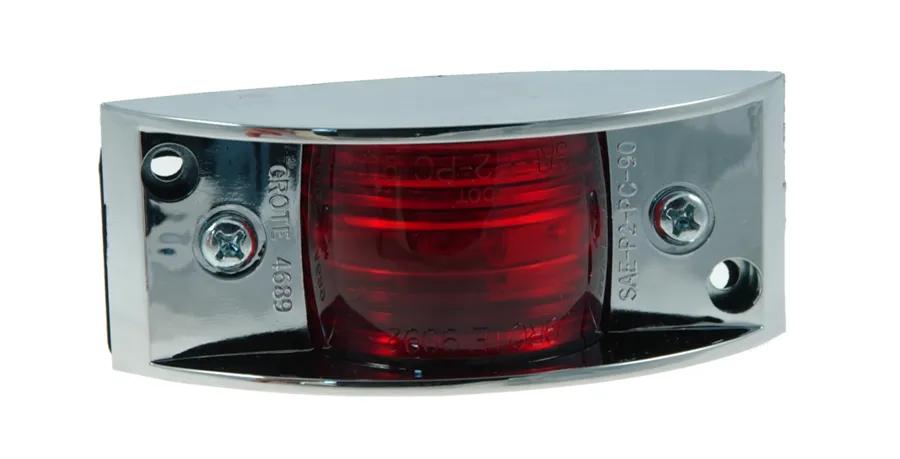

Marker Clearance Light, Red, Rectangular
#GRO46892
Product Overview
Direct Interchange For Competitive Models, Flat Back, No Bulb Socket Hole Required, Meets PC Function Only When Mounted At A 45 Deg Angle
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 0.27 amp |
| Color | Red |
| Connection | Blunt Cut |
| Connection Type | Blunt Cut |
| Contents | Lamp |
| Current Major | 0.35 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | Yes |
| Finish | Chrome Plated |
| Fits Pigtail Part #(s) | Hard Wired |
| Function | P2, PC |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Silver |
| Includes | Gasket |
| Kit (Y/N) | No |
| Lamp Type | Model 26 |
| Length | 5 in (12.7 cm) |
| Lens Material | Acrylic |
| Mounting Type | Screw |
| Mount Type | Screws Mount |
| Number Of Wires | 1 |
| Packaging | Polybag |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | No |
| Regulations | FMVSS 108 |
| Replacement Lens | 99160R |
| Series | 26 Series |
| Shape | Rectangular |
| Standard | FMVSS 108 |
| Style | Chrome-Armored |
| Technology | Incandescent |
| Volt | 12V |
| Weight | 0.2 lb (0.09 kg) |
| Width | 2-1/4 in (5.72 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
46892, 124R, 26313R, 26313R1, 46892, 122R, 46892-3, 468923, GRO46892-3, GRO468923, 124R, 2671S1G, 7376-46892, GRO46892, GT46892, LT556R, M122R, M122XR, ML2540R, PT2607R, V122XR, 26313R1, M124R, PT2605R, ZBJ46892, ZBJD46892, 46892, 46892, 26313R, 26313R1, 124R, 122R, GRO468923, GRO46892-3, 46892-3, 468923, M122R, 2671S1G, PT2607R, GT46892, ML2540R, M122XR, GRO46892, 7376-46892, LT556R, 124R, V122XR, ZBJ46892, M124R, 26313R1, ZBJD46892, PT2605R
