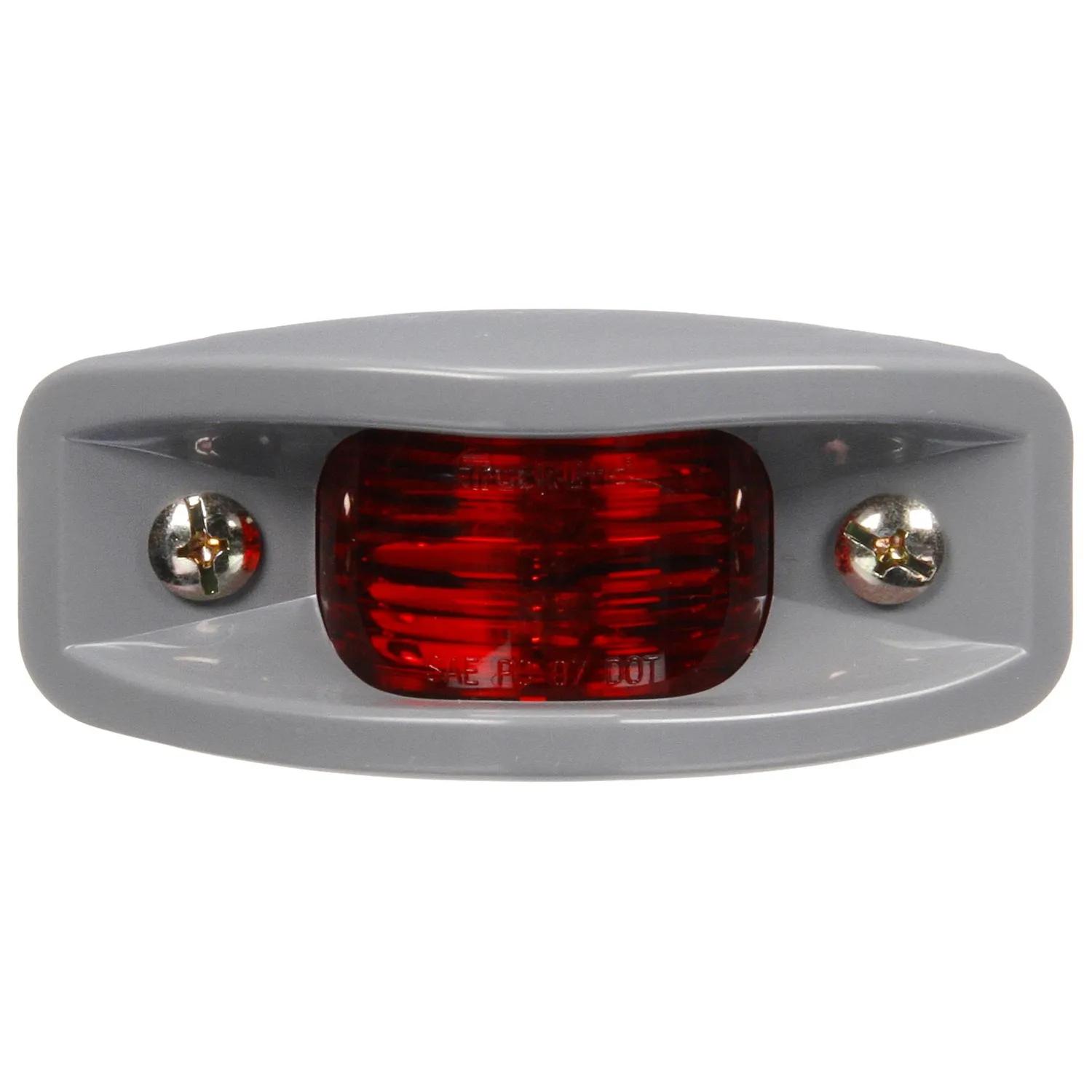

Marker Clearance Light, Red, Rectangular
#TRL26313R
Product Overview
26 Series, ABS, Incandescent, Red Rectangular, 2 Bulb, Marker Clearance Light, PC, Silver ABS Bracket Mount, Hardwired, Stripped End, 12V
Specifications
| Amps | 0.27 amp |
| Color | Red |
| Connection | Blunt Cut |
| Connection Type | Blunt Cut |
| Contents | Lamp |
| Current Major | 0.35 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | Yes |
| Finish | Chrome Plated |
| Fits Pigtail Part #(s) | Hard Wired |
| Function | P2, P3, PC, PC2 |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Silver |
| Includes | Gasket |
| Kit (Y/N) | No |
| Lamp Type | Model 26 |
| Length | 5 in (12.7 cm) |
| Lens Material | Acrylic |
| Material | ABS |
| Mounting Type | Screw |
| Mount Type | Bracket Mount |
| Number Of Wires | 1 |
| Packaging | Polybag |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | No |
| Regulations | FMVSS 108 |
| Replacement Lens | 99160R |
| Series | 26 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Style | Chrome-Armored |
| Technology | Incandescent |
| VMRS Code | 034-004-021 |
| Volt | 12 V |
| Weight | 0.2 lb (0.09 kg) |
| Width | 5 in (12.7 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
46892, 468923, 841326313R, 943, HT50602266, TL26313R, TLD26313R, M122R, 26313R, TL26313R, 1114, 1114-3, 11143, 1114D, 122R, 26313R1, 059-00-522, 468923, 8413-26313R, LIT26313R, TL 26313R, TL 26313R, TL26313R, TLD26313R, 45172GR0, M122R, 46892, 468923, 26313R, HT50602266, TLD26313R, TL26313R, 943, 841326313R, TL26313R, M122R, 1114-3, 122R, 26313R1, 11143, 1114D, 1114, 059-00-522, TL 26313R, 468923, 8413-26313R, TL 26313R, LIT26313R, TLD26313R, TL26313R, M122R, 45172GR0
