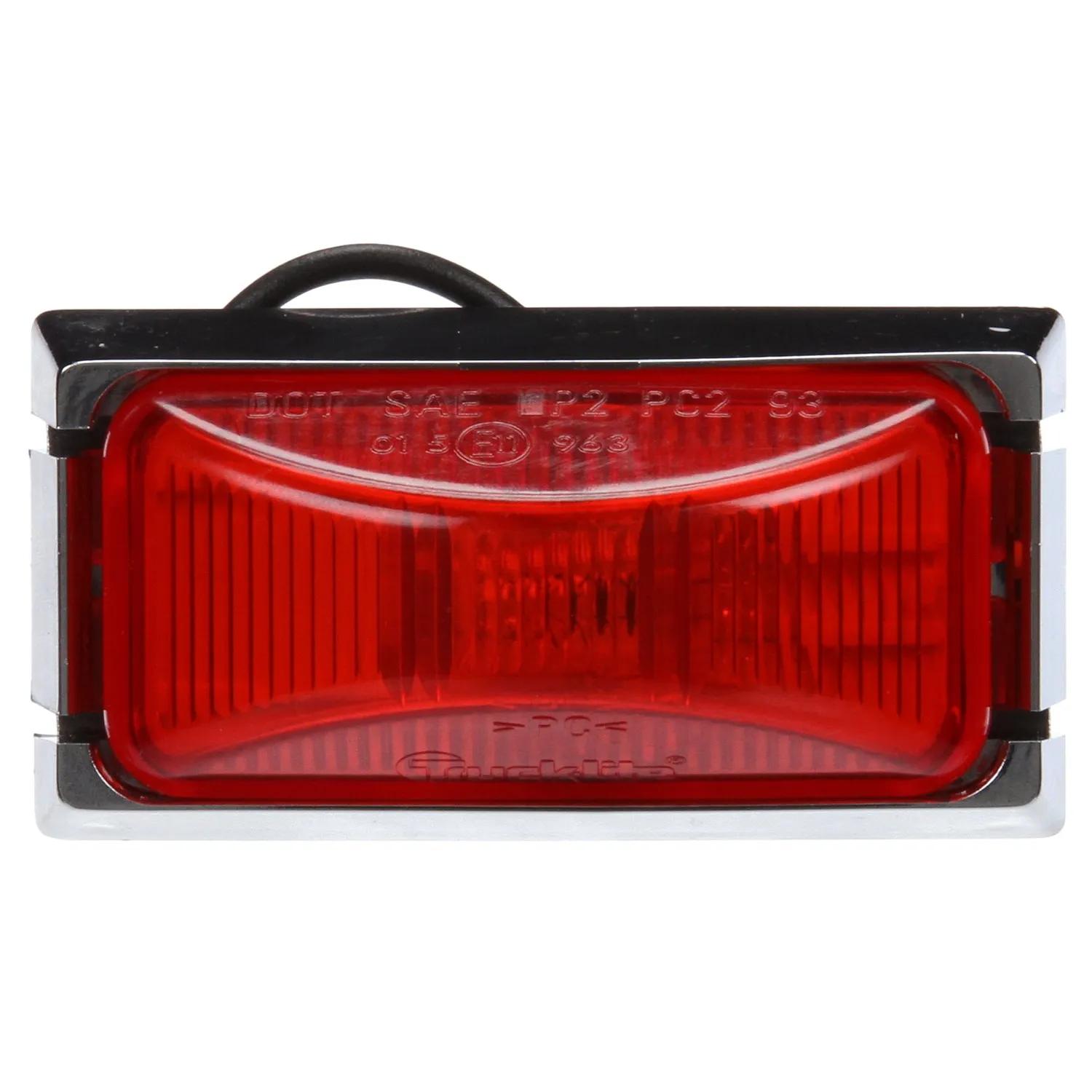

Marker Clearance Light, Red, Rectangular
#TRL15506R
Product Overview
15 Series, Adapter Mount, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, PC2, Chrome ABS Bracket Mount, .156 Bullet Hot Wire, Stripped End, 12V, Kit
Features & Benefits
- Submersible for marine use
- Sealed incandescent for durability
- Stylish design for contemporary look
- Upgrade to LED for improved efficiency
- Clearance and marker lamp for visibility
- Sure contact with self grounding features
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Chrome Mount, Lamp, How Wire, Gasket |
| Current Major | 0.33 amp |
| Depth | 53/64 in (2.11 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-13/64 in (3.05 cm) |
| Housing Color | Chrome |
| Kit (Y/N) | Yes |
| Lamp Screw Hole Diameter | 13/64 in (0.51 cm) |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | ABS |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | .156 Bullet Hot Wire |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 15 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2-29/32 in (7.39 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 45082 |
| 60248141 |
| 60593 |
| 611006 |
| 812260 |
| 46412543980 |
| 841315506R |
| KL10105RK |
| V150KR |
| MC91RB |
| TL15506R |
| HT50602105 |
| TLD15506R |
| TRU15506R |
| 15506R |
| 15506R1 |
| 47872-5 |
| 81226 |
| 8413-15506R |
| KL-10105RK |
| KT2134R |
| LIT15506R |
| MC-91RB |
| TL 15506R |
| TL 15506R |
| 150KR |
| 45082GR0 |
| 800-250124R |
| 9530-3 |
| GRO 46412 |
| LT15KR |
| V150C |
| 42618 |
| 46412 |
