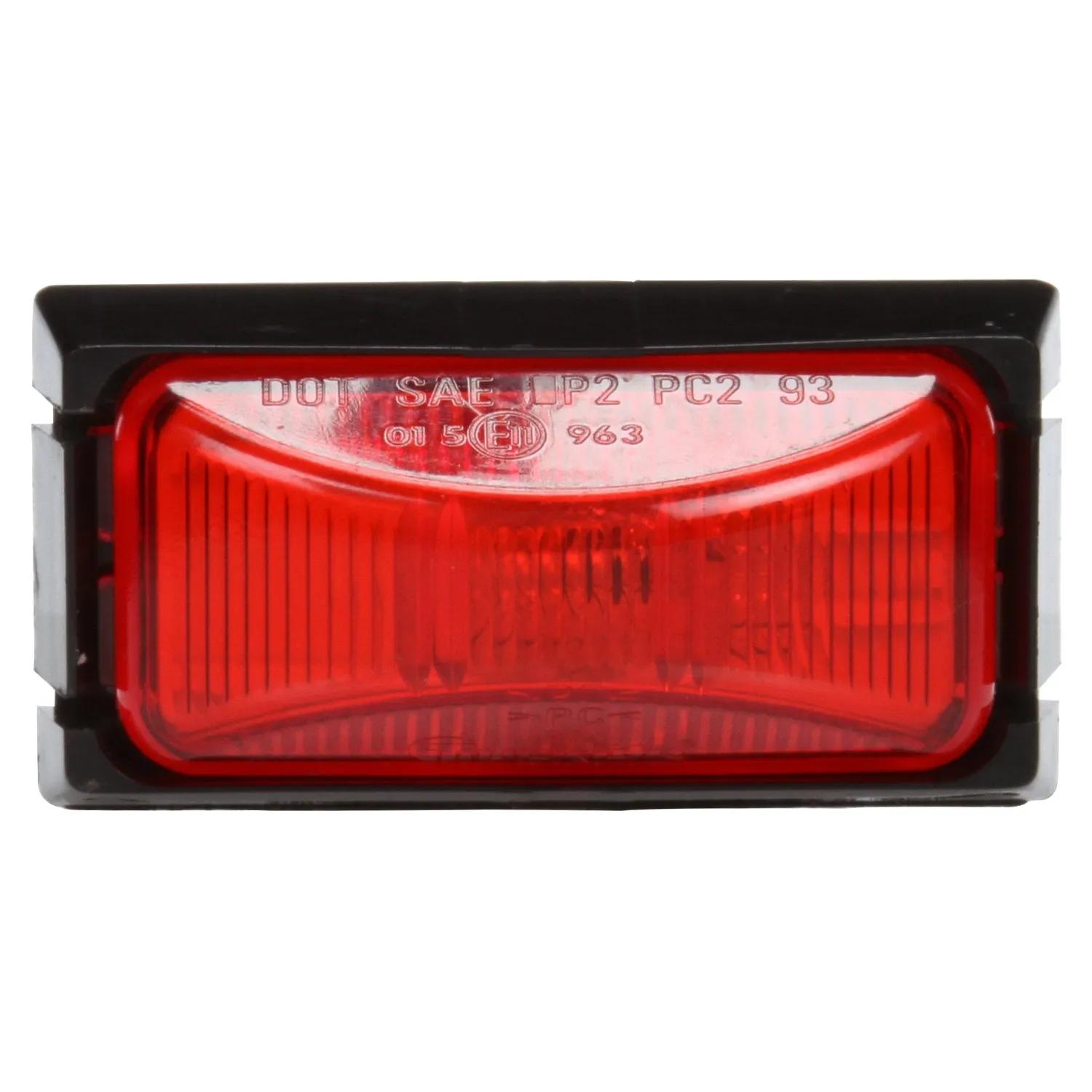

Marker Clearance Light, Red, Rectangular
#TRL15507R
Product Overview
15 Series, Adapter Mount, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, PC2, Black ABS Bracket Mount, .156 Bullet Hot Wire, Stripped End, 12V, Kit
Features & Benefits
- Submersible for marine use
- Sealed incandescent for durability
- Stylish design for contemporary look
- Upgrade to LED for improved efficiency
- Clearance and marker lamp for visibility
- Sure contact with self grounding features
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Black Mount, Lamp, How Wire, Gasket |
| Current Major | 0.33 amp |
| Depth | 53/64 in (2.11 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-13/64 in (3.05 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Lamp Screw Hole Diameter | 13/64 in (0.51 cm) |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | ABS |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | .156 Bullet Hot Wire |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 15 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2-29/32 in (7.39 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 41312503 |
| 43980 |
| 464225 |
| 651816 |
| 47083 |
| 841315507R |
| MC92RB |
| TL15507R |
| HT50602103 |
| TLD15507R |
| E70268 |
| M20320R01 |
| 15507R |
| 15507R1 |
| KT2132R |
| LIT15507R |
| M20320R-01 |
| MC-92RB |
| TL 15507R |
| TL 15507R |
| 47872-5 |
| TG464225 |
