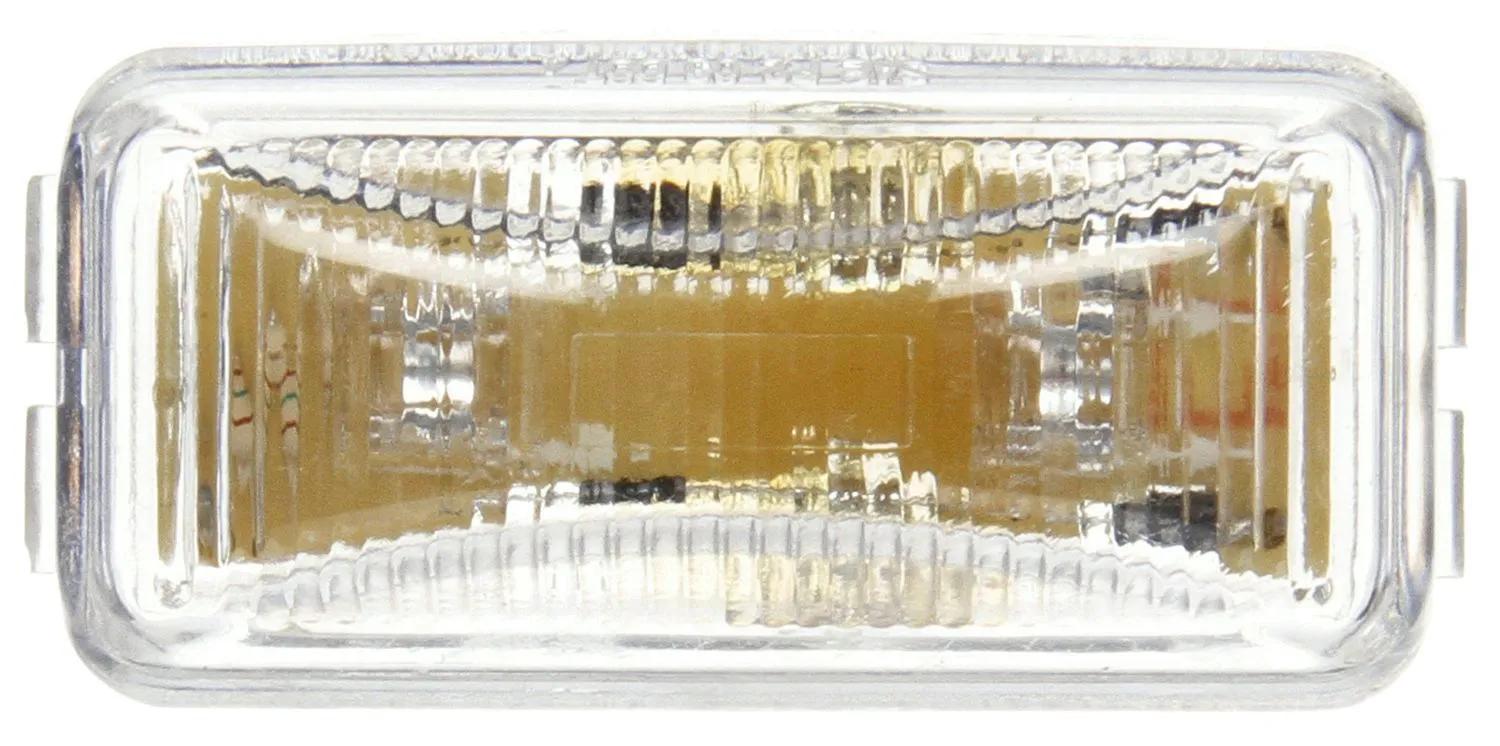

Marker Clearance Light, Red, Rectangular
#TRL1561
Product Overview
Signal-Stat, LED, Clear Red Rectangular, 2 Diode, Marker Clearance Light, P2, PL-10, 12V
Features & Benefits
- Popular on owner/operator and show trucks
- Standard connection
- 2 Diode (red), 3 diode (yellow) LED pattern
- Encapsulated electronics prevent damage from moisture and corrosion
- Not suitable for PC requirements
Specifications
| Color | Red & White |
| Common Size | 1 in (2.54 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.05 amp |
| Depth | 15/16 in (2.39 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-13/64 in (3.05 cm) |
| Kit (Y/N) | No |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2-31/64 in (6.3 cm) |
Interchanges & Equivalent parts:
| 1561 |
| 1561S1G |
| 8413-1561 |
| LIT1561 |
| TL 1561 |
| TLD1561 |
