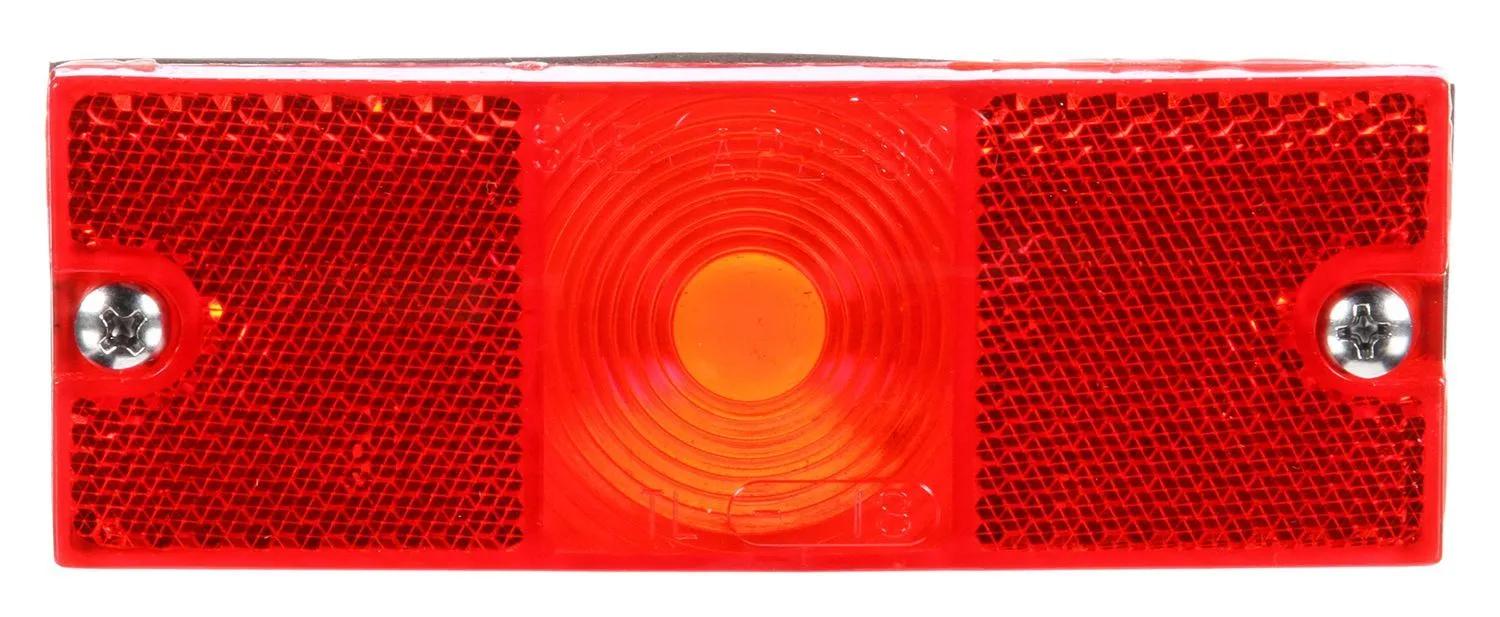

Marker Clearance Light, Red, Rectangular
#TRL18300R
Product Overview
18 Series, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Reflectorized, Socket Assembly, Ring Terminal/Stripped End, 12V, Kit
Features & Benefits
- Sonically welded lens and housing
- Replaceable bulb
- Not suitable for PC requirements
- Replaces Signal-Stat 1572/1572A
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Hard Wired |
| Current Major | 0.27 amp |
| Depth | 2-1/8 in (5.41 cm) |
| Diamond Shell (Y/N) | Yes |
| Height | 1-5/8 in (4.14 cm) |
| Housing Color | Red |
| Kit (Y/N) | Yes |
| Length | 4-1/2 in (11.43 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | Yes |
| Series | 18 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-024 |
| Volt | 12V |
| Width | 4-1/2 in (11.43 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 4 in (10.16 cm) |
Interchanges & Equivalent parts:
| 109264 |
| 5117228002 |
| 2FW607 |
| 410141 |
| 1121017 |
| 114598001 |
| 3139 |
| BE010532 |
| 500893 |
| 736139 |
| 703051270 |
| 7089 |
| C165009216 |
| 712225 |
| 71222599 |
| V132R |
| HT50602168 |
| TRU18300R |
| M132R |
| 21063921 |
| 210639214 |
| 16512293 |
| 16512711 |
| 841318300R |
| TL18300R |
| TLD18300R |
| 58154 |
| 4204411 |
| 1941376 |
| 427442 |
| 18300R |
| 10506688 |
| 8761X |
| AMR2037 |
| AA42417 |
| 810120 |
| MTL07049700R |
| F310153 |
| 1232493 |
| 202525 |
| 1572 |
| 14500 |
| 18300R1 |
| 18300R-TL |
| 4200600B |
| 810127 |
| 8413-18300R |
| LIT18300R |
| TL 18300R |
| TL 18300R |
| TL-18300R |
| 47732GR0 |
| 980015 |
