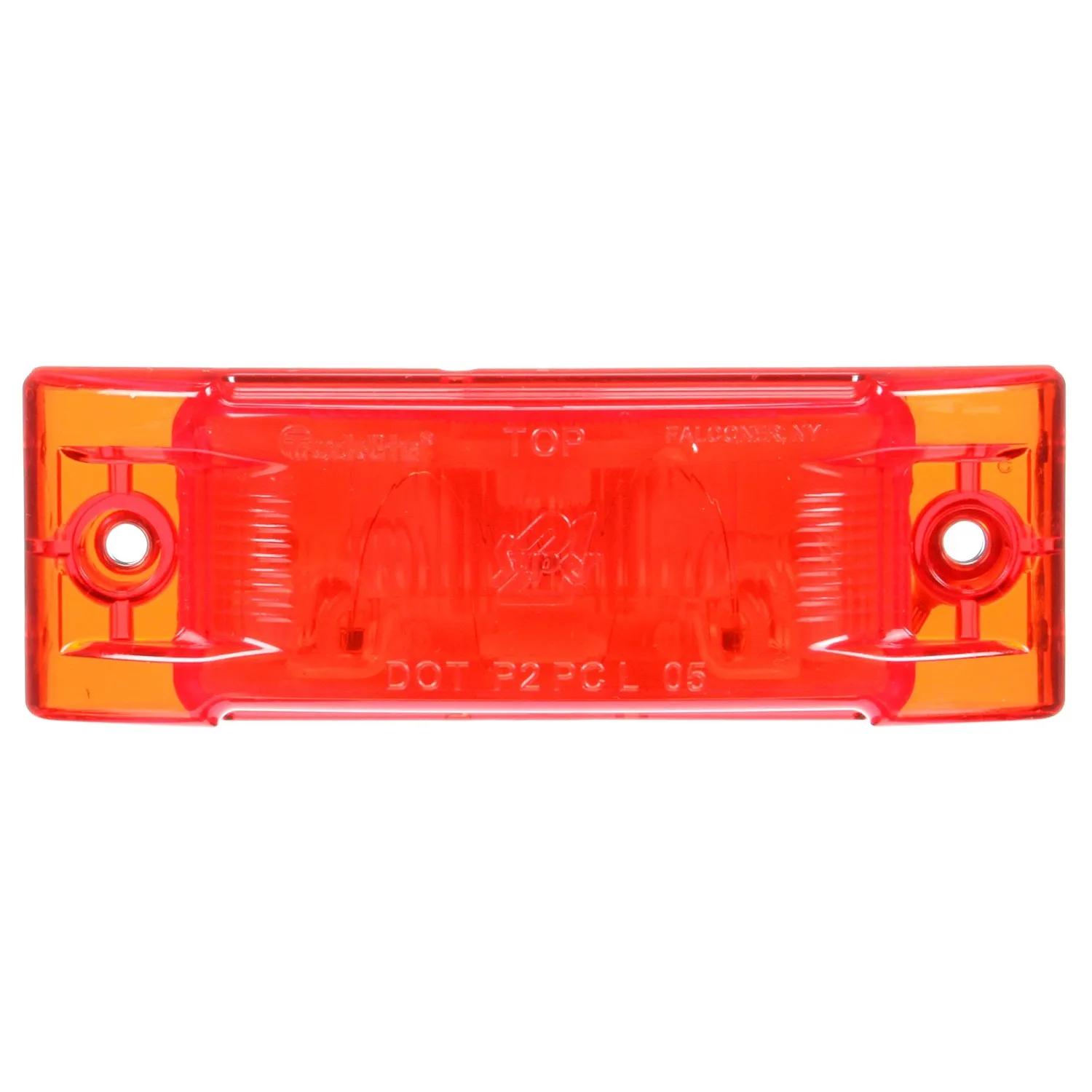

Marker Clearance Light, Red, Rectangular
#TRL21001R
Product Overview
Super 21, Incandescent, Red Rectangular, 1 Bulb, Marker Clearance Light, PC, 2 Screw, Super 21 Plug, Stripped End, 12V, Kit
Features & Benefits
- Available with standard or reflectorized lens
- Suitable for PC requirements on a 45-degree angle with additional reflectors
- Version available for ABS requirements
- Optional gaskets available to improve seal between lamp and body
- Wide range of applications
- Wide variety of lighting products
Specifications
| Color | Red |
| Common Size | 2 in |
| Contents | Lamp, Plug |
| Current Major | 0.17 amp |
| Depth | 1-19/64 in |
| Diamond Shell (Y/N) | Yes |
| Height | 2-1/32 in |
| Housing Color | Red |
| Kit (Y/N) | Yes |
| Length | 6 in |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 1 |
| Plug Side One | Super 21 Plug |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 21 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-024 |
| Volt | 12V |
| Width | 6 in |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 5421001R |
| 14200075 |
| 4192638 |
| 46832 |
| 4683266910 |
| 841321001R |
| 402450 |
| 66910 |
| EC329112 |
| TL21001R |
| HT50603242 |
| TLD21001R |
| MTL21907200R |
| 130851200 |
| 21001R |
| 21001R-TL |
| 3099914 |
| 81065 |
| 810657 |
| 8413-21001R |
| GRT46832 |
| LIT21001R |
| LT2100R |
| TL 21001R |
| TL 21001R |
| TKL21001R |
| 5710703 |
| 12273 |
| 959601000 |
| 15200330 |
| 98297 |
| TRL21001R |
| 1205 |
| 1233 |
| 21001R1 |
| 21001R3 |
| TRU21001R |
| 1400K |
| 155R |
| 156R |
| 2101 |
| 46072GR0 |
| 46082GR0 |
| LT2150R |
| 571LG211R |
