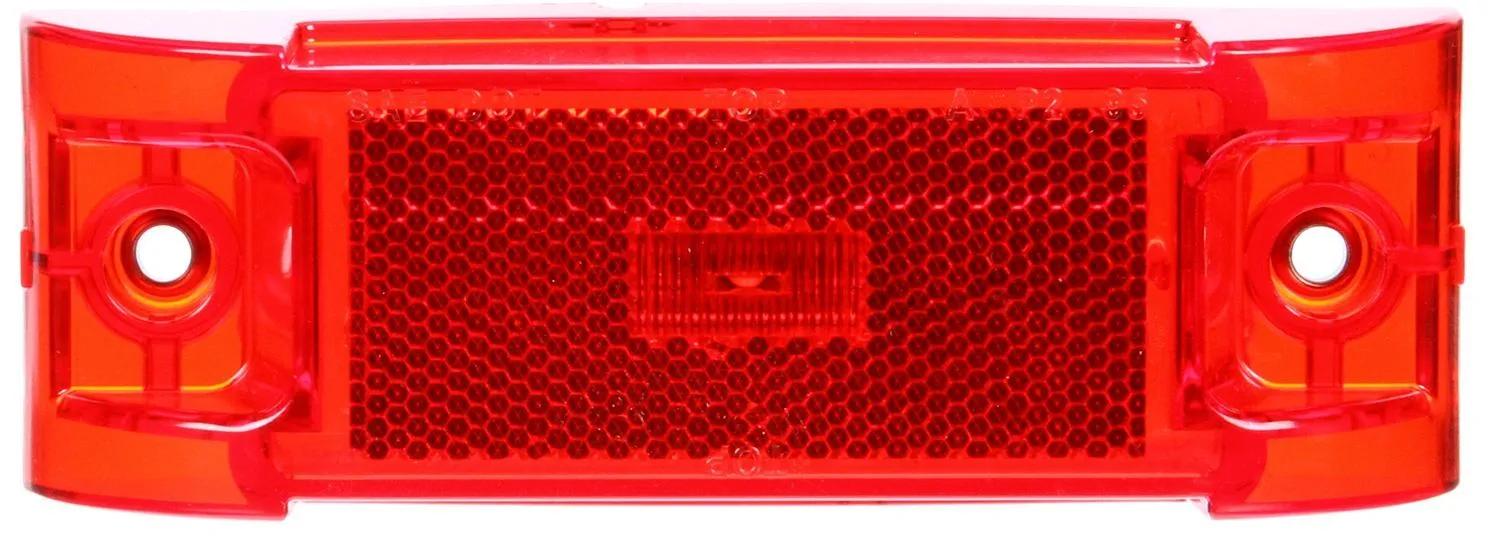

Feu de gabarit, rouge, rectangle
#TRL21056R
Sommaire du produit
Série 21, LED, rouge rectangulaire, 3 diodes, feu de gabarit, PC, 2 vis, réfléchissant, Fit 'N Forget M/C, .180 Bullet Terminal/ring terminal, 24V, Kit
Caractéristiques et avantages
- Innovative optic design allows one PC-rated lamp the ability to function as two
- Draws less current, allowing more power for other vehicle requirements
- Uses standard mounting holes and accessories
Spécifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Plug |
| Current Major | 0.05 amp |
| Depth | 1-19/64 in (3.3 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-1/32 in (5.16 cm) |
| Housing Color | Red |
| Kit (Y/N) | Yes |
| Length | 6 in (15.24 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | Yes |
| Series | 21 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 24V |
| Width | 6 in (15.24 cm) |
| Wire Gauge | 16 ga |
Interchanges et pièces équivalentes:
| 18111R |
| 47352 |
| 4735266910 |
| 670038 |
| HT50601645 |
| TL21056R |
| TLD21056R |
| 21056R |
| 181004 |
| 8413-21056R |
| LIT21056R |
| TL 21056R |
| TL 21056R |
| 66910 |
