2 POINTS

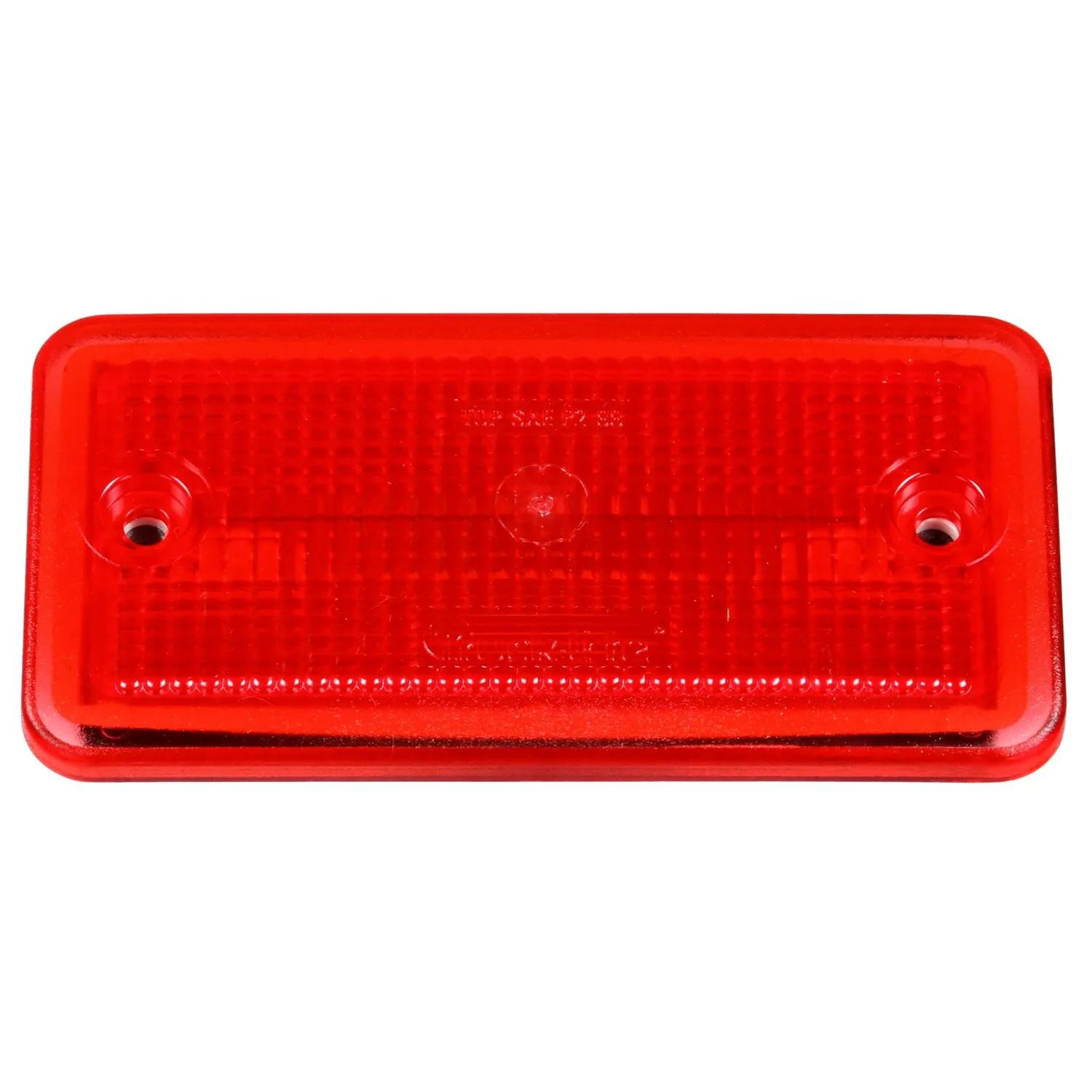

Marker Clearance Light, Red, Rectangular
#TRL25766R
Product Overview
25 Series, Incandescent, Red Rectangular, Marker Clearance Light, P2, 2 Screw, Reflectorized, Socket
Features & Benefits
- Features surface-mount design for replacement on Mack trucks
- Sonically sealed lens and housing
- Mounting gasket included to improve seal of lamp and body
- Recommend Truck-Lite's #94940 plug and #194 bulb
- Not suitable for PC requirements
- Wide variety of lighting products
Specifications
| Color | Red |
| Common Size | 2 in |
| Contents | Marker Clearance Light |
| Depth | 1-19/64 in |
| Diamond Shell (Y/N) | No |
| Height | 2-27/64 in |
| Housing Color | Red |
| Kit (Y/N) | No |
| Lamp Screw Hole Diameter | 13/64 in (0.51 cm) |
| Length | 4-47/64 in |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | Yes |
| Series | 25 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 4-47/64 in |
| Wire Length | 3 in |
Interchanges & Equivalent parts:
| 25766R |
| G3003092 |
| HT50602241 |
| TLD25766R |
| TL25766R |
| 46001282 |
| TL 25766R |
| 8413-25766R |
| LIT25766R |
| TL 25766R |
| 714044 |
| 71404499 |
| 930306 |
| P803424 |
| TRU25766R |
