Marker Clearance Light, Red, Rectangular
#TRL2675
Product Overview

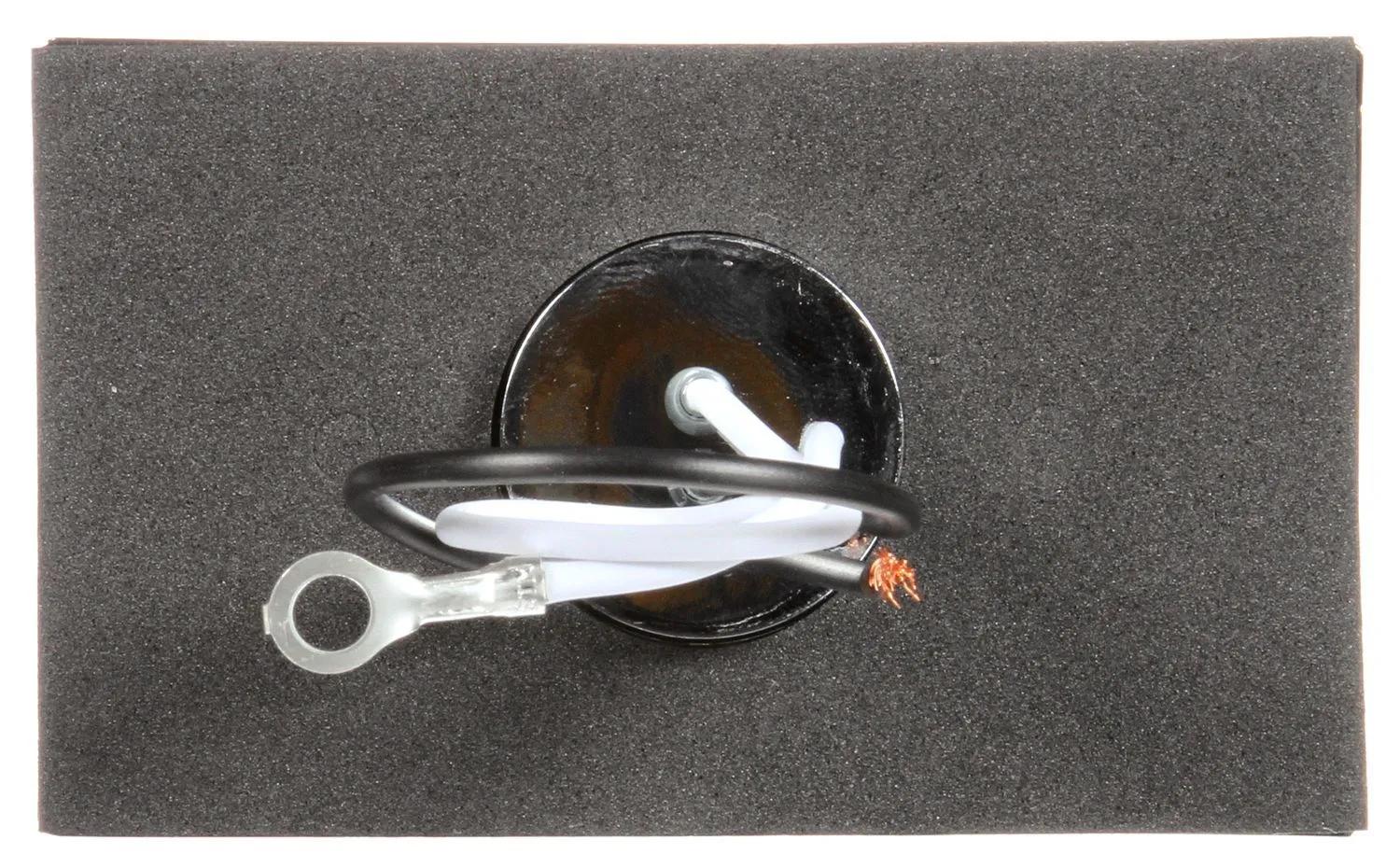

Signal-Stat, LED, Red Rectangular, 2 Diode, Marker Clearance Light, P2, 2 Screw, Hardwired, Ring Terminal/Stripped End, 12V
Features & Benefits
- Features 2 super LEDs for a full pattern
- Flush mount design
- Unique LED array displays full pattern output
Specifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Hard Wired |
| Current Major | 0.06 amp |
| Depth | 1/2 in (1.27 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Red |
| Kit (Y/N) | No |
| Length | 3-3/4 in (9.53 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 3-3/4 in (9.53 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| MCL71RB |
| ML2030RCB |
| 2675 |
| 20321R |
| 2675S1G |
| 8413-2675 |
| LIT2675 |
| MCL-71RB |
| TL 2675 |
| TLD2675 |
| ML2030R-CB |
