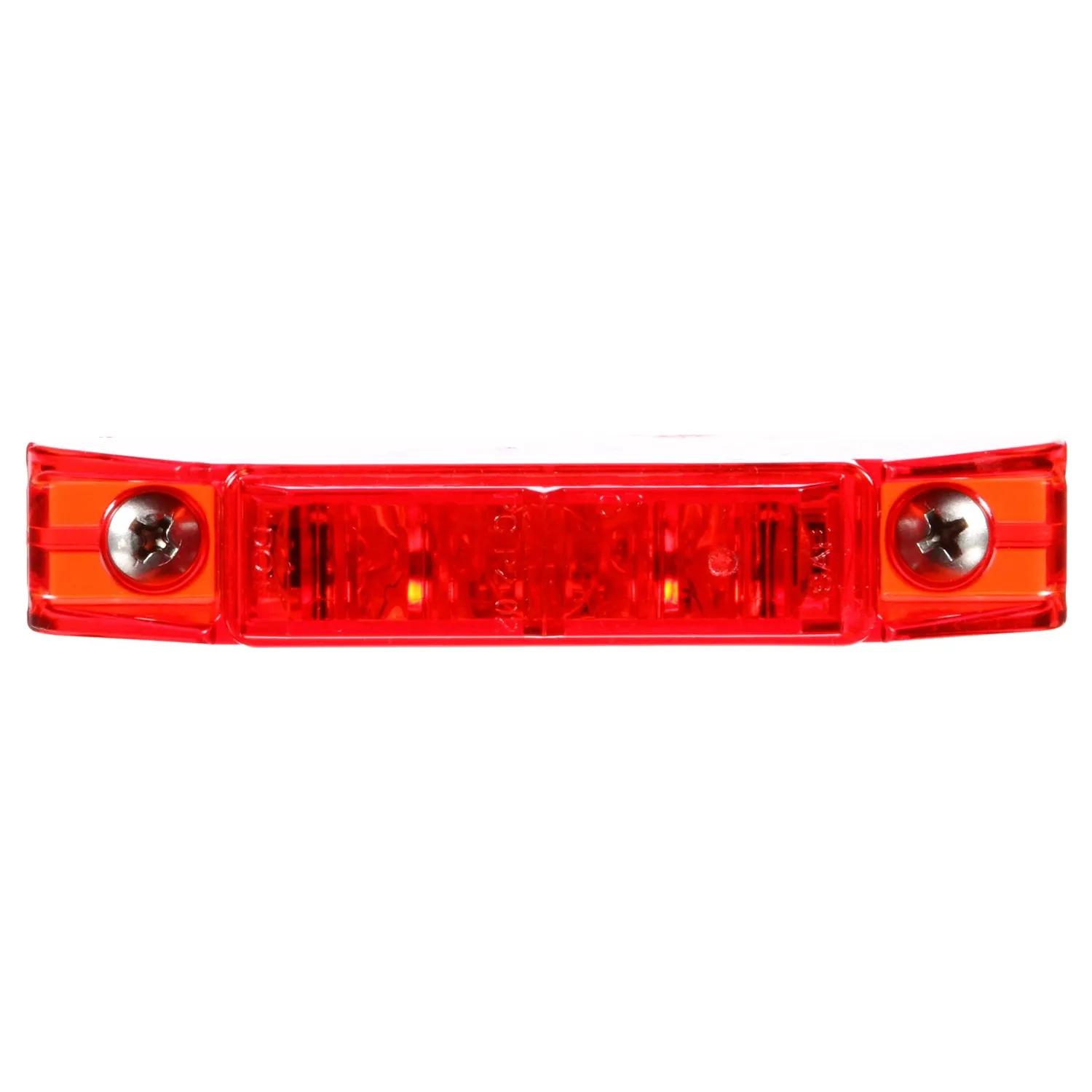

Marker Clearance Light, Red, Rectangular
#TRL35375R
Product Overview
35 Series, LED, Red Rectangular, 5 Diode, Marker Clearance Light, PC, 2 Screw, Fit 'N Forget M/C, 12V
Features & Benefits
- Slim 3/4'' wide design makes lamp perfect solution for narrow rail designs
- SAE PC-rated for combination clearance/marker applications
- Must be mounted horizontally
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.12 amp |
| Depth | 47/64 in (1.85 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-5/32 in (2.95 cm) |
| Housing Color | Red |
| Kit (Y/N) | No |
| Length | 4 in (10.16 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | No |
| Series | 35 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 4 in (10.16 cm) |
Interchanges & Equivalent parts:
| 41312520 |
| 14200661 |
| 1LHT00012 |
| 841335375R |
| 47462 |
| TL35375R |
| TLD35375R |
| S35RR001 |
| 35375R |
| 35275R |
| TRU35375R |
| 8413-35375R |
| LIT35375R |
| S35-RR00-1 |
| TL 35375R |
| TL 35375R |
| 47462GR0 |
| 81109 |
| GRT47462 |
| TKL35375R |
| V167KR |
