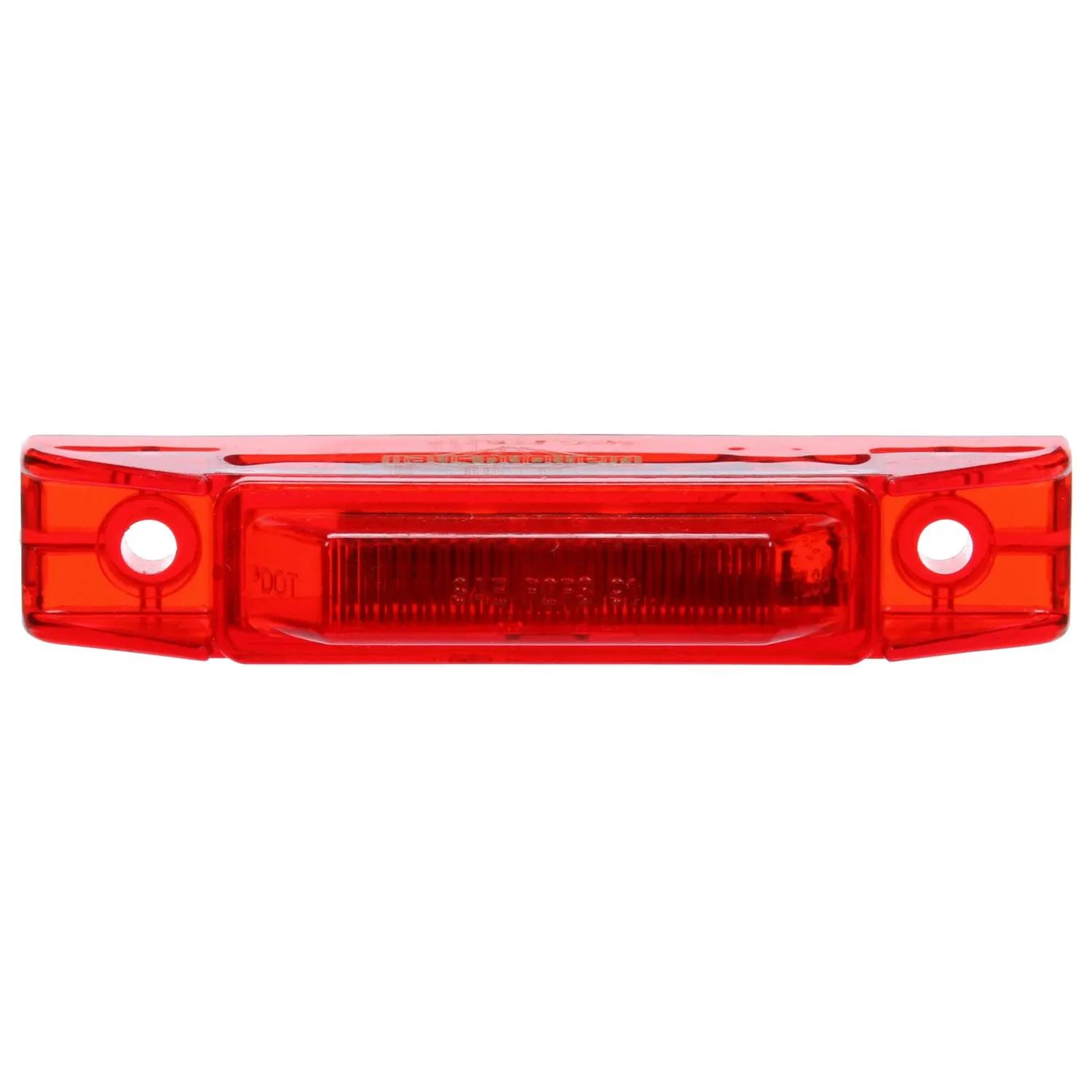

Marker Clearance Light, Red, Rectangular
#TRL35880R
Product Overview
35 Series, LED, Red Rectangular, 1 Diode, Marker Clearance Light, P2, 2 Screw, Diamond Shell, Fit 'N Forget M/C, 12V
Features & Benefits
- Slim 3/4'' wide design makes lamp perfect solution for narrow rail designs
- Must be mounted horizontally
- Optional gasket to improve seal between lamp and body
- Not suitable for PC requirements
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.05 amp |
| Depth | 1-1/4 in (3.18 cm) |
| Diamond Shell (Y/N) | Yes |
| Height | 3/4 in (1.91 cm) |
| Housing Color | Red |
| Kit (Y/N) | No |
| Length | 4 in (10.16 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | No |
| Series | 35 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 4 in (10.16 cm) |
Interchanges & Equivalent parts:
| 41301379 |
| 14200553 |
| 841335880R |
| HT50601722 |
| TL35880R |
| TLD35880R |
| TRL35880R |
| TRU35880R |
| LNB237416 |
| M160R |
| 2111035880 |
| 35880R |
| 8413-35880R |
| LIT35880R |
| TL 35880R |
| TL 35880R |
| 47242GR0 |
| GRT46922 |
| GRT47242 |
| TKL35880R |
| 47242 |
| 46922 |
