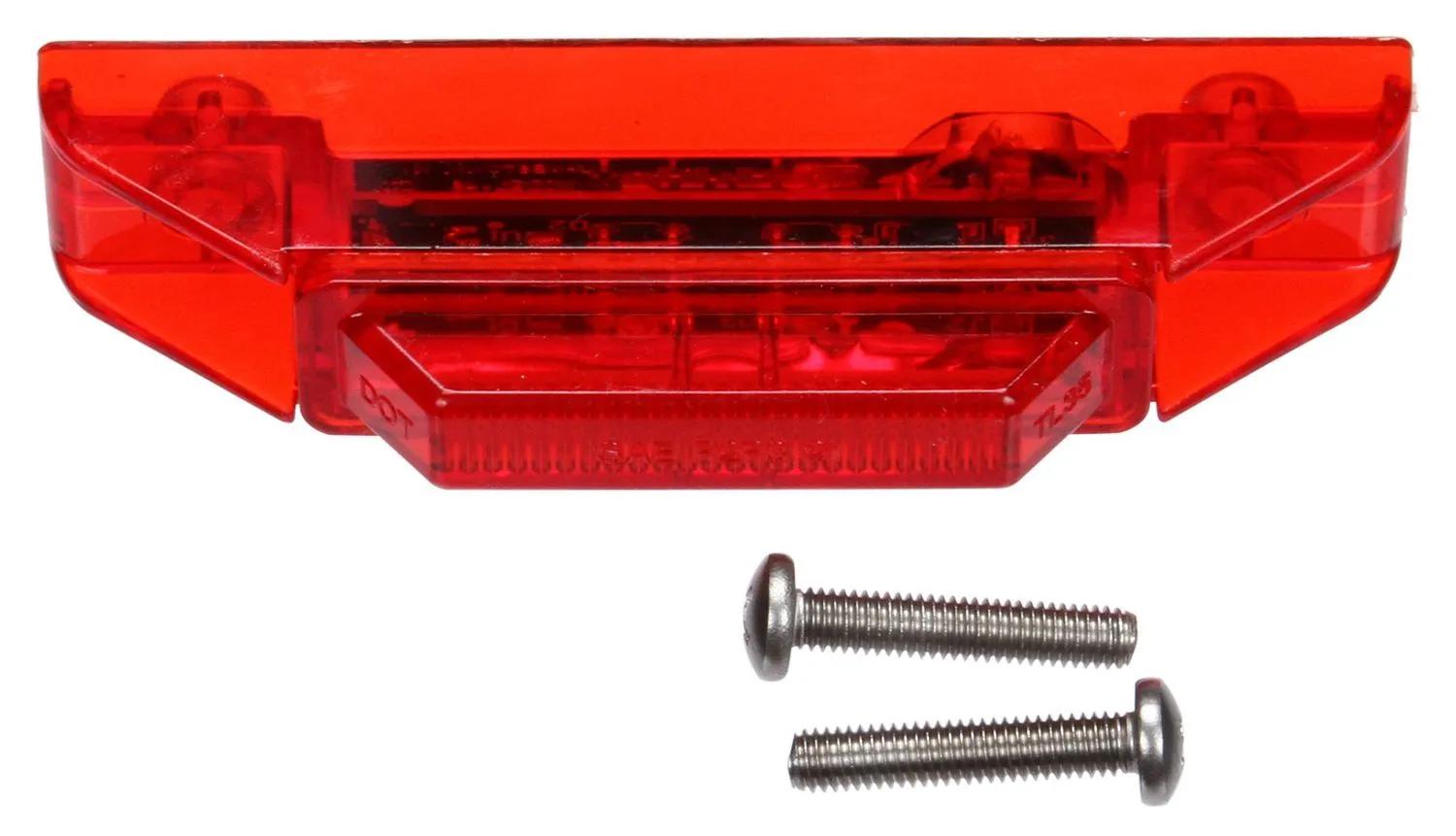

Marker Clearance Light, Red, Rectangular
#TRL35890R
Product Overview
35 Series, LED, Red Rectangular, 2 Diode, Marker Clearance Light, P2, 2 Screw, Fit 'N Forget M/C, 12-24V
Features & Benefits
- Complies with SAE J592 and J594 when mounted horizontally
- Complies with SAE J592 when mounted horizontally between 0 degrees to 34 degrees rollback
- OmniVolt Technology (12 or 24V systems will run without adjustment)
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.05 amp |
| Depth | 1-1/4 in (3.18 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3/4 in (1.91 cm) |
| Housing Color | Red |
| Kit (Y/N) | No |
| Length | 4 in (10.16 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | No |
| Series | 35 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Width | 4 in (10.16 cm) |
Interchanges & Equivalent parts:
| 6220015164925 |
| 3382846 |
| 35890R |
| 66930 |
| 670037 |
| E103721 |
| TL35890R |
| TLD35890R |
| 1309951 |
| 35005R |
| 35205R |
| TRU35890R |
| 35890RTLT |
| 8413-35890R |
| LIT35890R |
| TL 35890R |
| TL 35890R |
