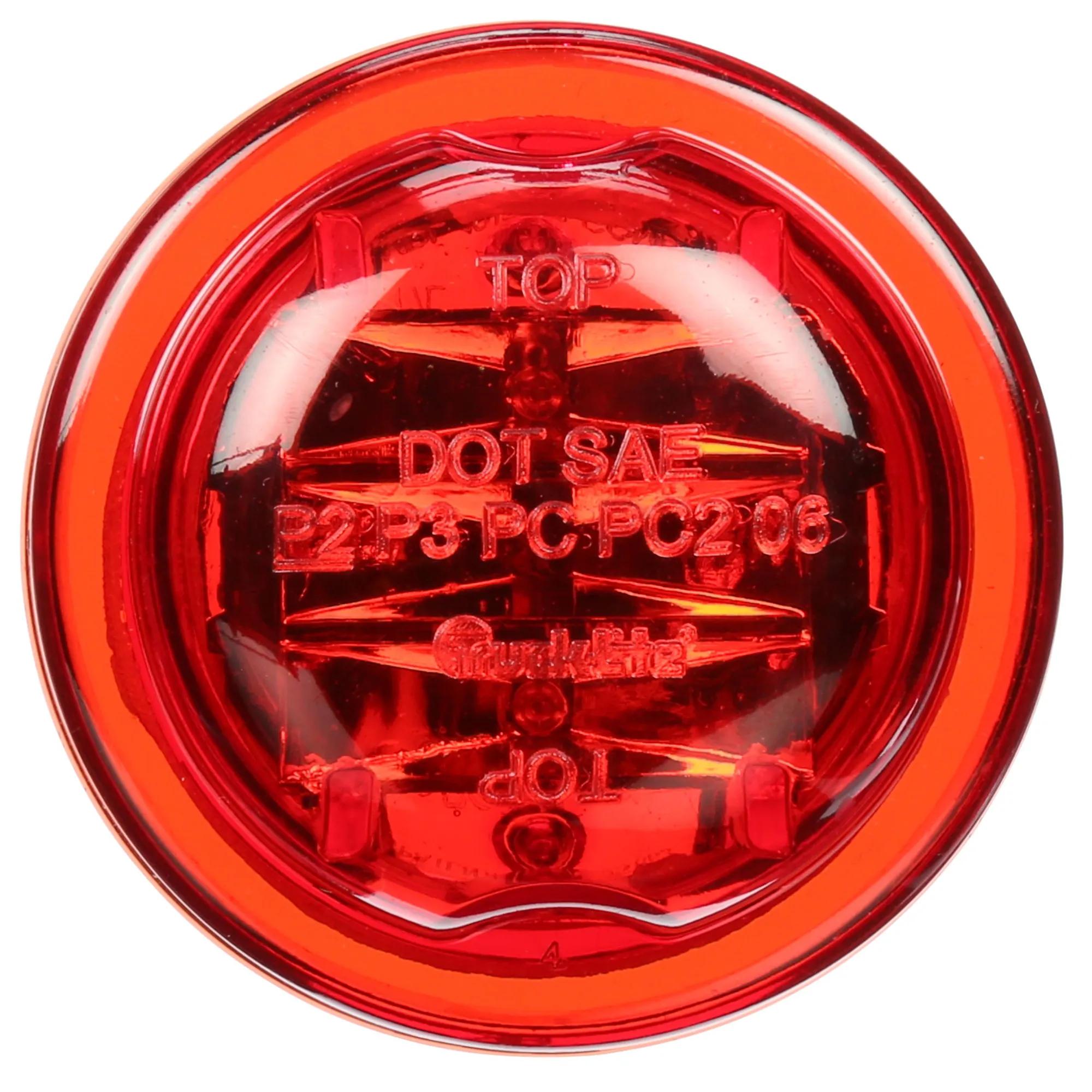

Marker Clearance Light, Red, Round
#TRL10085R
Product Overview
10 Series, High Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, Black PVC Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Grommet, Plug |
| Current Major | 0.1 amp |
| Depth | 61/64 in (2.41 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-35/64 in (6.48 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | PL-10, Female |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-35/64 in (6.48 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 10085R |
| 91400 |
| 47232 |
| 841310085R |
| 66850 |
| TL10085R |
| TLD10085R |
| 10085R1 |
| 47242GR0 |
| 8413-10085R |
| GRT47242 |
| LIT10085R |
| TL 10085R |
| TL 10085R |
| 47232GR0 |
