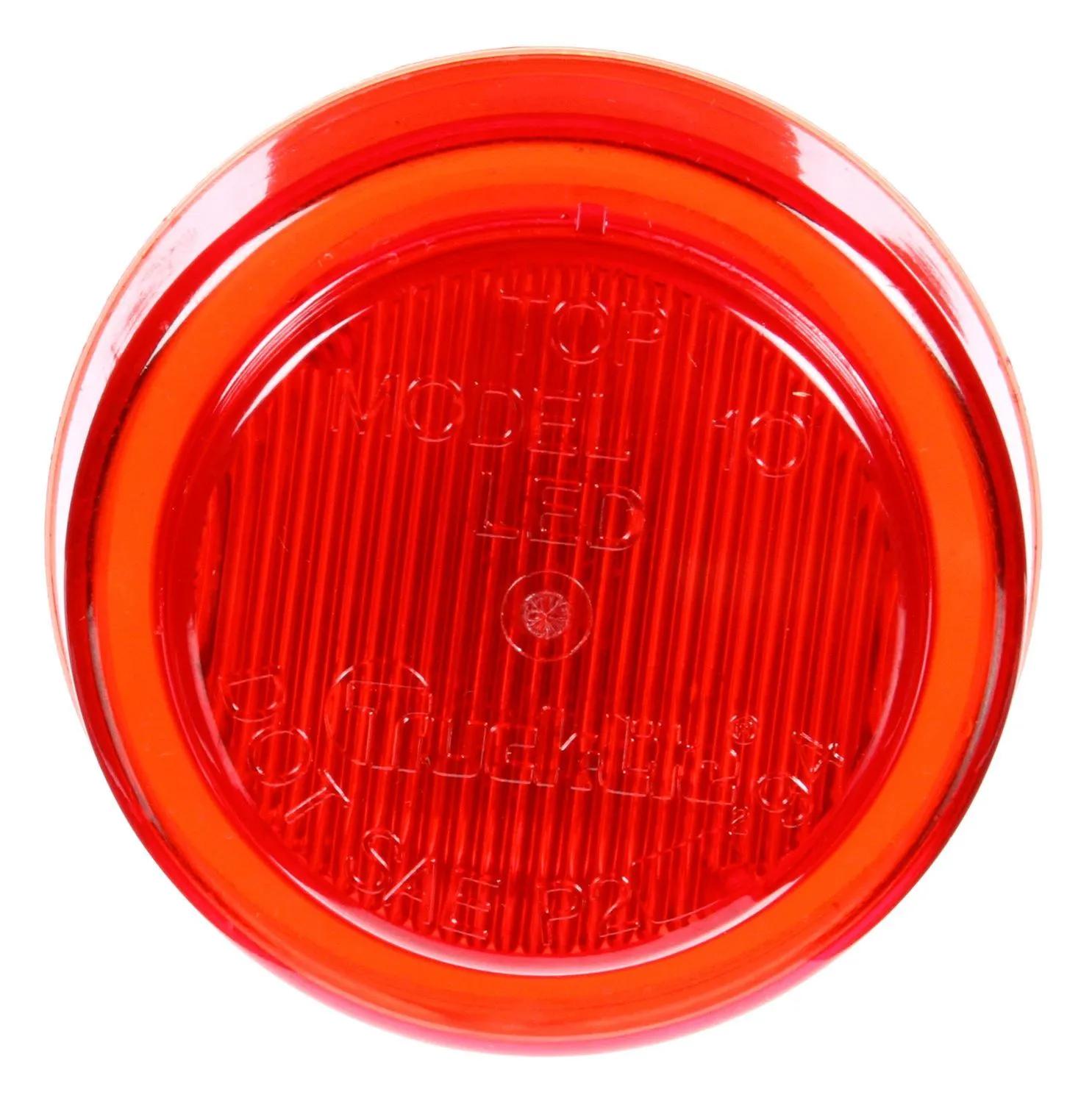

Marker Clearance Light, Red, Round
#TRL10050R
Product Overview

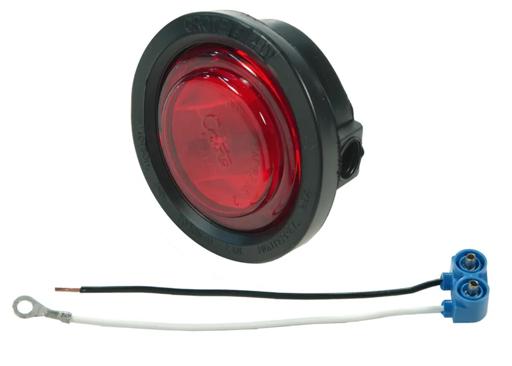

10 Series, LED, Red Round, 2 Diode, Marker Clearance Light, P2, Black Polycarbonate Grommet Mount, Fit 'N Forget M/C, Female PL-10, 12V, Kit
Features & Benefits
- Less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
- Electronics completely sealed in epoxy to resist corrosion and moisture
Specifications
| Amps | 0.06 amp |
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Grommet, Plug |
| Current Major | 0.03 amp |
| Depth | 1-13/32 in (3.58 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2 |
| Height | 3-1/2 in (8.89 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | PL-10, Female |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 3-1/2 in (8.89 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 10050R3 |
| 47472 |
| TL10050R3 |
| HT50601575 |
| TLD10050R3 |
| TRU10050R |
| LED8454RX |
| V162KR |
| 10050R-TL |
| 1015K |
| 17071R |
| 66850GR0 |
| 8413-10050R |
| 9511-88-3 |
| LIT10050R |
| TKL10050R |
| TL 10050R |
| TL 10050R |
| TL-10050R |
| TL10050R |
| TLD10050R |
| TLT 10050R |
| 47472GR0 |
| GRT47122 |
| GRT66850 |
| KTL2500-4R |
| HLC1093359 |
