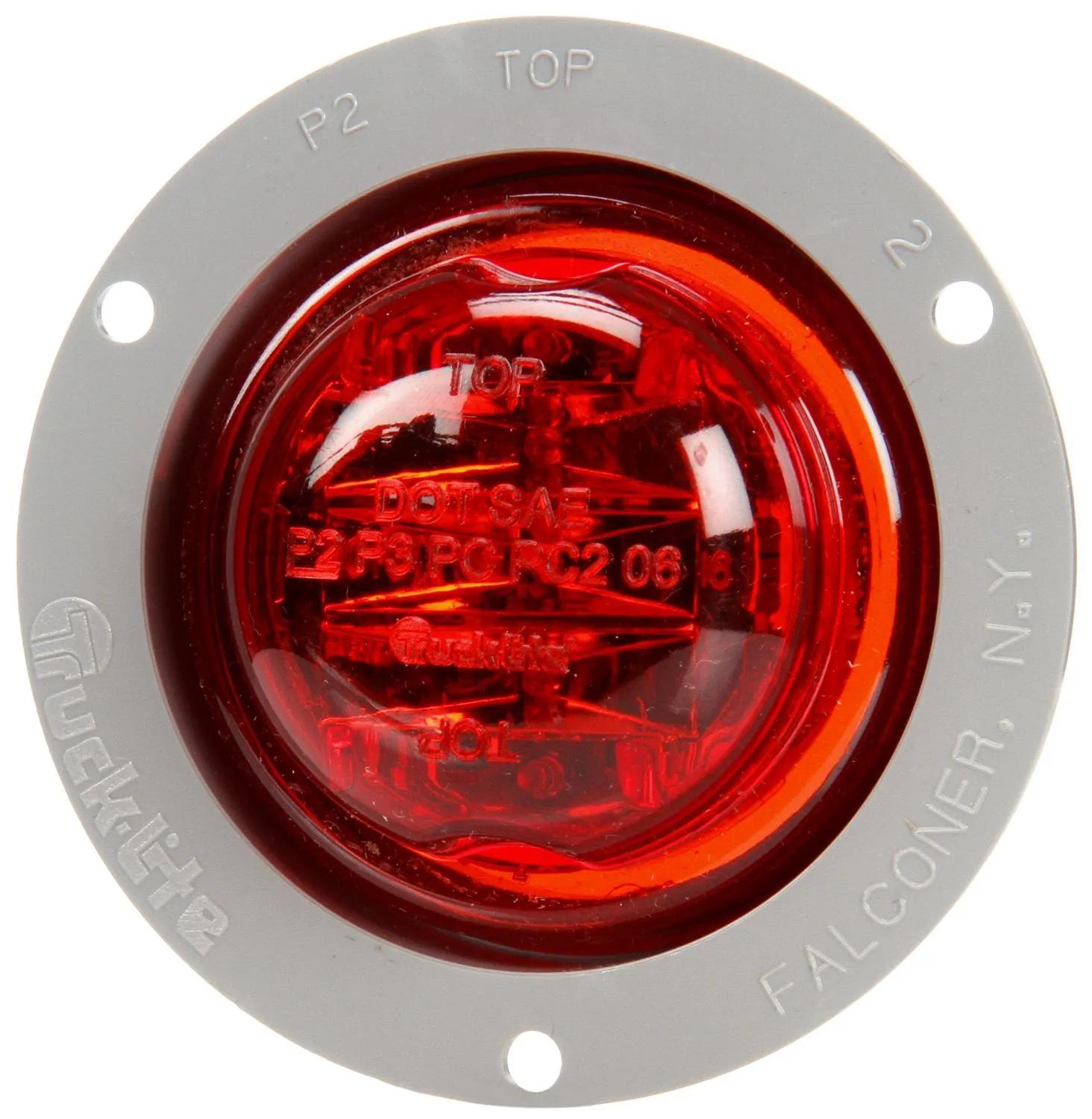

Marker Clearance Light, Red, Round
#TRL10079R
Product Overview
10 Series, High Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, Gray Polycarbonate Flange Mount, PL-10, .180 Bullet Terminal/Ring Terminal, 12V, Kit
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Flange, Plug |
| Current Major | 0.1 amp |
| Depth | 61/64 in (2.41 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-35/64 in (6.48 cm) |
| Housing Color | Gray |
| Kit (Y/N) | Yes |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-35/64 in (6.48 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 41312510 |
| 10079R |
| 841310079R |
| 66840 |
| F580036 |
| TL10079R |
| TLD10079R |
| TRU10079R |
| 8413-10079R |
| LIT10079R |
| TL 10079R |
| TL 10079R |
| TLT 10079R |
| 47372GR0 |
| TKL10079R |
| 47372 |
