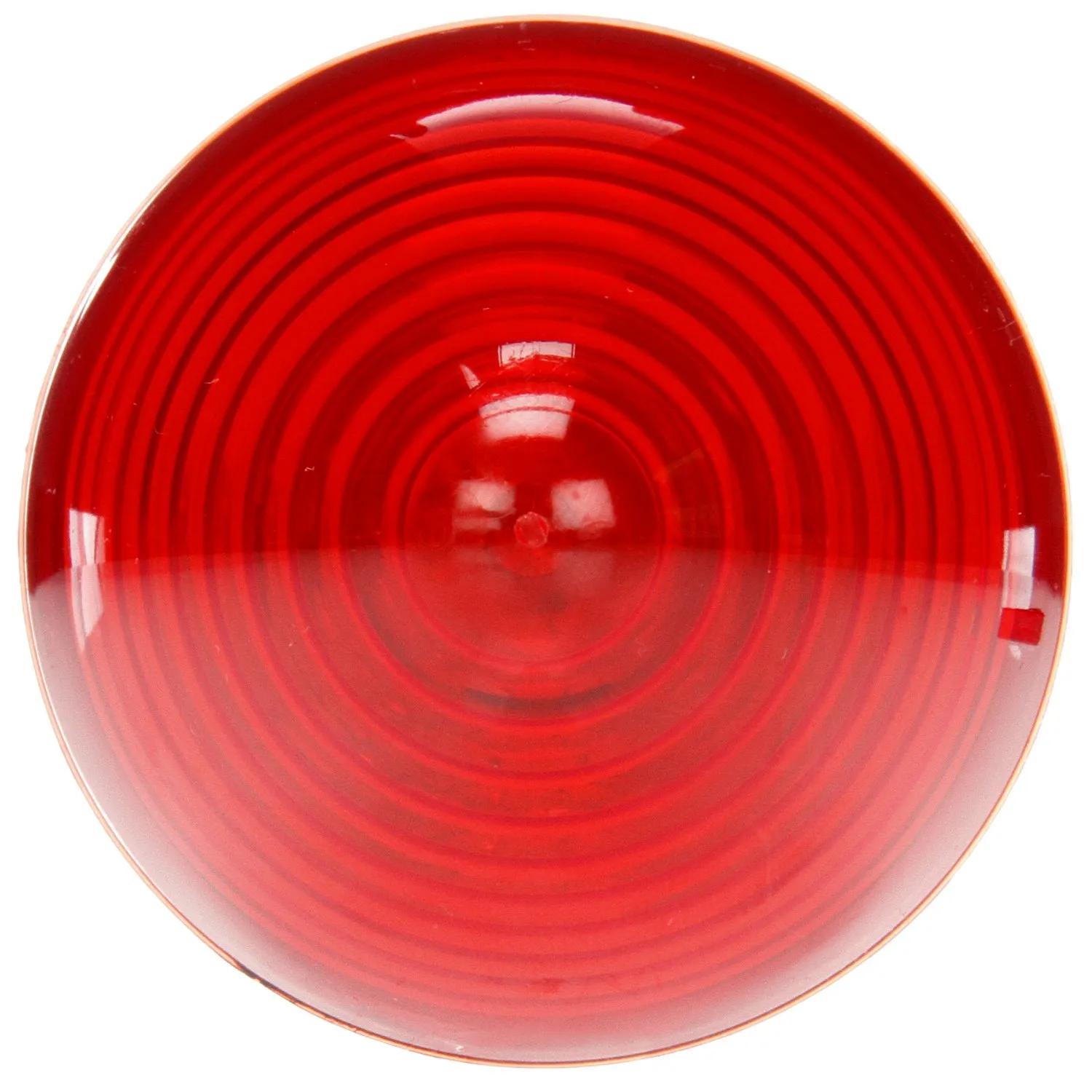

Marker Clearance Light, Red, Round
#TRL10203R
Product Overview
10 Series, Incandescent, Red Beehive, 1 Bulb, Marker Clearance Light, PC, PL-10, 12V
Features & Benefits
- Durable design withstands harsh weather conditions
- Compact size allows for versatile mounting options
- Beehive lens design enhances visibility for cab marker use
- Sealed incandescent construction provides reliable illumination
- Easy installation for seamless integration into vehicle systems
- Clearance and marker lamp ensures compliance with DOT regulations
Specifications
| Couleur | Rouge |
| Taille commune | 2-1/2 in (6.35 cm) |
| Contient | Lampe |
| Major actuel | 0,33 amp |
| Profondeur | 2-9/32 in (5.79 cm) |
| Coquille de diamant (O/N) | Non |
| Hauteur | 2-35/64 in (6.48 cm) |
| Trousse (O/N) | No |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Montage à oeillet |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | Non |
| Series | 10 Series |
| Shape | Ruche |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 053-006-009 |
| Volt | 12V |
| Width | 2-35/64 in (6.48 cm) |
Interchanges & Equivalent parts:
| 41312579 |
| 14200555 |
| 10203R |
| 120020 |
| 841310203R |
| 703050305 |
| MC27RB |
| T10203R |
| TKL10203R |
| TL10203R |
| HT50602023 |
| TLD10203R |
| TRL10203R |
| TRU10203R |
| LT13R |
| 10203R-TL |
| 3099900 |
| 81268 |
| 8413-10203R |
| LIT10203R |
| MC-27RB |
| TL 10203R |
| TL 10203R |
| TL-10203R |
| 45322GR0 |
| PT1300R |
| G280 |
| PA10079 |
| 812680 |
