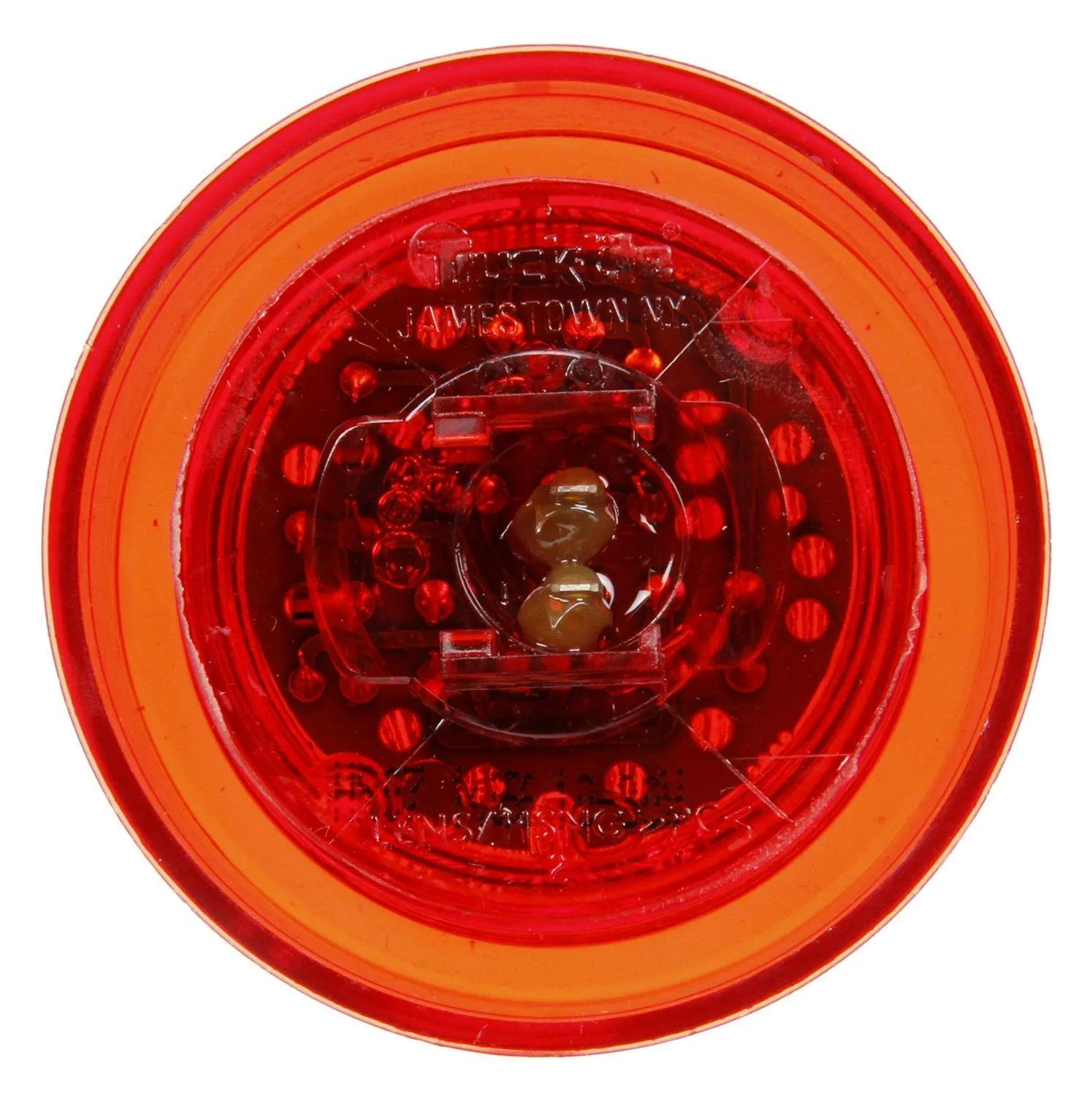

Marker Clearance Light, Red, Round
#TRL10256R
Product Overview
10 Series, LED, Red Round, 3 Diode, Marker Clearance Light, P2, Fit 'N Forget M/C, 12-24V
Features & Benefits
- P2/P3 Rated marker & clearance lamps are compliant for 90 degree
- Low-profile design to reduce damage from being hit or knocked off.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.05 amp |
| Depth | 1-13/32 in (3.58 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-35/64 in (6.48 cm) |
| Kit (Y/N) | No |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Width | 2-35/64 in (6.48 cm) |
Interchanges & Equivalent parts:
| 10256R |
| 391257 |
| A94890074 |
| 841310256R |
| 6703650 |
| 7581100027 |
| TL10256R |
| TLD10256R |
| 8413-10256R |
| LIT10256R |
| M10260R |
| TKL10256R |
| TL 10256R |
| TL 10256R |
