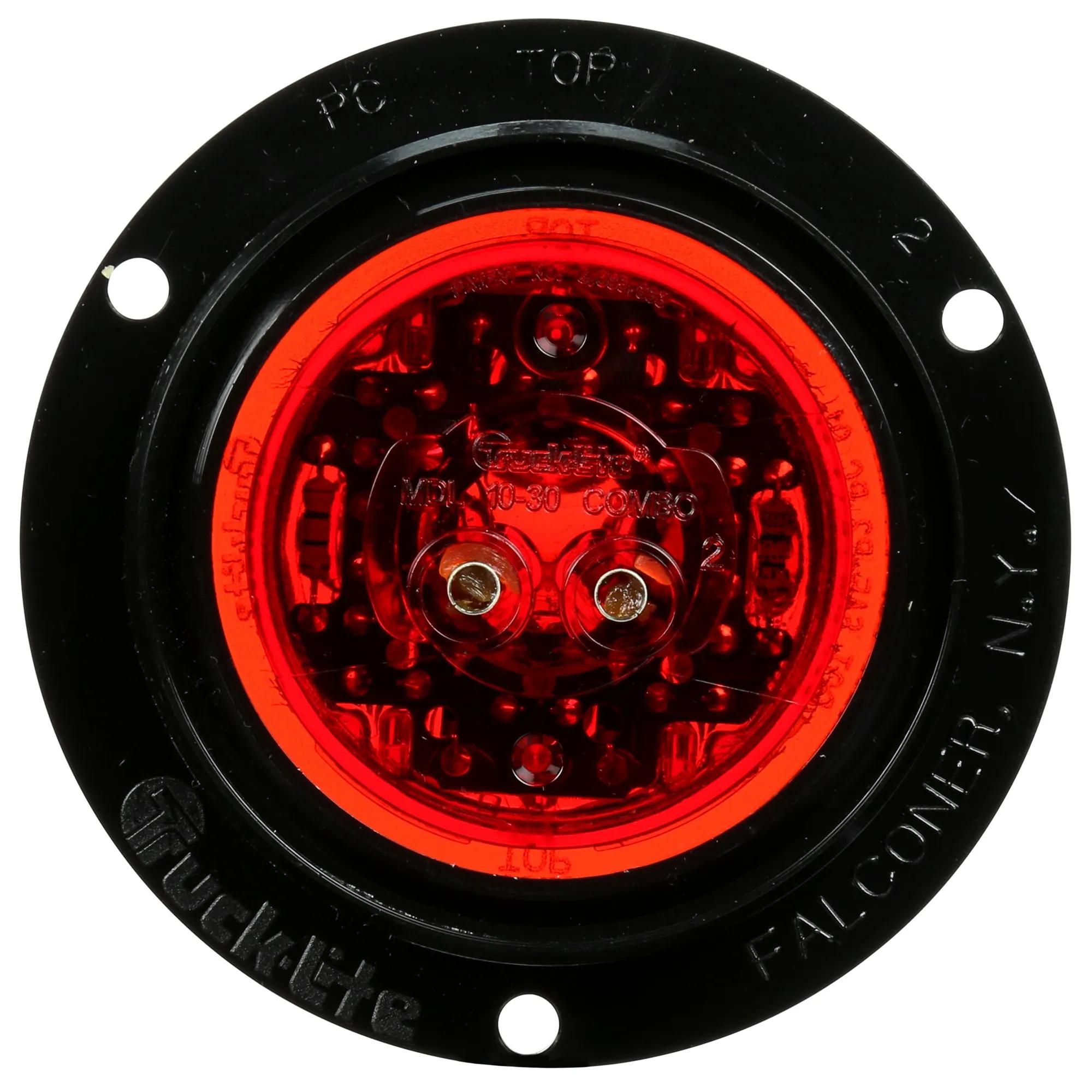

Marker Clearance Light, Red, Round
#TRL10288R
Product Overview
10 Series, Low Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, Black Polycarbonate Flush Mount, PL-10, .180 Bullet Terminal/Ring Terminal, 12V, Kit
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- Low-Profile design improves clearance and reduces risk of getting knocked off. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology protecting against damage from shock and vibration.
Specifications
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Black Flange |
| Current Major | 0.1 amp |
| Depth | 1-1/16 in (2.69 cm) |
| Diamond Shell (Y/N) | No |
| Height | 3-1/2 in (8.89 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flush Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 3-1/2 in (8.89 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 41313730 |
| 46142 |
| 841310288R |
| 47422 |
| 66840 |
| TL10288R |
| TLD10288R |
| M163FR |
| 10288R |
| 10288RTLT |
| 46142GR0 |
| 8413-10288R |
| LIT10288R |
| TL 10288R |
| TL 10288R |
| GRT46142 |
