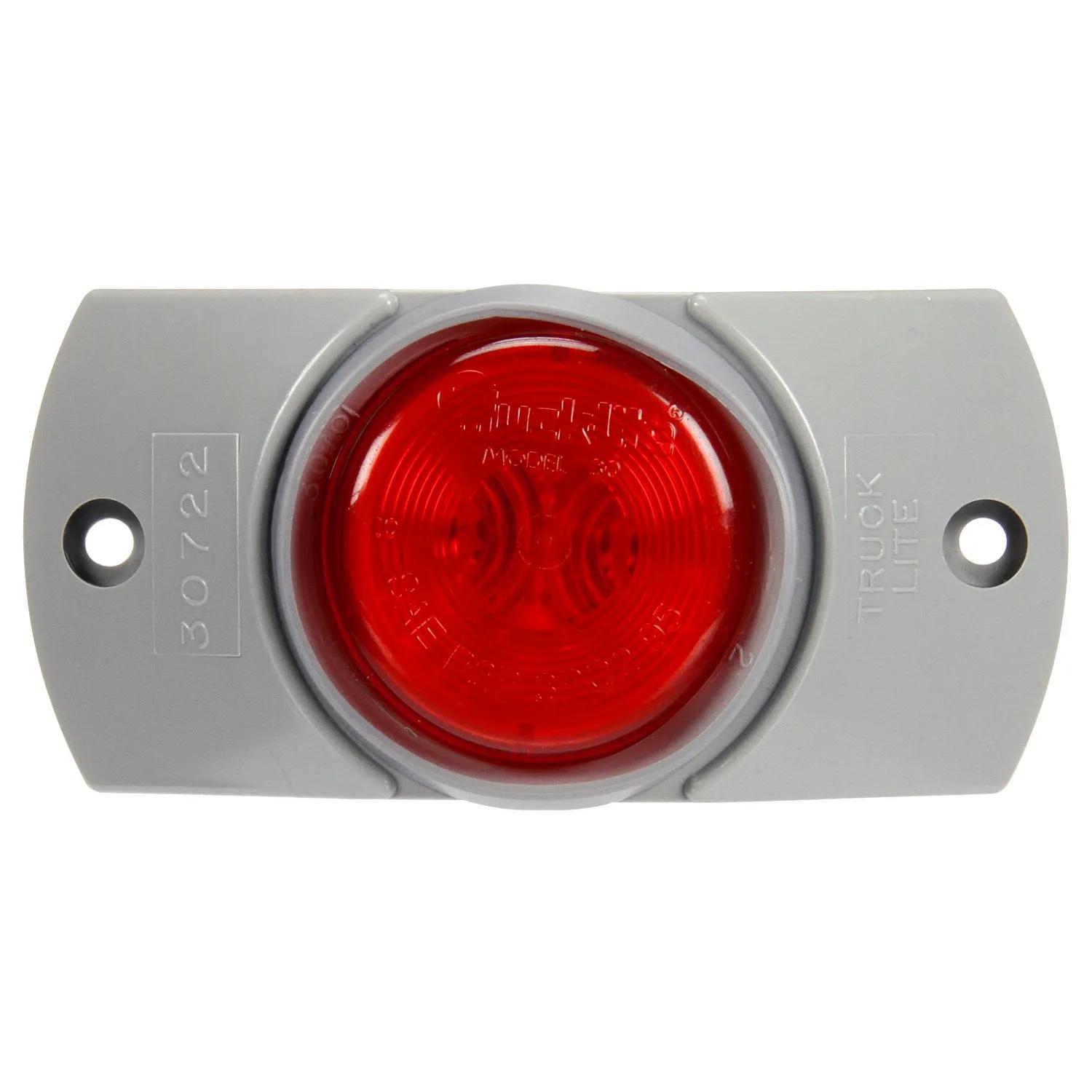

Feu de gabarit, rouge, rond
#TRL30504R
Sommaire du produit
Série 30, incandescent, rond rouge, 1 ampoule, feu de gabarit, PC, montage sur support en PVC gris, PL-10, cosse à anneau/extrémité dénudée, 12 V, trousse
Caractéristiques et avantages
- High-impact plastic deflector mount
- Allows quick and easy surface mounting of 2"
- diameter lamps
- Meets PC requirements on a 45-degree angle using standard combination lamps
- Not recommended for LED applications
Spécifications
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Bracket, Plug |
| Current Major | 0.33 amp |
| Depth | 1 in (2.54 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-11/32 in (5.94 cm) |
| Housing Color | Gray |
| Kit (Y/N) | Yes |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | PVC |
| Mount Type | Deflector Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 4-51/64 in (12.19 cm) |
| Wire Gauge | 16 ga |
Interchanges et pièces équivalentes:
| 4506243690 |
| 30504R |
| 45822 |
| 465545 |
| 964160 |
| 841330504R |
| HT50602449 |
| TL30504R |
| TLD30504R |
| 30504R1 |
| TRU30504R |
| 800-250201R |
| 8413-30504R |
| LIT30504R |
| TL 30504R |
| TL 30504R |
| TLT 30504R |
| 45062GR0 |
| 45562 |
| GRT43690 |
| 43690 |
