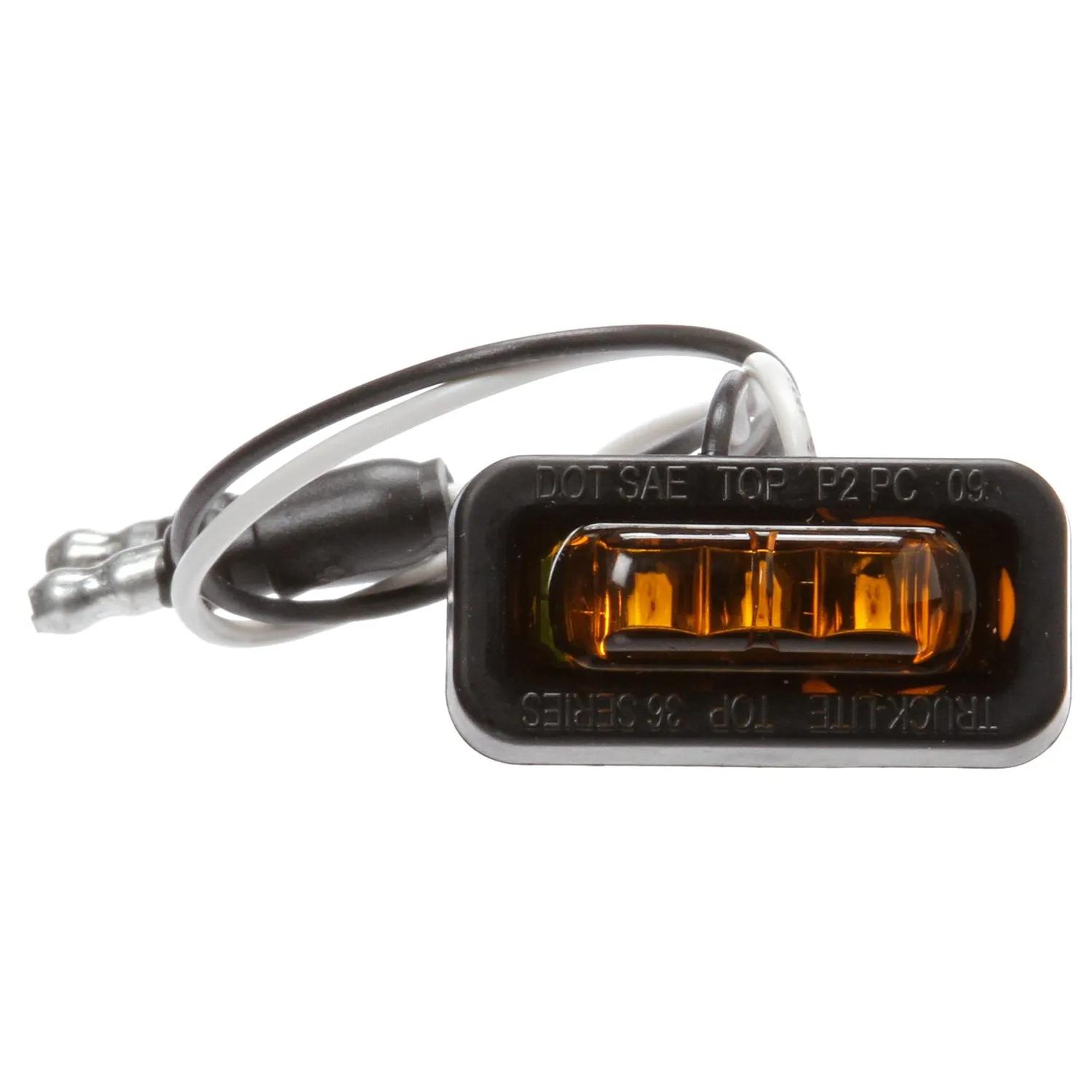

Marker Clearance Light, Yellow, Rectangular
#TRL36105Y
Product Overview
36 Series, Flex-Lite Side Exit, LED, Yellow Rectangular, 3 Diode, Marker Clearance Light, PC, Adhesive Mount, Hardwired, .180 Bullet Terminal, 12V
Features & Benefits
- Provides a clearance/marker solution that requires no mounting brackets or installation screws
- Lamps adhere directly to application surface through the use of heavy-duty adhesive backing
- Easy-to-install peel-off liner
- Hardwired lamp design is easily retrofit able
- Rear exit wire version requires a 3/8mounting hole, and self-seals hole upon installation
- Side mount options can be mounted without any mounting holes
- LEDs draw much less current, allowing more power for other vehicle requirements
- A PC rated legal lamp allows for one lamp instead of two to meet the 180 degrees
Specifications
| Color | Amber |
| Common Size | 1 in (2.54 cm) |
| Contents | Lamp, Non-Winged, Side Exit Wires |
| Current Major | 0.05 amp |
| Depth | 29/64 in (1.14 cm) |
| Diamond Shell (Y/N) | No |
| Height | 47/64 in (1.85 cm) |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 3/4 in (1.91 cm) |
| Lens Material | Polycarbonate |
| Material | PVC |
| Mount Type | Adhesive Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 36 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 1-17/32 in (3.89 cm) |
| Wire Gauge | 20 ga |
| Wire Length | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| 36105Y |
| 36105YTLT |
| TLD36105Y |
