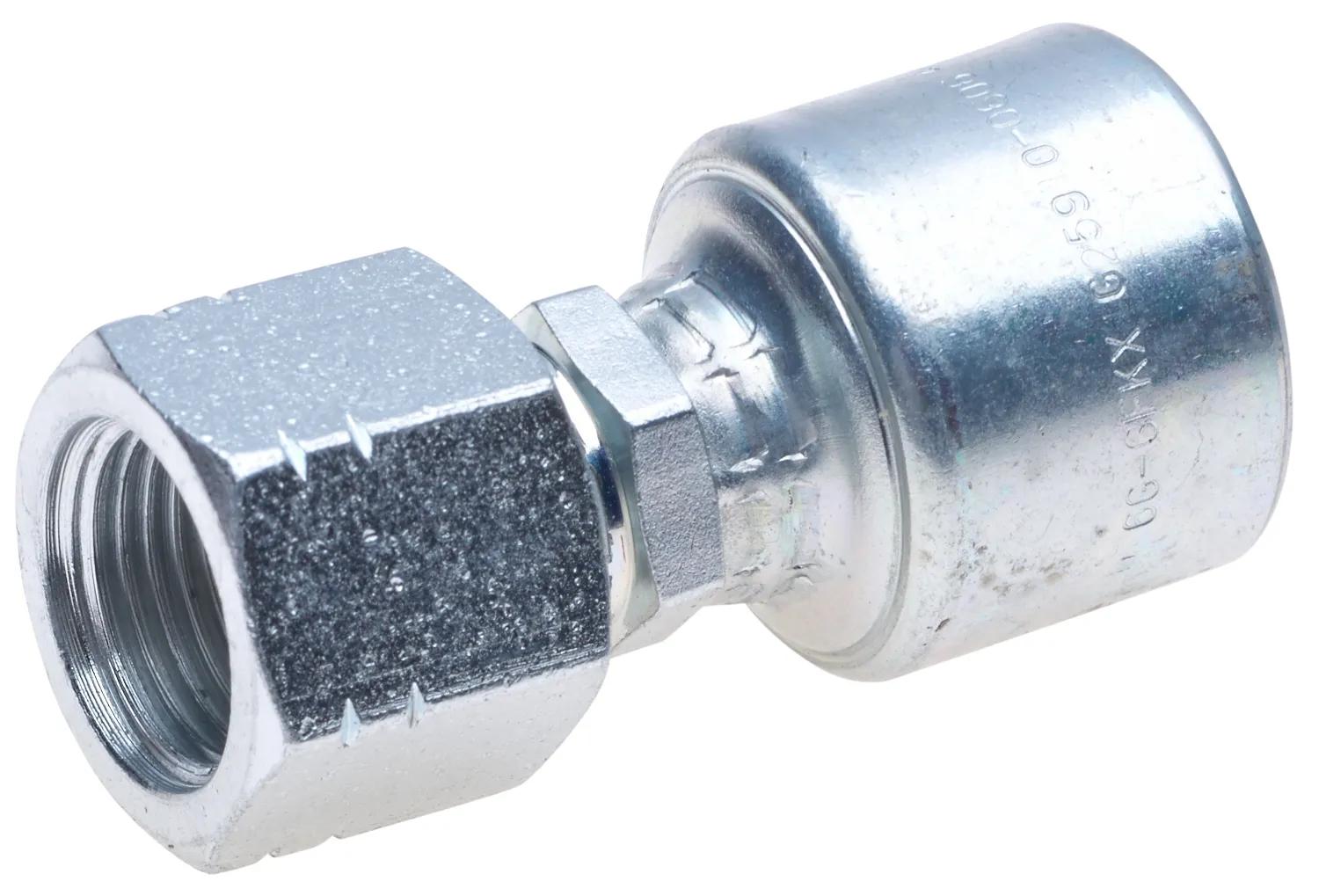

MegaCrimp Female Komatsu Style Japanese Swivel, 6G-6FKX
#GATG25910-0606
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- These Female Swivels Have Been Marked w/ 2 Small Notches on the Hex to Identify Them as the Komatsu Style.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Female Komatsu Style Japanese Metric Swivel |
| Cut Off (in) – C | 1-27/64 in (3.61 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 6G-6FKX |
| Inside Diameter | 3/8 in (0.97 cm) |
| Length | 2-33/64 in (6.4 cm) |
| Note | These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style. |
| Nut Hex (in) – H2 | 15/16 in (2.39 cm) |
| OEM Part # | G25910-0606 |
| Product Number | 710003645 |
| Seal Type | Mated Angle |
| Siège | Standard |
| Angle d'assise (degré) | 30 deg |
| Diamètre intérieur du manchon | 43/64 in (1.7 cm) |
| Tige hexagonale (po) | 43/64 in (1.7 cm) |
| Pivot | Yes |
| Filetage | M18 x 1.5 |
| Type de filetage | Metric |
| Type | MegaCrimp Female Komatsu Style Japanese Metric Swivel |
Interchanges & Equivalent parts:
| 145450618 |
| GYH14545-0618 |
| 1A6KF6 |
| G25910-0606 |
| 710003645 |
