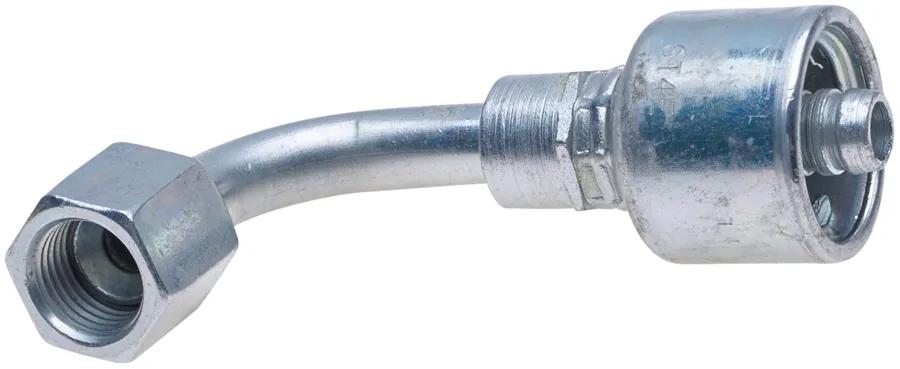

MegaCrimp Female JIC 37 Flare Swivel, 90*, 8G-10FJX90M
#GATG25180-0810
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
| Cut Off (in) – C | 2-13/64 in (5.59 cm) |
| Drop (in.) | 1-27/32 in (4.67 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 8G-10FJX90M |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-43/64 in (9.32 cm) |
| Nut Hex (in) – H2 | 1-1/16 in (2.69 cm) |
| Seal Type | Mated Angle |
| Seat | Standard |
| Seat Angle (degree) | 37 deg |
| Swivel | Yes |
| Type | MegaCrimp Female JIC 37 Flare Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 144250810 |
| GYHB2-JCFX90-0810 |
| GYH14425-0810 |
| B2JCFX900810 |
| B2-JCFX90-0810 |
| 08U670 |
| G251800810 |
| SC639810 |
| G25180-0810 |
| 710347335 |
