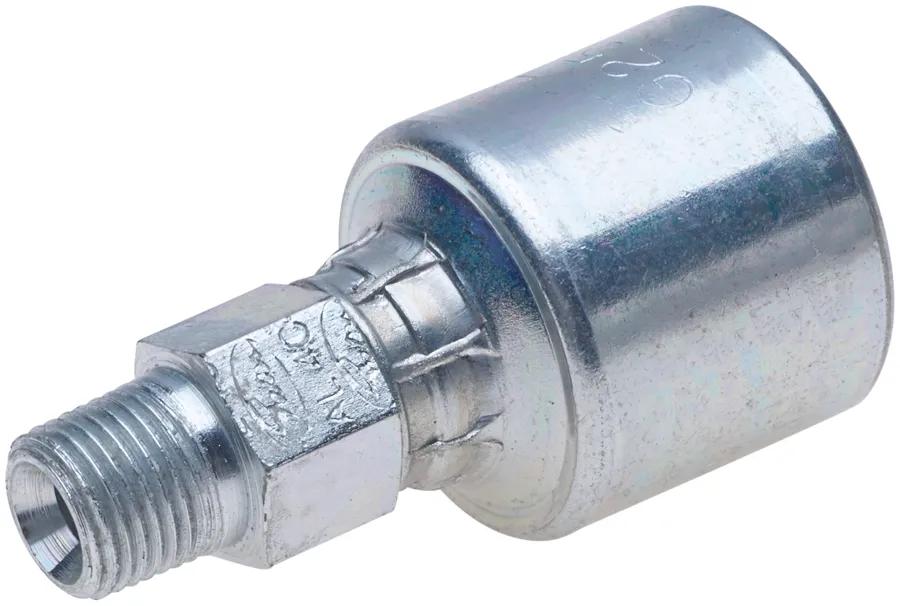

MegaCrimp Male Pipe (NPTF, 30* Cone Seat), 6G-8MP
#GATG25100-0608
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Male Pipe (NPTF - 30 Cone Seat) |
| Cut Off (in) – C | 1-27/64 in (3.61 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 6G-8MP |
| Inside Diameter | 3/8 in (0.97 cm) |
| Length | 2-33/64 in (6.4 cm) |
| Material | Steel |
| OEM Part # | G25100-0608 |
| Product Number | 710010095 |
| Seal Type | Thread Interference/Mated Angle |
| Seat | Inverted |
| Seat Angle (degree) | 30 deg |
| Stem Hex (in.) | 7/8 in (2.24 cm) |
| Swivel | No |
| Type | MegaCrimp Male Pipe (NPTF - 30 deg Cone Seat) |
Interchanges & Equivalent parts:
| 13615-0608 |
| 136150608 |
| 146150608 |
| B2NPM0608 |
| GYHB2-NPM-0608 |
| GYH14615-0608 |
| GYH13615-0608 |
| B2-NPM-0608 |
| 06U108 |
| 1014368 |
| G251000608 |

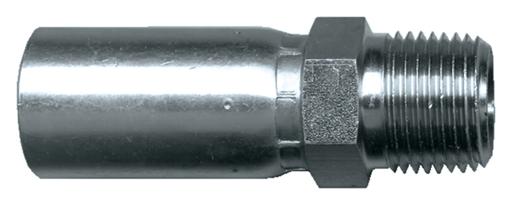

| SC6256D |
| 1AA8MP6 |
| FJ9121-0806S |
| G25100-0608 |
| 710010095 |
