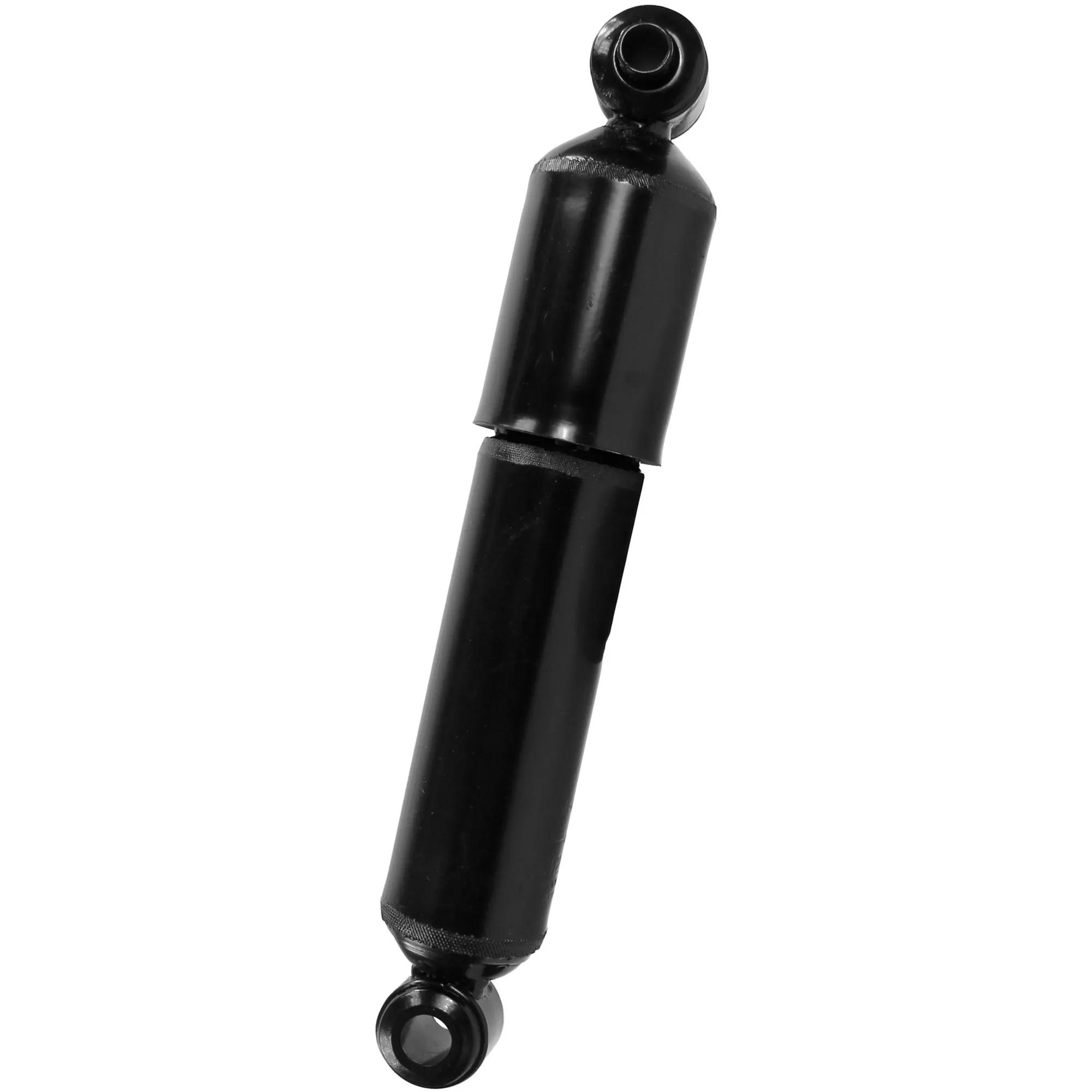

Monroe Cab Shock Absorber, Gas Charged, Comp 9 in, Ext 12-3/8 in, Stroke 3-3/8 in, 1-3/8 in Body Dia
#MON66121
Product Overview
Designed for heavy-duty cab suspensions, the Gas Charged Monroe® Magnum® Cab shock isolates the cab from the frame for a smoother, more comfortable ride. Utilizes velocity-sensitive valving to deliver a new standard in driver comfort (most applications).
Features & Benefits
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Urethane Rebound Bumper (When Required)
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Exclusive Groove Tube Technology (On Most Applications)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 1-3/8 in |
| Compressed Length | 9 in |
| Extended Length | 12-3/8 in |
| Lower Mount | Loop Bushing Mount - 5/8 in Bushing ID X 1-5/16 in Bushing OAL |
| Stroke Inch | 3-3/8 in |
| Type | Cab Shock |
| Upper Mount | LS84 |
| Includes | Urethane Rebound Bumper |
| Shock Type | Gas Charged |
| Travel Length | 2.11 in |
| Manufacturer Part Number | 66121 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 1841762001 |
| 66121 |
| M66121 |
| 1860765000 |
| 659125 |
