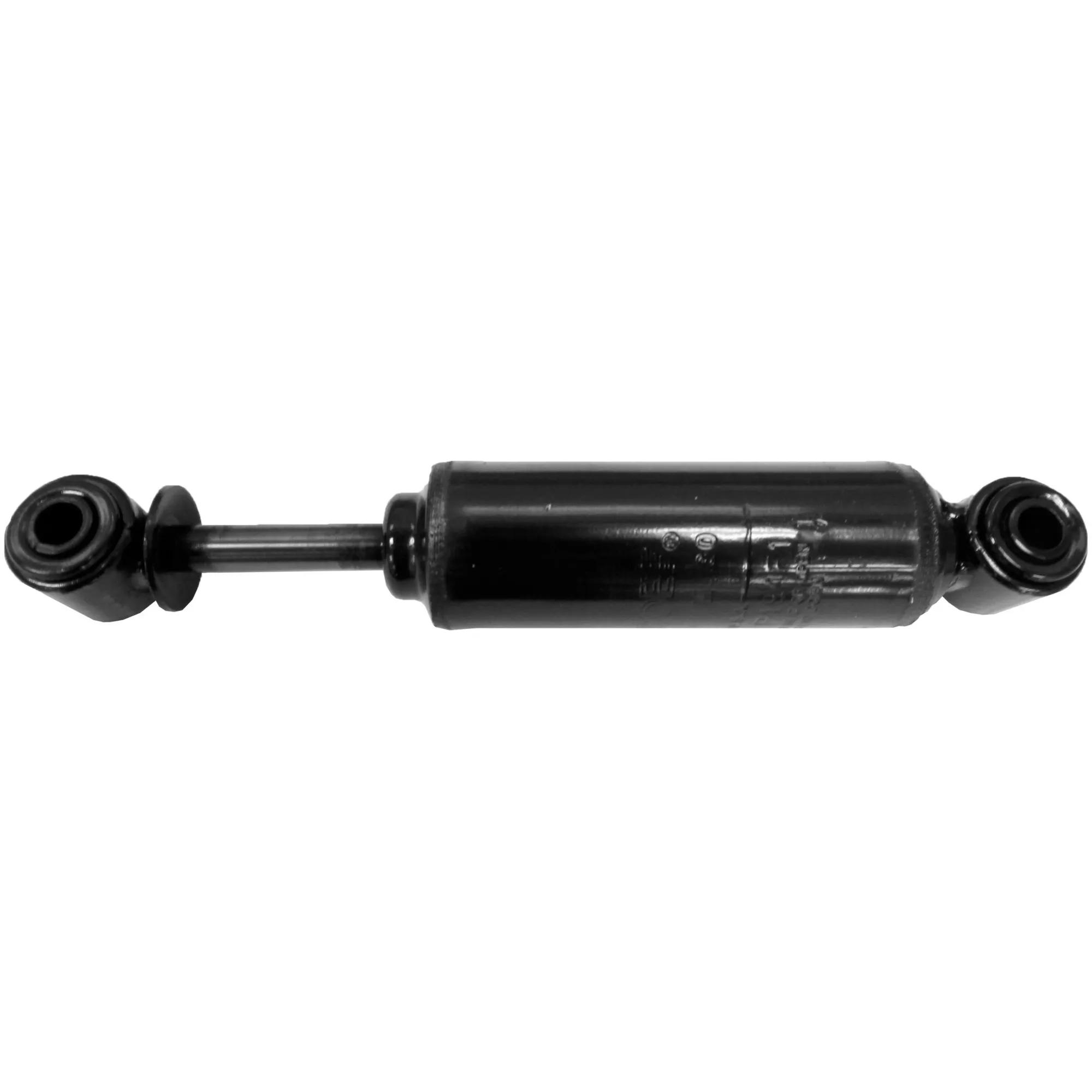

Monroe Cab Shock Absorber, Nitrogen Gas Charged, Comp 7-1/4 in, Ext 9-3/8 in, Stroke 2-1/8 in, 1-3/8 in Bore
#MON66104
Product Overview
Designed for heavy-duty cab suspensions, the Gas Charged Monroe® Magnum® Cab shock isolates the cab from the frame for a smoother, more comfortable ride. Utilizes velocity-sensitive valving to deliver a new standard in driver comfort (most applications).
Features & Benefits
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Urethane Rebound Bumper (When Required)
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Exclusive Groove Tube Technology (On Most Applications)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Application | 1990-1996 Chevrolet C70 Kodiak (Cab) (Qualifier: Replaces OE Part Number(s) 12020054); 1991-2004 Freightliner FL60 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054); 1991-2005 Freightliner FL70 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054); 1994-2002 Freightliner FLB (Cab) (Qualifier: Replaces OE Part Number(s) 12020054); 1982-1999 Kenworth T400 (Cab) (Qualifier: Replaces OE Part Number(s) 12021046, with Link Cab Suspension); 1986-2008 Peterbilt 357 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054, with Link Cab Suspension); 1990-2007 Peterbilt 378 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054, with Link Cab Suspension); 1986-2007 Peterbilt 379 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054, with Link Cab Suspension); 1987-1996 Peterbilt 375 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054, with Link Cab Suspension); 1988-1999 Peterbilt 376 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054, with Link Cab Suspension); 1981-1988 Peterbilt 359 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054, with Link Cabmate PBC379 / PBC379-A Model Cab); 1987-2001 Peterbilt 377 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054, with Link Cab Suspension); 1989-1996 International 9600 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054, with Link Cab Suspension); 1989-1996 International 9700 (Cab) (Qualifier: Replaces OE Part Number(s) 12020054, with Link Cab Suspension); 1996-1999 International 9800 SBA (Cab) (Qualifier: Replaces OE Part Number(s) 12020054) |
| Body Diameter | 1-3/8 in |
| Compressed Length | 7-1/4 in |
| Dust Shield | No |
| Extended Length | 9-3/8 in |
| Lower Mount | LS14 |
| Stroke Inch | 2-1/8 in |
| Upper Mount | LS14 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 2.125 in |
| Manufacturer Part Number | 66104 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 12010054 |
| 2508326C1 |
| 66104 |
| 83021 |
| M66104 |
| 12011046 |
| 12020054 |
| 12021046 |
| 654841 |
| 83049 |
| R711004 |
