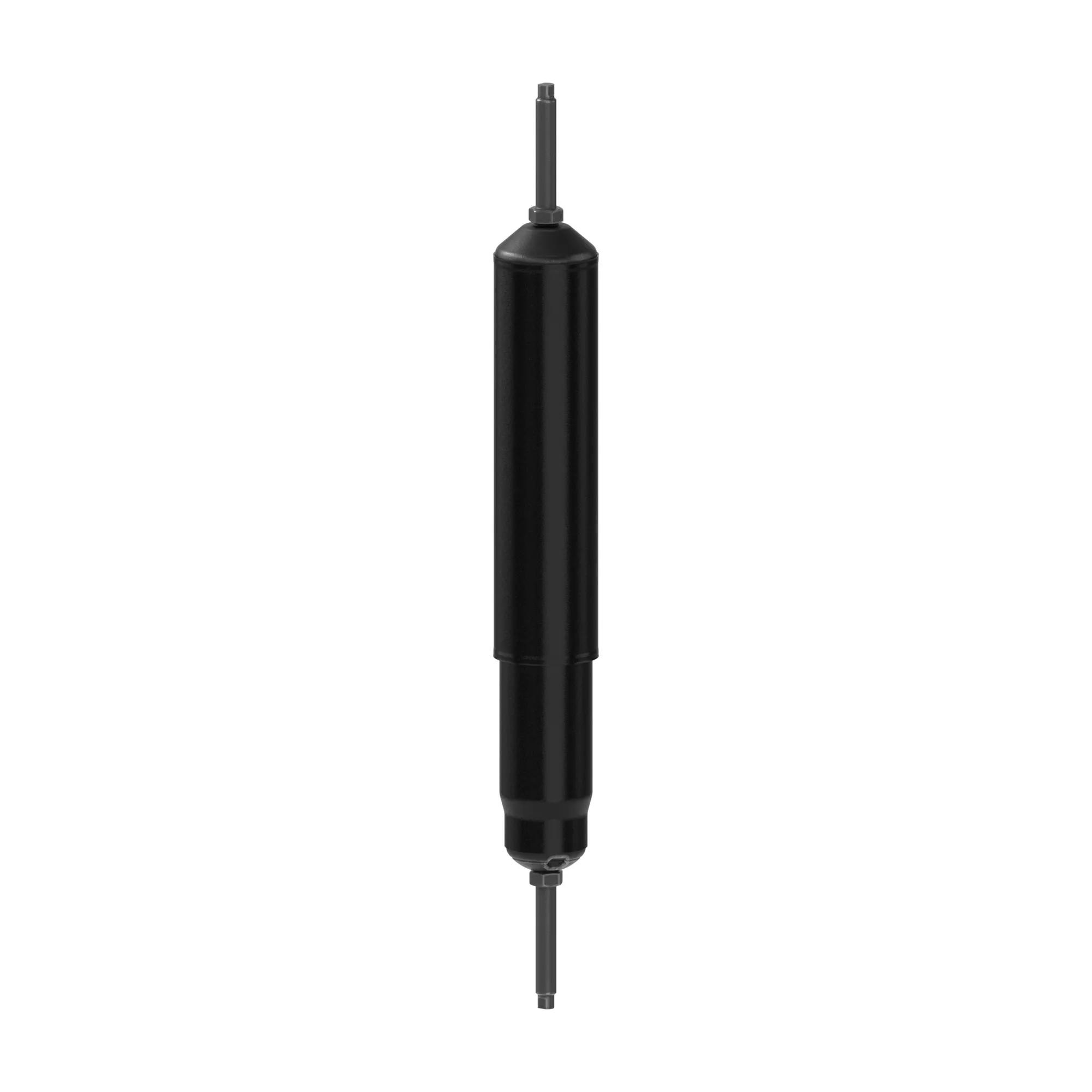

Monroe Magnum Gas Charged Shock Absorber, Comp: 14 in, Ext: 24-1/8 in, Stroke: 10-1/8 in, S5 Mounts, Dust Shield
#MON66923
Product Overview
The Monroe® Magnum® shock absorber for class 3-6 vehicles is Gas Charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
Features & Benefits
- 5/8 in (15.9 mm) Diameter Piston Rod (On Most Applications)
- Resistance & Arc-Welded Mounts, Provide 9,500 lbs (4,309 kg) Of Tensile Strength For Maximum Durability (On Most Applications)
- 1-3/8 in (34.9 mm) Bore (On Most Applications)
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 10-Stage Full Displaced Valving (On Most Applications)
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Compressed Length | 14 in |
| Dust Shield | Yes |
| Extended Length | 24-1/8 in |
| Lower Mount | S5 |
| Parts Pack | (2) MONP1283 & MONP1284 |
| Stroke Inch | 10-1/8 in |
| Type | Shock Absorber |
| Upper Mount | S5 |
| Finish | Painted |
| Shock Type | Magnum Gas Charged Shock Absorber |
| Travel Length | 10.125 in |
| Manufacturer Part Number | 66923 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 3000070C91 |
| 3919924 |
| 472411C91 |
| 66923 |
| 83102 |
| 83456 |
| M66923 |
| 472412C91 |
| 586724C91 |
| 660112 |
| 727627 |
| AMS600112 |
| C1TT18045F |
| C1TZ18124K |
| C4TZ18124C |
| C7TZ18124K |
| E83300 |
| KG6201 |
| L59090 |
