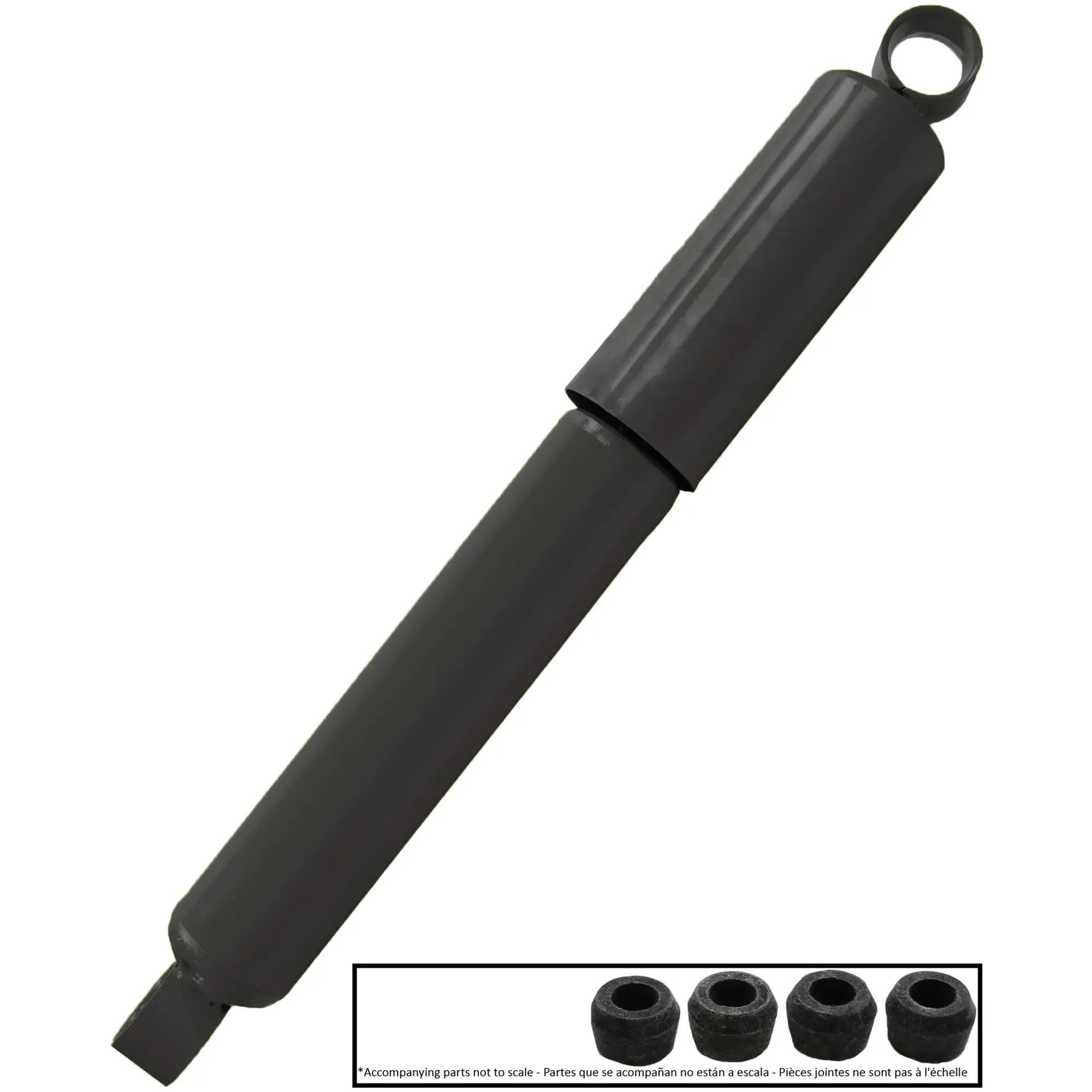

Monroe Magnum Gas Charged Shock Absorber for Class 6-8 HD Trucks, 13-5/16 in Comp, 20-15/16 in Ext, 7-5/8 in Stroke, 2-3/8 in Body
#MON65113
Sommaire du produit
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Caractéristiques et avantages
- 2-3/8 in (60.3 mm) Reserve Tube.
- Large 1-3/4 in (44.5 mm) Piston Bore.
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration - On Most Applications
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability.
- Single-Lip, Low-Friction Oil Seal.
- Patented Unique Hydraulic Rebound Lockout (When Required).
- Heavy Wall Drawn Over Mandrel Pressure Tube.
- When Combined, The Gas Charge & Large-Bore Provide The Consistent Control Necessary For Demanding Truck Suspensions.
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
Spécifications
| Body Diameter | 2-3/8 in |
| Compressed Length | 13-5/16 in |
| Dust Shield | Yes |
| Extended Length | 20-15/16 in |
| Lower Mount | L3 |
| Parts Pack | MONP00119 |
| Stroke Inch | 7-5/8 in |
| Upper Mount | L3 |
| Finish | Painted |
| Shock Type | Gas Charged |
| Travel Length | 7.625 in |
| Manufacturer Part Number | 65113 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges et pièces équivalentes:
| 65113 |
| M65113 |
| 201890 |
| 3919943 |
| 57365113 |
| 650113 |
| 650113MT |
| 665932 |
| 680348 |
| 89413 |
| AMS650113 |
| GOD65113 |
