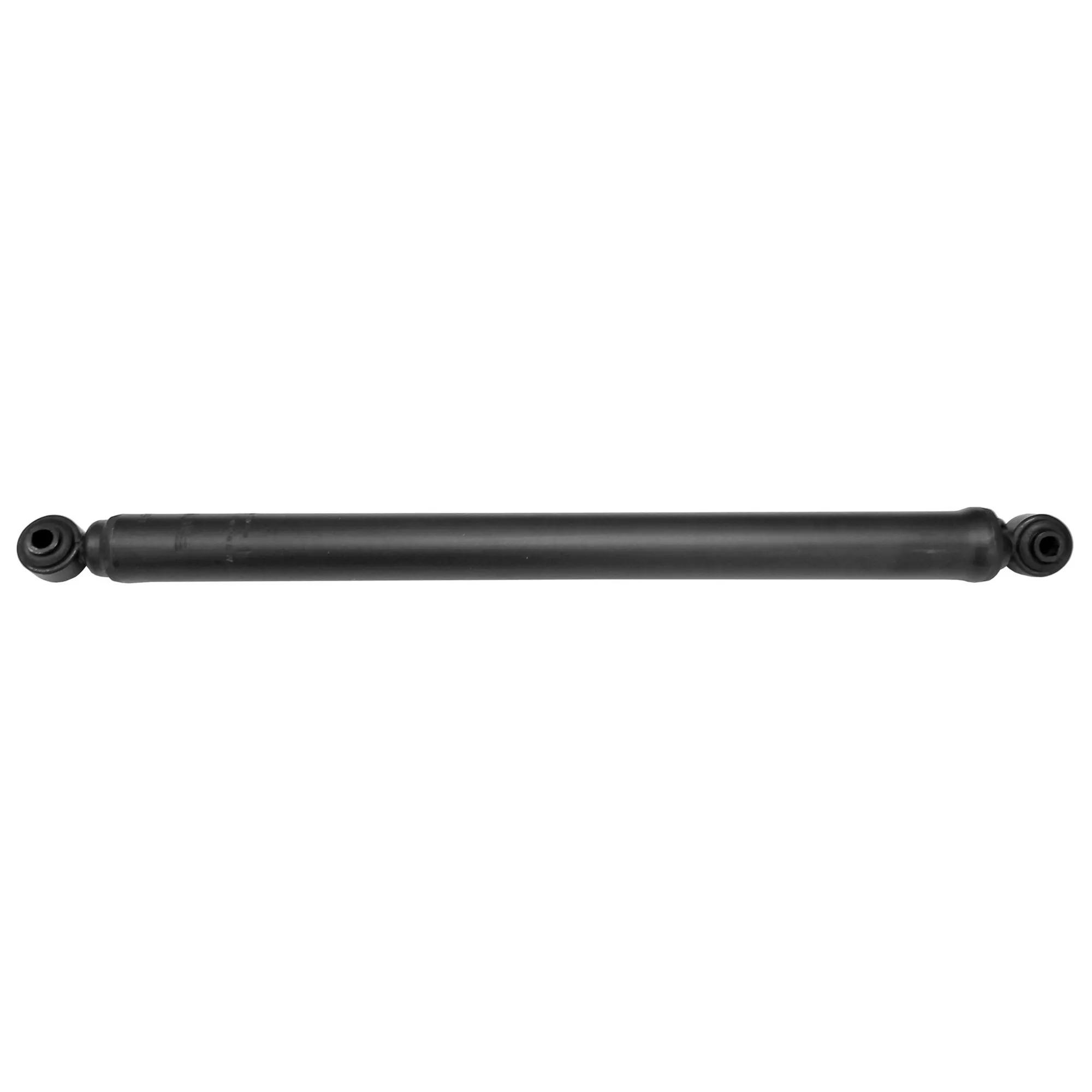

Monroe Nitrogen Gas Charged Cab Shock Absorber, Comp: 19-23/32 in, Ext: 32-47/64 in, Stroke: 13-1/64 in
#MON66138
Product Overview
Designed for heavy-duty cab suspensions, the Gas Charged Monroe® Magnum® Cab shock isolates the cab from the frame for a smoother, more comfortable ride. Utilizes velocity-sensitive valving to deliver a new standard in driver comfort (most applications).
Features & Benefits
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Urethane Rebound Bumper (When Required)
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Exclusive Groove Tube Technology (On Most Applications)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Application | 1998-2003 International 8100 (Qualifier: Replaces OE Part Number(s) 3501427C1); 1998-1999 International 9100 SBA (Qualifier: Replaces OE Part Number(s) 4170820C1, 3501427C1); 2000-2003 International 9100i SBA (Qualifier: Replaces OE Part Number(s) 4170820C1, 3501427C1); 2003-2007 International 8600 SBA (Qualifier: Replaces OE Part Number(s) 4170820C1, 3501427C1); 2008-2018 International 8600 TranStar (Qualifier: Replaces OE Part Number(s) 4170820C1, 3501427C1); 2013-2019 International WorkStar 7600 (Qualifier: Replaces OE Part Number(s) 4170820C1, 3501427C1); 2017-2024 International LT625 (Qualifier: Replaces OE Part Number(s) 4170820C1, 3501427C1); 2018-2024 International HX520 (Qualifier: Replaces OE Part Number(s) 4170820C1, 3501427C1); 2018-2024 International RH613 (Qualifier: Replaces OE Part Number(s) 4170820C1, 3501427C1) |
| Body Diameter | 1-3/8 in |
| Compressed Length | 19-23/32 in |
| Dust Shield | No |
| Extended Length | 32-47/64 in |
| Lower Mount | L3 |
| Stroke Inch | 13-1/64 in |
| Upper Mount | L3 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 13.015 in |
| Manufacturer Part Number | 66138 |
| Product Category | Hood Damper |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 3501427C1 |
| 66138 |
| M66138 |
| OE19674 |
| SA66138 |
