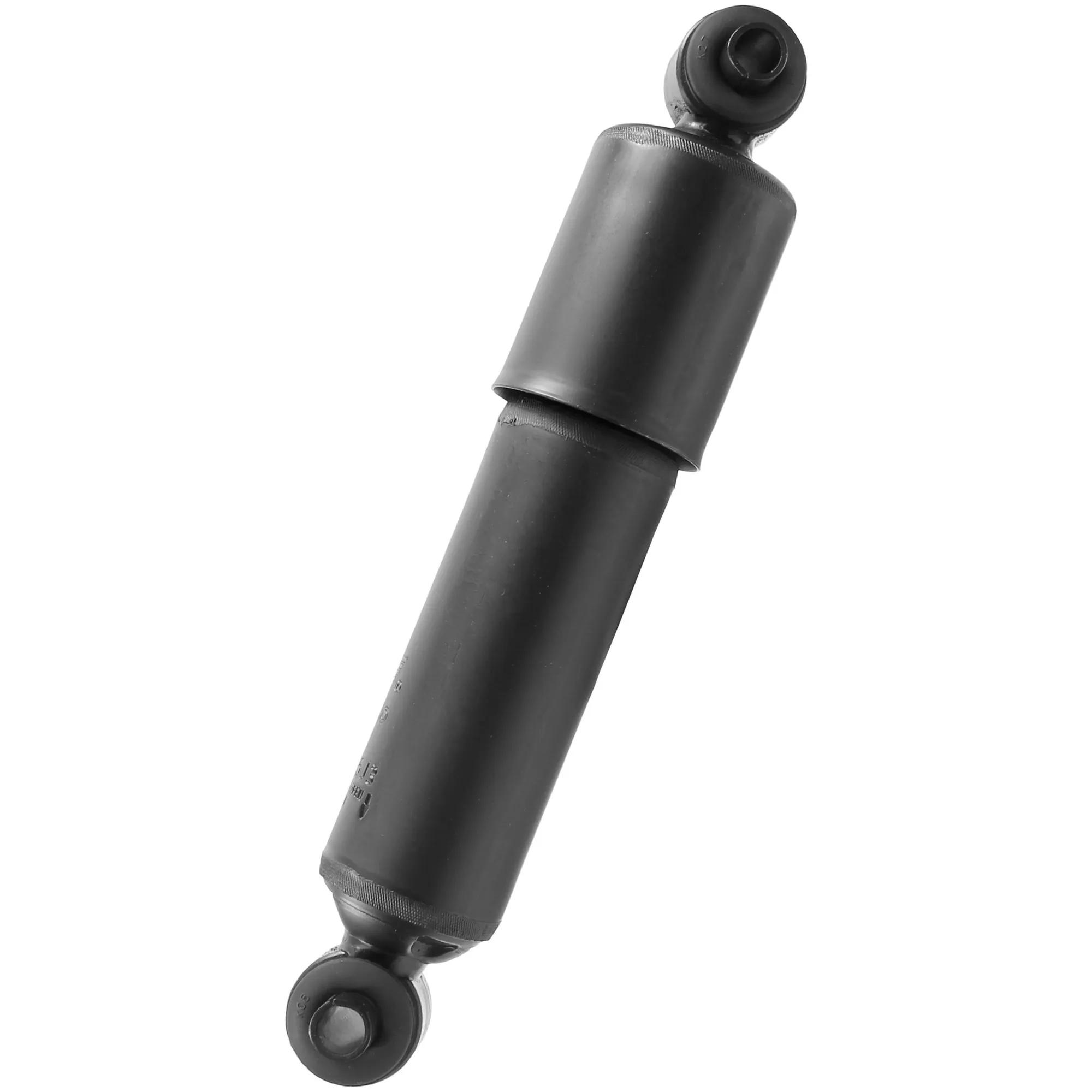

Monroe Nitrogen Gas Charged Cab Shock Absorber, Comp 8-1/8 in, Ext 10-7/8 in, Stroke 2-3/4 in, 1-3/8 in Bore
#MON66161
Product Overview
Designed for heavy-duty cab suspensions, the Gas Charged Monroe® Magnum® Cab shock isolates the cab from the frame for a smoother, more comfortable ride. Utilizes velocity-sensitive valving to deliver a new standard in driver comfort (most applications).
Features & Benefits
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Urethane Rebound Bumper (When Required)
- 1-3/8 in Bore: Lower Operating Pressure Than Standard 1 in Bore Units
- Multi-Lip Fluid Seal Designed For Smooth Performance, Long Life & Reduced Friction
- 2 in Or 2-3/8 in (50.8 mm Or 60.3 mm) Reserve Tube (Where Required)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Exclusive Groove Tube Technology (On Most Applications)
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Body Diameter | 1-3/8 in |
| Compressed Length | 8-1/8 in |
| Extended Length | 10-7/8 in |
| Lower Mount | LS77 |
| Stroke Inch | 2-3/4 in |
| Upper Mount | LS77 |
| Shock Mounting | Arc-Welded Mounts |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 2.75 in |
| Manufacturer Part Number | 66161 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 66161 |
| M66161 |
| 12019006 |
| 12019007 |
| 12019010 |
| 12019011 |
| 2509222C91 |
| 2509224C91 |
| 3557165C1 |
| 3557167C3 |
| 83053 |
