Monroe Nitrogen Gas Charged Shock Absorber, 23/32 in Chrome Rod, 1-3/4 in Bore, Comp: 13-1/4 in, Ext: 18-7/8 in, Stroke: 5-5/8 in
#MON65497
Product Overview

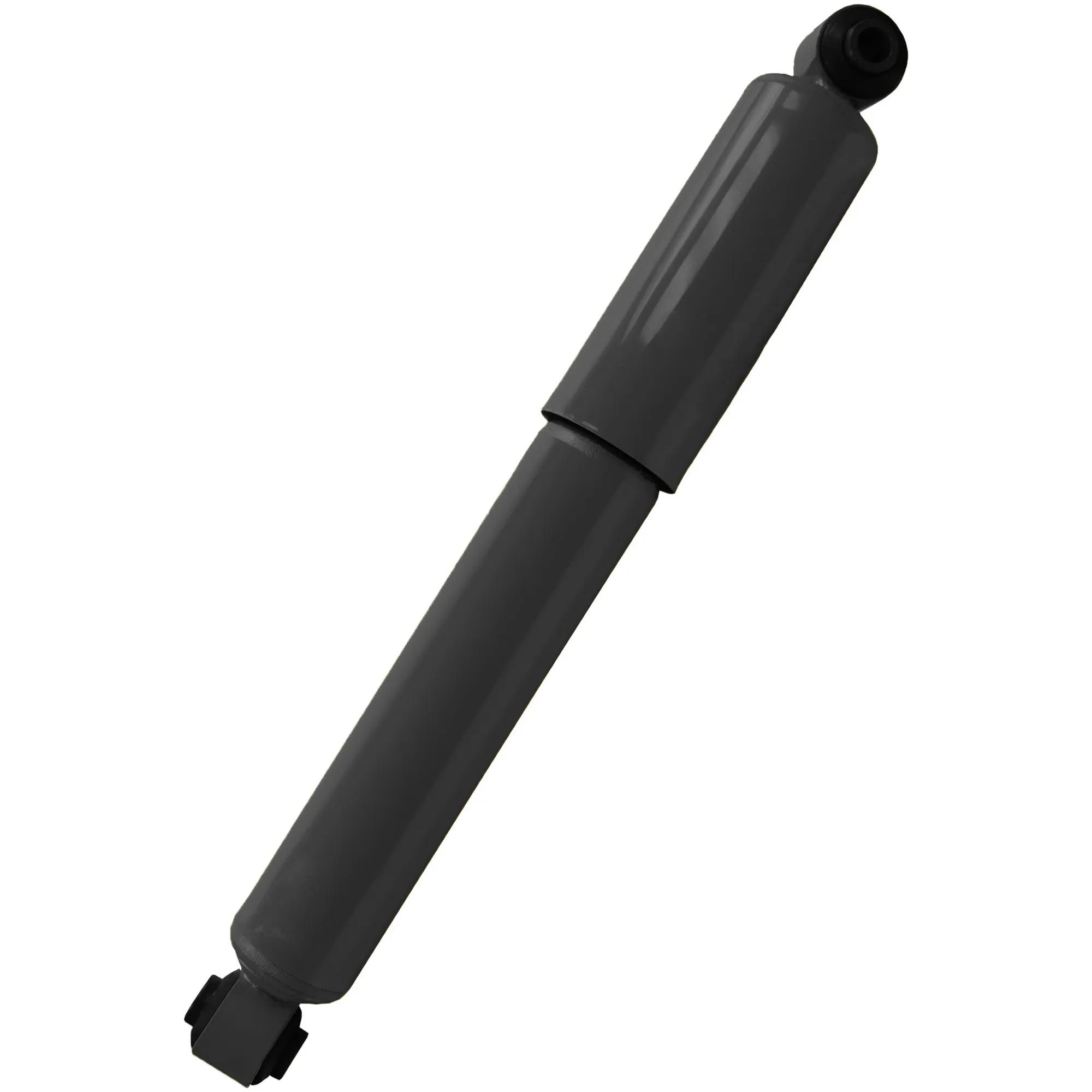

The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first Gas Charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for today’s heavy-duty truck suspension systems.
Features & Benefits
- Hardened 23/32 in (18 mm) Diameter Chrome Piston Rod
- Resistance & Arc-Welded Mounts, Provides 15,000 lbs (6,804 kg) Of Tensile Strength For Maximum Durability
- Large 1-3/4 in (44.5 mm) Piston Bore
- Single-Lip, Low-Friction Oil Seal
- Heavy Wall Drawn Over Mandrel Pressure Tube
- 2-3/8 in (60.3 mm) Reserve Tube
- 10-Stage Full Displaced Valving (On Most Applications)
- Nitrogen Gas Charged: For Improved Ride & Handling, Helps Maintain Tire To Road Contact By Reducing Aeration.
- Patented Unique Hydraulic Rebound Lockout (When Required)
Specifications
| Compressed Length | 13-1/4 in |
| Dust Shield | Yes |
| Extended Length | 18-7/8 in |
| Lower Mount | LS53 |
| Stroke Inch | 5-5/8 in |
| Type | Shock Absorber |
| Upper Mount | LS53 |
| Shock Type | Gas Charged (Nitrogen) |
| Travel Length | 5.16 in |
| Manufacturer Part Number | 65497 |
| Product Category | Shock Absorber |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 20485633 |
| 65497 |
| M65497 |
| 14QK322M |
| 14QK422M |
| 20485632 |
| 64838001 |
| 64838001L |
| 64838002 |
| 64838002L |
| 85933 |
| 89454 |
