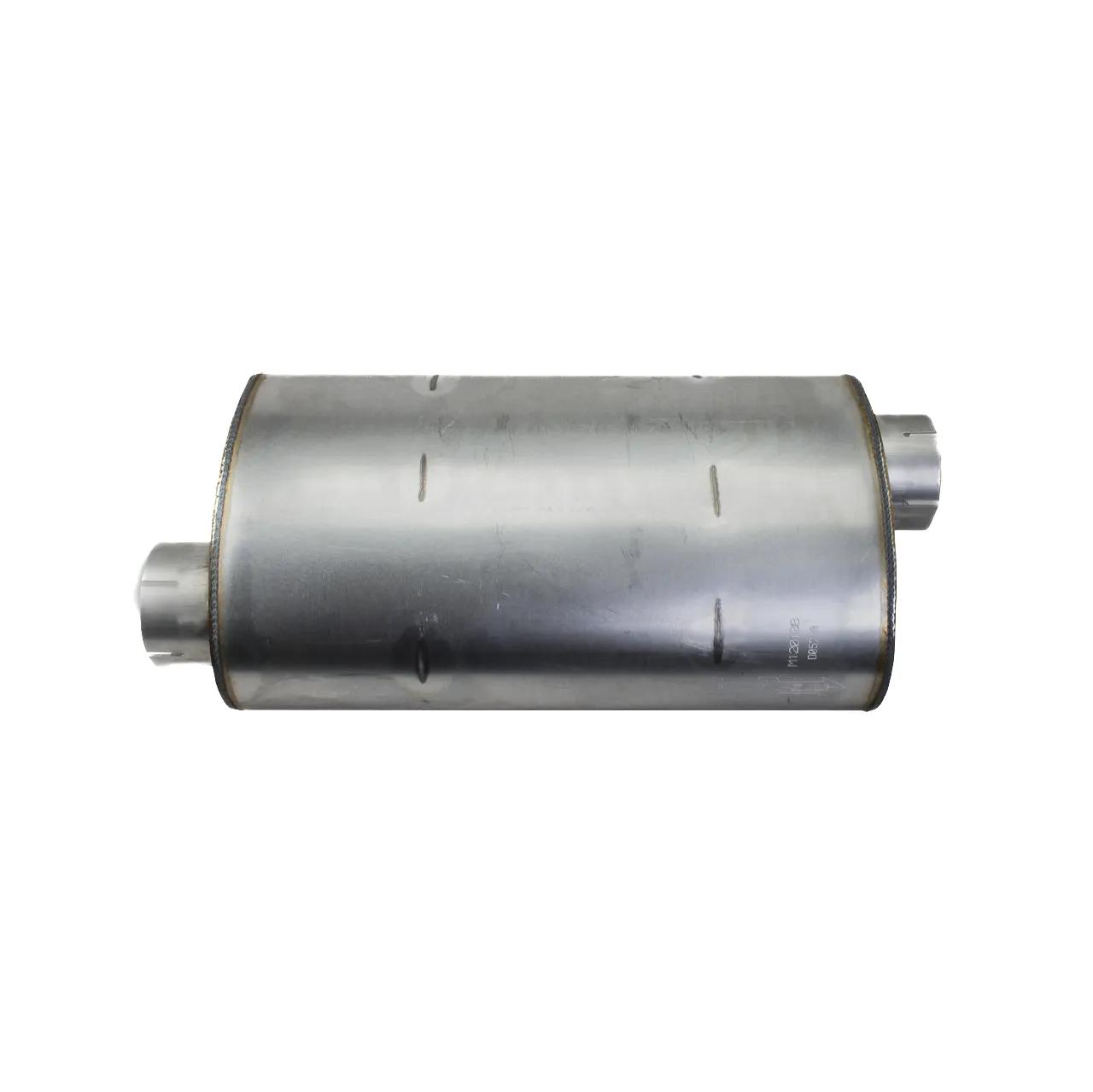

Muffler, OD: 10 in, Le: 26 in

#DONM120108

Product Overview

Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.

Products and technology designed to consistently meet required specifications – and your expectations.

Attenuation Low Range	15 dBA
Attenuation High Range	20 dBA
Back Pressure High-Range (Metric)	76 mm HG
Back Pressure High Range	2.99 in HG
Back Pressure Low Range	0.98 in HG
Back Pressure Mid Range	2.01 in HG
Back Pressure Low-Range (Metric)	25 mm HG
Back Pressure Mid-Range (Metric)	51 mm HG
Body Diameter	10 in (25.4 cm)
Body Diameter Max	15 in (38.1 cm)
Body Length	25-63/64 in (66 cm)
Color	Aluminized
Height	10 in (25.4 cm)
Inlet Clock Position	3:00
Inlet Diameter	5 in (12.7 cm)
Inlet Quantity	1
Inlet Type	Pipe Connection
Length	26 in (66.04 cm)
Material	Steel
Outlet Clock Position	9:00
Outlet Diameter	5 in (12.7 cm)
Outlet Quantity	1
Outlet Type	Pipe Connection
Overall Length	32-1/2 in (82.55 cm)
Rated Flow High Range	2327.24 cfm (65.9 m³/min)
Rated Flow Low Range	1345.49 cfm (38.1 m³/min)
Rated Flow Mid Range	2327.24 cfm (65.9 m³/min)[delete]
Reversible	No
Shape	Oval
Length Range	25 to 26 in
Style	Style 2
Width	15 in (38.1 cm)
