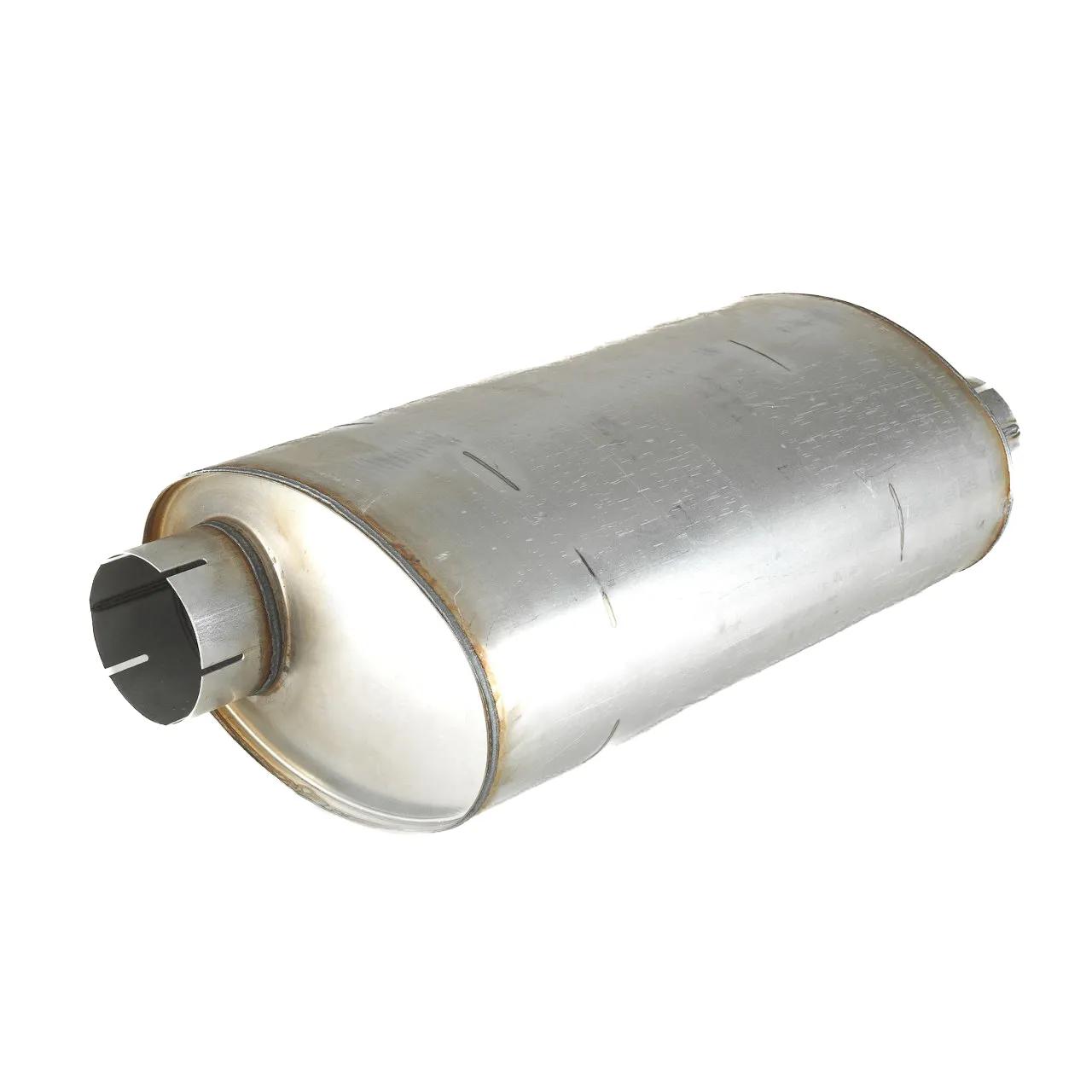

Muffler, OD: 10 in, Le: 26 in
#DONM120225
Features & Benefits
- Donaldson delivers a full line of aftermarket liquid, lube, air, hydraulic, and exhaust system components.
- Products and technology designed to consistently meet required specifications – and your expectations.
- Superior performance in thousands of on- and off-road applications.
Specifications
| Plage basse d'atténuation | 15 dBA |
| Gamme haute d'atténuation | 20 dBA |
| Gamme haute de contre-pression (métrique) | 76 mm HG |
| Gamme haute de contre-pression | 2,99 po HG |
| Plage basse de contre-pression | 0,98 po HG |
| Contre-pression milieu de gamme | 2,01 po HG |
| Contre-pression basse gamme (métrique) | 25 mm HG |
| Contre-pression milieu de gamme (métrique) | 51 mm HG |
| Diamètre du corps | 10 po (25,4 cm) |
| Diamètre maximal du corps | 15 po (38,1 cm) |
| Longueur du corps | 25-63/64 po (66 cm) |
| Couleur | Aluminisé |
| Hauteur | 10 po (25,4 cm) |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 5 in (12.7 cm) |
| Inlet Quantity | 1 |
| Inlet Type | Connexion de tuyau |
| Length | 26 po (66,04 cm) |
| Material | Acier |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 5 po (12,7 cm) |
| Outlet Quantity | 1 |
| Outlet Type | Connexion de tuyau |
| Overall Length | 31-15/16 po (81,13 cm) |
| Rated Flow High Range | 2885,21 pi³/min (81,7 m³/min) |
| Rated Flow Low Range | 1666,85 pi³/min (47,2 m³/min) |
| Rated Flow Mid Range | 2885.21 cfm (81.7 m³/min)[delete] |
| Reversible | Non |
| Shape | Ovale |
| Length Range | 25 à 26 po |
| Style | Style 2 |
| Width | 15 po (38,1 cm) |
Interchanges & Equivalent parts:
| M120225 |
| 3647 |
| 89500147 |
| 86147M |
| 15005 |
| T0902021H |
| 3647Q |
| 21001321 |
| 530372 |
| 76047483 |
| 53500420 |
| 551346685 |
| 12408880 |
| 1248880 |
| 300104001 |
| 27Q389 |
| 4003064000 |
| 4003064111 |
| 43064 |
| 43064111 |
| 2100165 |
| 10000557 |
| CDD000122 |
| PB4890 |
| 3466001 |
| 7587001 |
| 801852 |
| 597256 |
| 597286 |
| 28H1012 |
| 9575M120225 |
| D5HS5230EA |
| DNM0M120225 |
| DNM120225 |
| 5826864 |
| 7642100021 |
| 31199 |
| 56897978 |
| DCM120225 |
| PB8490 |
| 78314 |
| 2ME236P3 |
| DNMOM120225 |
| 2143292 |
| EE100601 |
| 27Z354 |
| A1204265 |
| 419844 |
| 13PS4174 |
| PS417413 |
| D132025 |
| 1102LL2001 |
| 242367 |
| 671733 |
| 15023916 |
| 15253991 |
| 3676 |
| 4088683 |
| 810335 |
| 810347 |
| 22552 |
| 117544 |
| 0520372 |
| 007587001 |
| 00810335 |
| 00810347 |
| 0551346685 |
| 003466001 |
| 004003064000 |
| 2191-M120225 |
| 31199HDM |
| 420256 |
| 22833 |
| 520372 |
