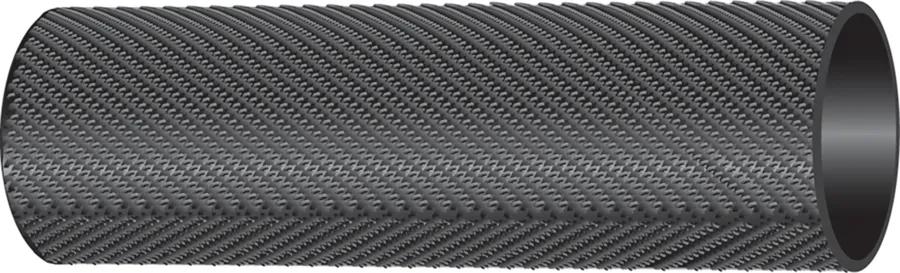

Nylon Protective Sleeve, ID: 1-7/32 in
#GATG81800-0020
Product Overview
Gates Nylon Sleeves Perform a Dual Role: First, They Provide Excellent Abrasion Resistance to Protect Individual Hose; Second, They Can be Used to Bundle Several Hose Assemblies Together for Maximum Protection.
Features & Benefits
- MSHA Flame-Resistance Approved. Add .125 in. for Installation.
- Downtime & Maintenance Costs Are Reduced. These Nylon Sleeves Are Unique Because They Form an Extra Protective Layer Against Abrasive Forces.
- Do Not Use the Nylon Sleeve Where Ambient Temperatures Exceed 250 Deg. F.
- Specifically, Thousands of Tiny Nylon Filaments, Woven Into the Texturized Yarn, "friz" Into a Self-Renewing Shield That is Extremely Resistant to Severe Abrasion.
- NOTE: Be Sure to Heat the Cut Edges of the Nylon Hose Sleeve. You May Have to Use a Banded Clamp or Nylon Tie to Fasten the Sleeve Securely.
Specifications
| Inside Diameter | 1-7/32 in (3.1 cm) |
| Length | 300 ft (91.44 m) |
| Material | Nylon |
| Type | Protective Sleeve |
Interchanges & Equivalent parts:
| FC425-18 |
| G81800-0020 |
| 72771012 |
