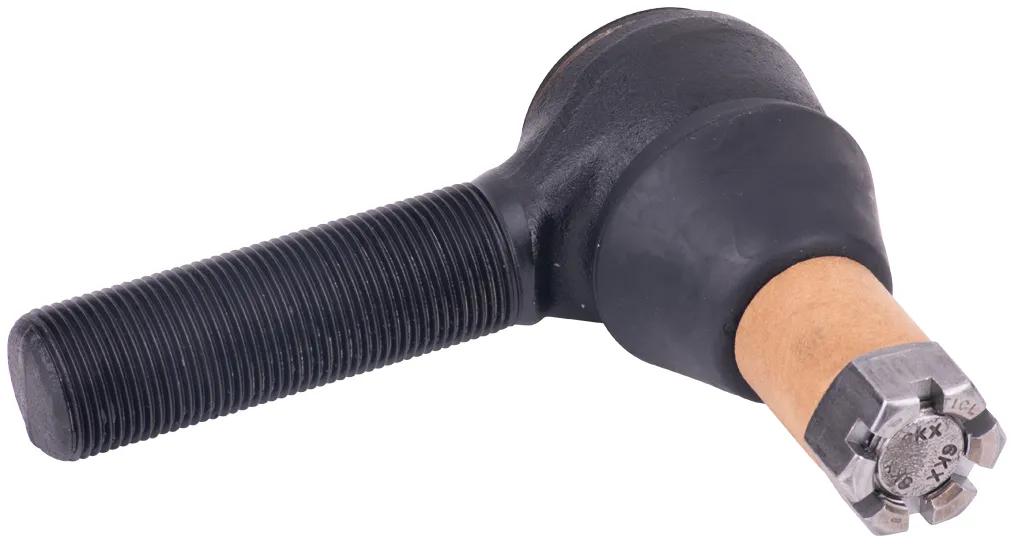

OEM Style - Tie Rod Assembly - 5.75 in. Length - Right Hand Thread External for Multi Applications
#TRWPHES431R
Features & Benefits
- North American Made
- OEM Style
- Serviceable, pre-filled with high performance grease with a protective boot.
- Eliminates any contamination for extended service life.
- One-piece forged solid steel socket and hardened upper bearing for strength and durability.
- Induction hardened and polished full ball stud for precision steering.
- High strength steel lower seat for maintaining proper angulation.
- Self adjusting wear take-up pre-loaded heavy-duty spring, automatically reduces lash.
Specifications
| Large Taper Diameter | 1-1/4 in (3.18 cm) |
| OEM Replacement Part | Autocar/Brockway 887784A Autocar/Brockway/Freightliner/Navistar/Peterbilt/Rockwell/Meritor/Volvo/White/GMC R230070 Chevrolet/GMC 2452860 Dana/Spicer Axle/Navistar 220TR116 Fabco 363-273 Ford Truck D0HZ-3A131C, D0HZ-3A130C, E3HZ-3A130B, E4HZ-3A130A, E4HZ-3A130B, D0HZ-3A130A, D0HZ-3A130D, D0HZ-3A130C, B8TZ-3A130B Freightliner L28SV5004D Kenworth A3144R296, L28SV5052A1 MACK 10QH39P1, 18QK23A, 18QK29301 Kenworth/Marmon/Peterbilt/Rockwell/Meritor/White A3144J296 Navistar/IHC Truck 969056R91 White Truck 839307B, L28SV5004D1 |
| Right or Left Hand Threads | RH |
| Small Taper Diameter | 1-5/64 in (2.74 cm) |
| Taper | 1.5/FT |
| Tie Rod End Length | 5.75 in. |
| Tie Rod End Thread Diameter | 1-1/4-12 in. |
| Type | Straight - 90 deg |
Interchanges & Equivalent parts:
| 10QH248P4 |
| 310-229 |
| E-4617 |
| E4617 |
| ES431R |
| EUCE-4617 |
| EUCE4617 |
| FTR431R |
| HES431R |
| R230070 |
| 1685401C91 |
| 462ES431R |
| R230071 |
| HLC1071517 |
| L24SV8201J21P |
