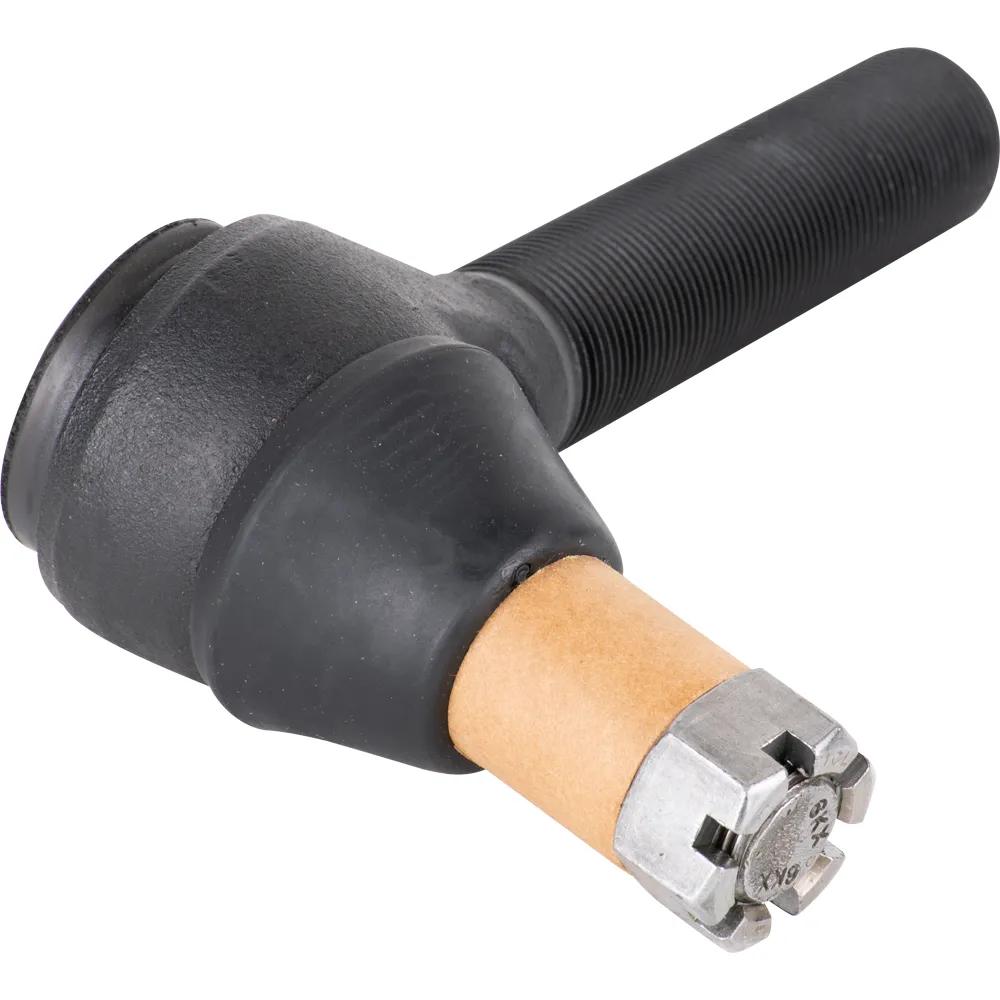

OEM Style - Tie Rod Assembly - 7.37 in. Length - Left Hand Thread External for Multi Applications
#TRWPHES2090L
Features & Benefits
- North American Made
- OEM Style
- Serviceable, pre-filled with high performance grease with a protective boot.
- Eliminates any contamination for extended service life.
- One-piece forged solid steel socket and hardened upper bearing for strength and durability.
- Induction hardened and polished full ball stud for precision steering.
- High strength steel lower seat for maintaining proper angulation.
- Self adjusting wear take-up pre-loaded heavy-duty spring, automatically reduces lash.
Specifications
| Large Taper Diameter | 1-1/4 in (3.18 cm) |
| OEM Replacement Part | Autocar 37024-5001 Brockway & Freightliner R230072 Chevrolet Truck & GMC Truck 12541319, 798204 Kenworth A3144U437, L24SV8000A13 Eaton & Kenworth 820626, 820694, 818472 MACK 10QH312P1, A3144U438 Navistar/IHC Truck 590583C91, 486354C91, 486355C91, 1668479C91 Peterbilt A3144U437, 820626, 820694, R230072 Rockwell/Meritor R230072, A3144U438, R230103 Volvo/White/GMC 37024-5001 Western Star R230072 White Truck 37024-5001, A3144U438 |
| Right or Left Hand Threads | LH |
| Small Taper Diameter | 1-5/64 in (2.74 cm) |
| Taper | 1.5/FT |
| Tie Rod End Length | 7.37 in. |
| Tie Rod End Thread Diameter | 1-1/4-12 in. |
| Type | Straight - 90 deg |
Interchanges & Equivalent parts:
| 310-397 |
| 310-433 |
| 310433 |
| 370245014 |
| 85112011 |
| E-4628 |
| E4628 |
| ES2090L |
| EUCE-4628 |
| EUCE4628 |
| HES2090L |
| R230072 |
| R230133 |
| ROCR230072 |
| PHES2090L |
| 2075446 |
| 462ES2090L |
| 15001001035 |
| HLC1071478 |
| L24SV8100B13P |
