Oil Bath Wheel Hub Seals - Front-Steer Axle - H/D Truck PlusXL Scotseal (CR)
#SKF45093
Product Overview

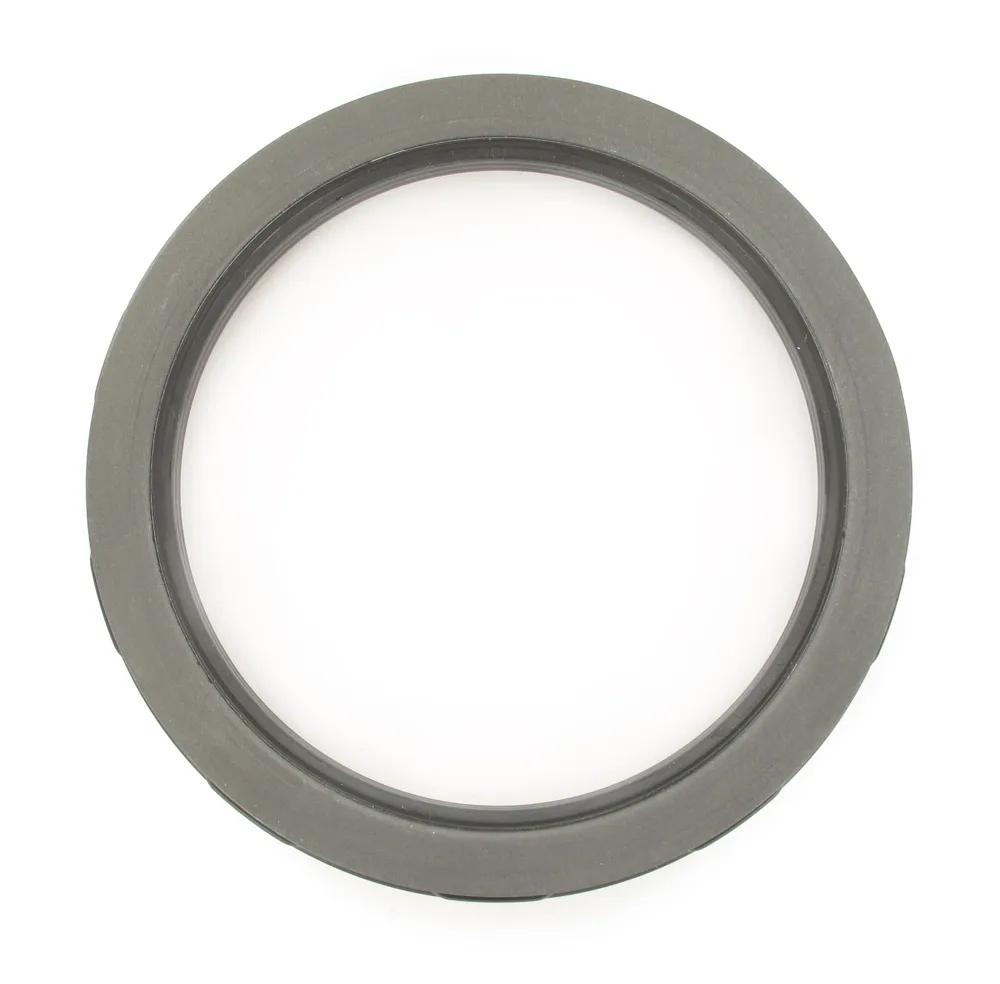

The ScotSeal PlusXL is a Rubber Unitized, One Piece Design.
Features & Benefits
Features & Benefits
SKF45093 - Features Documents - A
SKF45093 - Features Documents - B
SKF45093 - Features Documents - C
SKF45093 - Features Documents - D
SKF45093 - Features Documents - E
SKF45093 - Features Documents - F
SKF45093 - Features Documents - G
SKF45093 - Features Documents - H
SKF45093 - Features Documents - I
- The ScotSeal Plus XL Consists of Four Sealing Lips: A Spring Loaded Primary Sealing Lip With Patented Waveseal Design That is Factory Pre-Lubed,
- a Radial and Axial Dirt Lip , Plus an Outer Bumper Lip That Acts as a Priliminary Dirt Excluder.
- ScotSeal PlusXL Requires No Special Installation Tools and Maintains a Rubber to Metal Contact Between the Seal O.D. and the Hub Bore Surface,
- as Well as a Rubber to Metal Contact Between the Packing I.D. and Spindle or Axle.
- The New High Temperature, Synthetic Lubricant Freindly Material of the ScotSeal PlusXL, Hydrogenated Nitrile Butadiene Rubber (HNBR), is an Excellent Choice for Frequent Braking Applications.
- HNBR Elastomeric Material Provides Heat Resistance up to 300 Degrees Farenheit and Broad Compatibility With Today's Synthetic Lubrication Fluids.
- The Unsurpassed Exclusion Properties Allow the ScotSeal PlusXL to Perform in Very Harsh Conditions.
- Worn Hubs and Spindles Are Not a Problem for the ScotSeal PlusXL.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Contents | (1) Oil Bath Seal |
| Inside Diameter | 4-1/2 in (11.43 cm) |
| Seal I.D. | 4 to 4.99 in |
| Seal O.D. | 5 to 5.99 in |
| Series | Scotseal Plus XL |
| Type | Wheel Seal (PlusXL) |
| VMRS Code | 18001004 |
| Wall Thickness | 49/64 in (1.96 cm) |
Interchanges & Equivalent parts:
| 2ER919 |
| 32QJ263 |
| 370021 |
| 370022A |
| 370131 |
| 370131A |
| 45093 |
| 45093CHR |
| 45095 |
| 45097 |
| 45099 |
| 380022 |
| 380022A |
| 3090903 |
| 3808054 |
| 3808067 |
| 3810056 |
| 145845097 |
| 3828056 |
| 3830156 |
| 3878755 |
| 3878756 |
| 3201093 |
| 3202165 |
| 3202184 |
| 3910003 |
| 3918971 |
| 3929003 |
| 3929094 |
| 3930103 |
| 3930203 |
| CR45093 |
| CR45097 |
| 965845097 |
| 85104741 |
| CHR45093 |
| CHR45097 |
| 856 |
| N45097 |
| UZ0856E |
| XCR45097 |
| HS45097 |
| TKR856 |
| SS48267 |
| 2706W1706RING |
| 27111712 |
| 2129W1093RING |
| 2129W1511RING |
| 785400 |
| ZAR45097 |
| 27101706 |
| 27101710 |
| 309-0903 |
| 380131A |
| 392-9094 |
| CRI45093 |
| HD810 |
| 370022AFDM |
| 380022AFDM |
| 45093-CR |
| 856DAN |
| CHR 45093 |
| N-45097 |
| XCR 45097 |
| 320-1093 |
| 320-2165 |
| 382-8056 |
| 3909002 |
| 3909003 |
| MER0203 |
| R65270U |
| R69796 |
| R70796 |
| 701349 |
