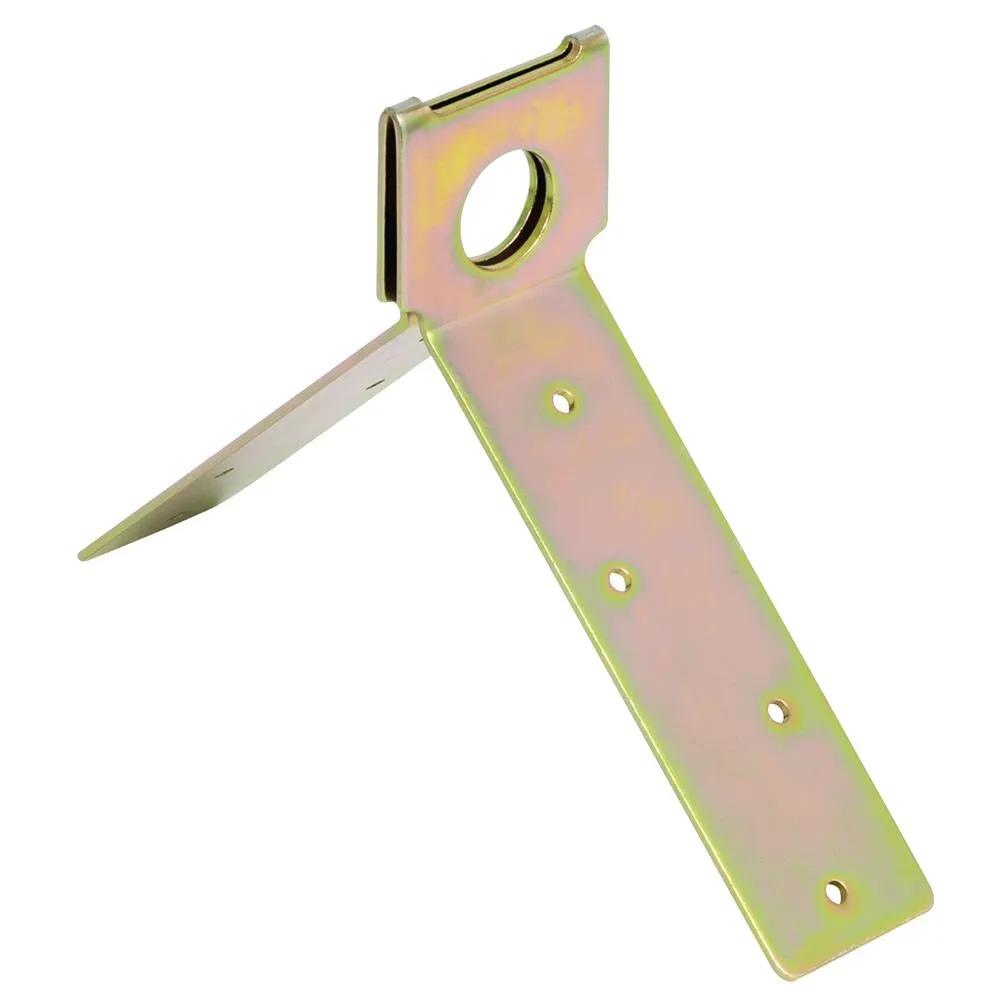

Peakworks Single Use Roof Bracket - Temporary
#STRV8229001
Product Overview
Peakworks® offers a wide range of anchor systems including: single-use/reusable roof anchors, sliding beam anchors, concrete hole anchors and permanent anchors. These anchors can be connected to a variety of materials such as steel, wood and concrete and should be located directly above the worker to prevent swinging. All Peakworks® anchors are built with a minimum tensile strength of 5,000 lbs (22 kN).
Features & Benefits
- DESIGN - PeakWorks Anchors and Brackets can be connected to a variety of materials such as steel, wood and concrete and should be located directly above the worker to prevent swinging
- FEATURES - Built with a minimum tensile strength of 5,000 lbs (22 kN). They meet or exceed CSA Z259.15 and ANSI Z359.18 standards and OSHA requirements
- CAPACITY - Peakworks anchors have a 310 lbs. (141kg) weight capacity (combined weight of person, tools, clothing, etc.)
- OPTIONS - Temporary roof anchor brackets are available in 3 types - V8229001: Single-Use Roof Bracket, V8229100: Reusable Roof Anchor Bracket, V8229104: Stainless Steel Reusable Roof Anchor Bracket
- Model RB-9800 needs to be installed either at the peak of a roof or if used on a flat roof needs to be 5,000 lbs. rated at the point of installation
Specifications
| Type | Padded Miner's Belt |
| Height | 2.36 in |
| Manufacturer Part Number | V8229001 |
| Product Category | Fall Protection |
| Quantity | 1 |
| Weight | 0.78 lbs |
| Width | 5.71 in |
