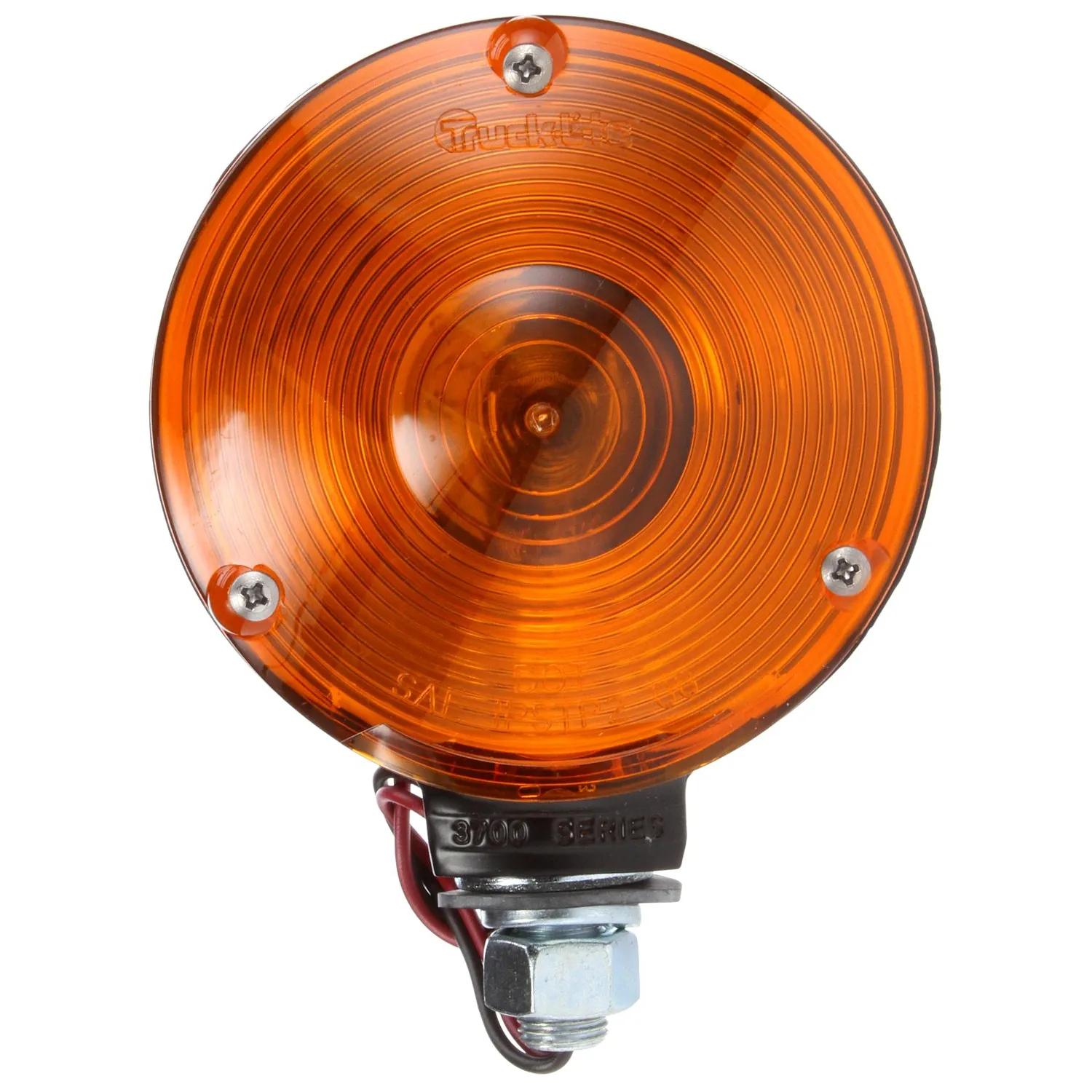

Pedestal Light, Amber & Yellow, Round
#TRL2702A
Product Overview
Signal-Stat, Incandescent, Yellow Round, 1 Bulb, Single Face, 2 Wire, Pedestal Light, 1 Stud, Black, Stripped End
Features & Benefits
- For vehicle application with vehicle width over 80" wide
- Two wire, stop, tail, turn lamp
- LED Upgrade options available #2751 and 2751A
Specifications
| Color | Amber |
| Common Size | 4 in (10.16 cm) |
| Contents | Pedestal Light |
| Current Major | 2.1 amp |
| Current Minor | 0.59 amp |
| Depth | 2 in (5.08 cm) |
| Finish | Black |
| Height | 4-1/8 in (10.49 cm) |
| Kit (Y/N) | No |
| Length | 4-17/64 in (10.85 cm) |
| Lens Material | Acrylic |
| Mount Type | Stud Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Left or Right Sides |
| Series | Signal-Stat |
| Shape | Round |
| Single or Dual | Single Face |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Pedestal Light |
| VMRS Code | 034-003-010 |
| Volt | 12V |
| Width | 4-5/8 in (11.76 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| SIG2702A |
| TLD2702A |
| 2702A |
| TL2702A |
| LIT2702A |
| LT1812Y |
| TL 2702A |
| 53053GR0 |
| 53053 |
