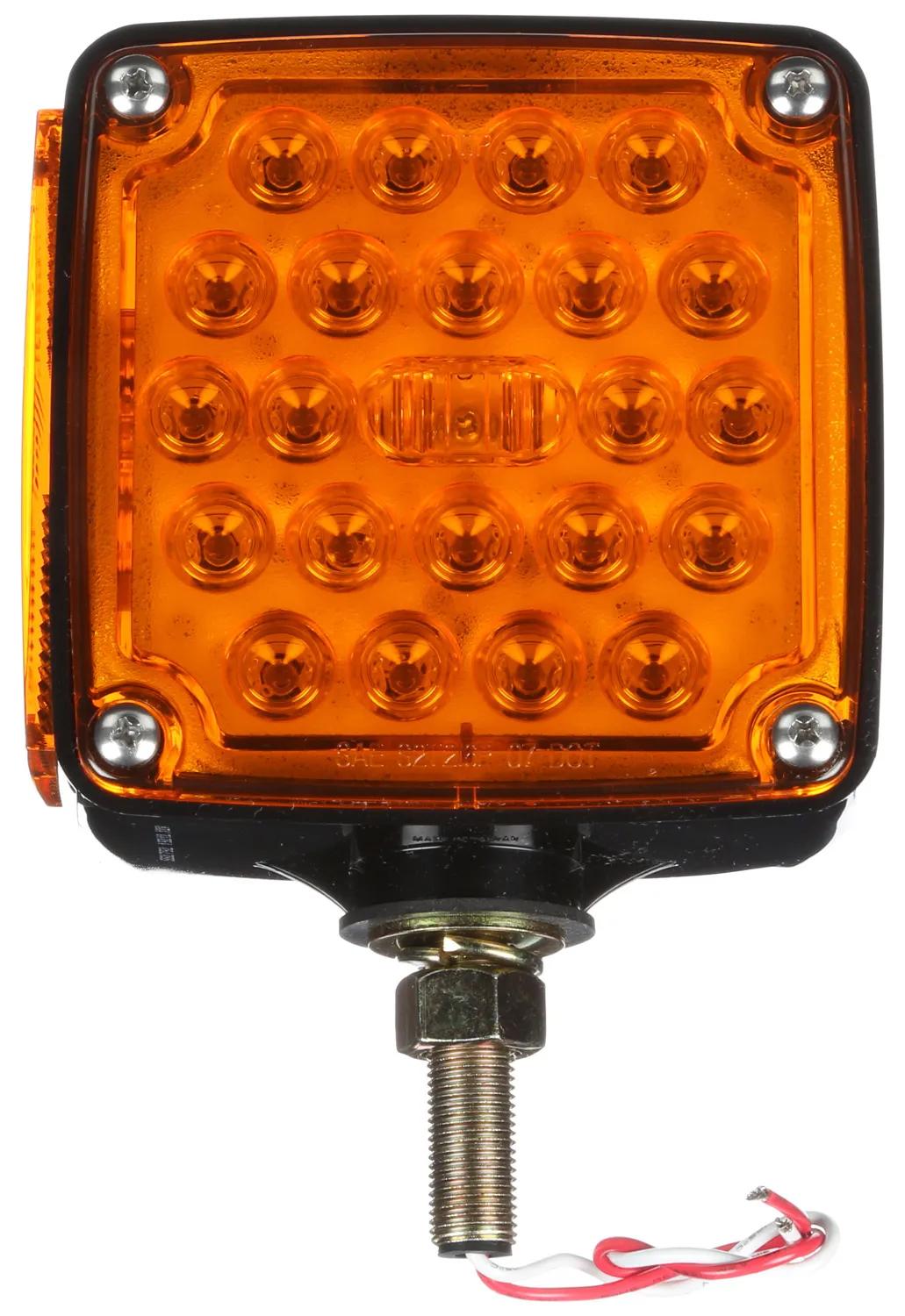

Pedestal Light, Amber & Yellow, Square
#TRL2752
Product Overview
Signal-Stat, LED, Yellow/Yellow Square, 24 Diode, Dual Face, Vertical Mount, Side Marker, 2 Wire, Pedestal Light, 1 Stud, Chrome, Stripped End/Ring Terminal
Features & Benefits
- Ideal for show trucks, highway, mowing, municipal and farm equipment
- Unique LED array displays full pattern output
- Side marker reflex reflector
- LEDs have no filament, therefore are extremely resistant to shock and vibration
Specifications
| Color | Amber |
| Common Size | 4-1/2 in (11.43 cm) |
| Contents | Pedestal Light |
| Current Major | 0.45 amp |
| Depth | 2-13/32 in (6.12 cm) |
| Finish | Chrome |
| Height | 4-35/64 in (11.56 cm) |
| Kit (Y/N) | No |
| Length | 4-23/32 in (11.99 cm) |
| Lens Material | Polycarbonate |
| Mount Type | Stud Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Left or Right Sides |
| Series | Signal-Stat |
| Shape | Square |
| Single or Dual | Dual Face |
| Standard | FMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Pedestal Light |
| VMRS Code | 034-003-141 |
| Volt | 12V |
| Width | 4-47/64 in (12.01 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 324 |
| 325 |
| 2752 |
| TRU2752 |
| 8413-2752 |
| TL 2752 |
| TL2752 |
| TLD2752 |
| 2752S1G |
| G5543-5GR0 |
| GRTG5543-5 |
| TKL2752 |
