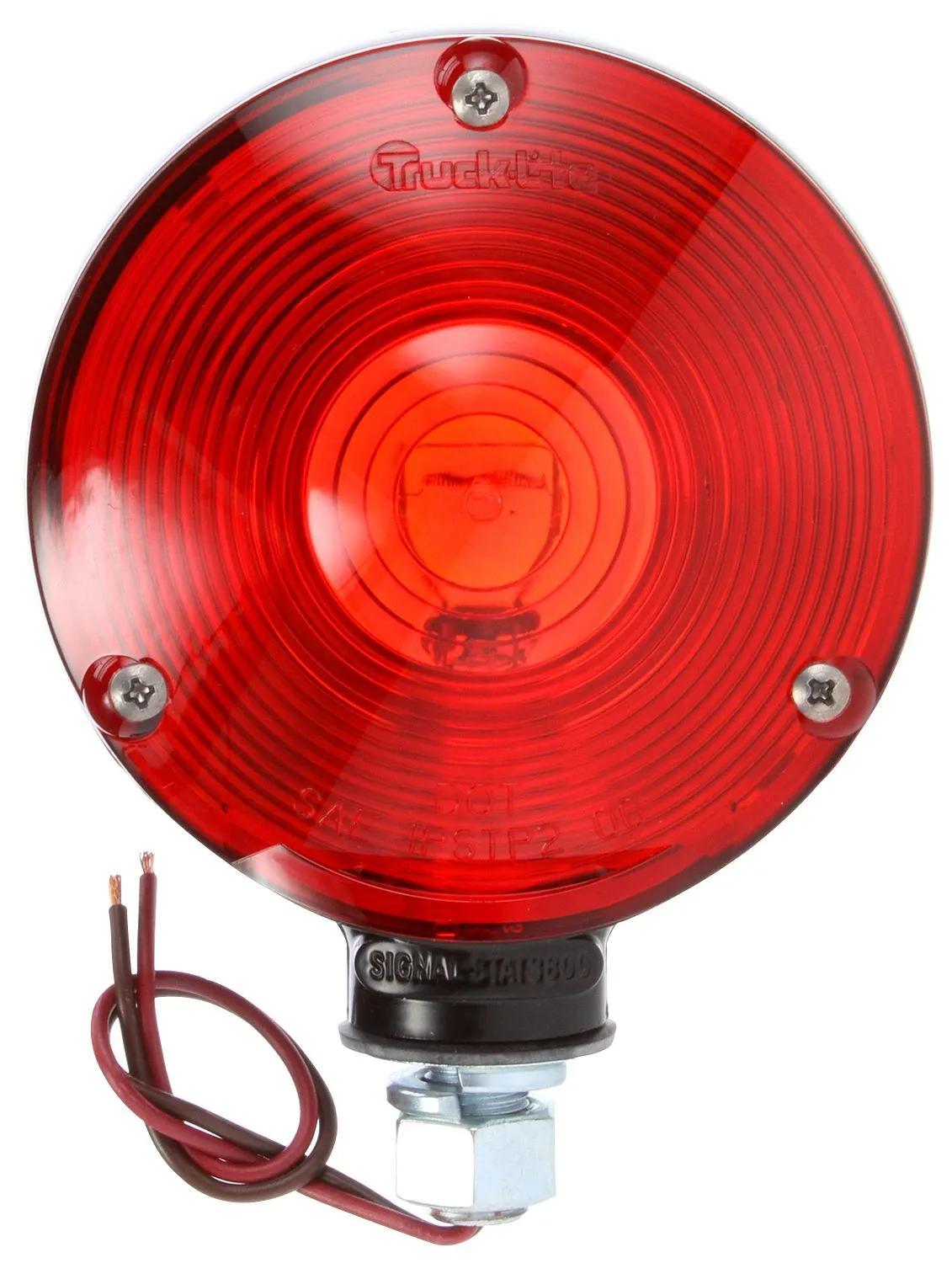

Pedestal Light, Red & Amber, Round
#TRL2803
Product Overview
Signal-Stat, Incandescent, Red/Yellow Round, 1 Bulb, Dual Face, 2 Wire, Pedestal Light, 1 Stud, Black, Stripped End
Features & Benefits
- 3805Y115 requires Phillips #28S 11/4SC or GE # 13655 bulb
- For vehicle application with vehicle width under 80" wide
- Pigtail with spring and thermoplastic wire exits via hollow stud
- LED Upgrade options available #2751, 2751A and 2750
Specifications
| Color | Amber & Red |
| Common Size | 4 in (10.16 cm) |
| Contents | Pedestal Light |
| Current Major | 2.1 amp |
| Current Minor | 0.59 amp |
| Depth | 2-25/64 in (6.07 cm) |
| Finish | Black |
| Height | 4-1/4 in (10.8 cm) |
| Kit (Y/N) | No |
| Length | 4-5/8 in (11.76 cm) |
| Lens Material | Acrylic |
| Mount Type | Stud Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Left or Right Sides |
| Series | Signal-Stat |
| Shape | Round |
| Single or Dual | Dual Face |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Pedestal Light |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Width | 4-5/8 in (11.76 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 3352 |
| 53020 |
| 84132803 |
| 47M0251P1 |
| 86106 |
| SIG2803 |
| TL2803 |
| TLD2803 |
| 2803 |
| 2803S1G |
| 8413-2803 |
| LIT2803 |
| TL 2803 |
| 335 |
| FM4302RA |
| V3352 |
| A0640131001 |
