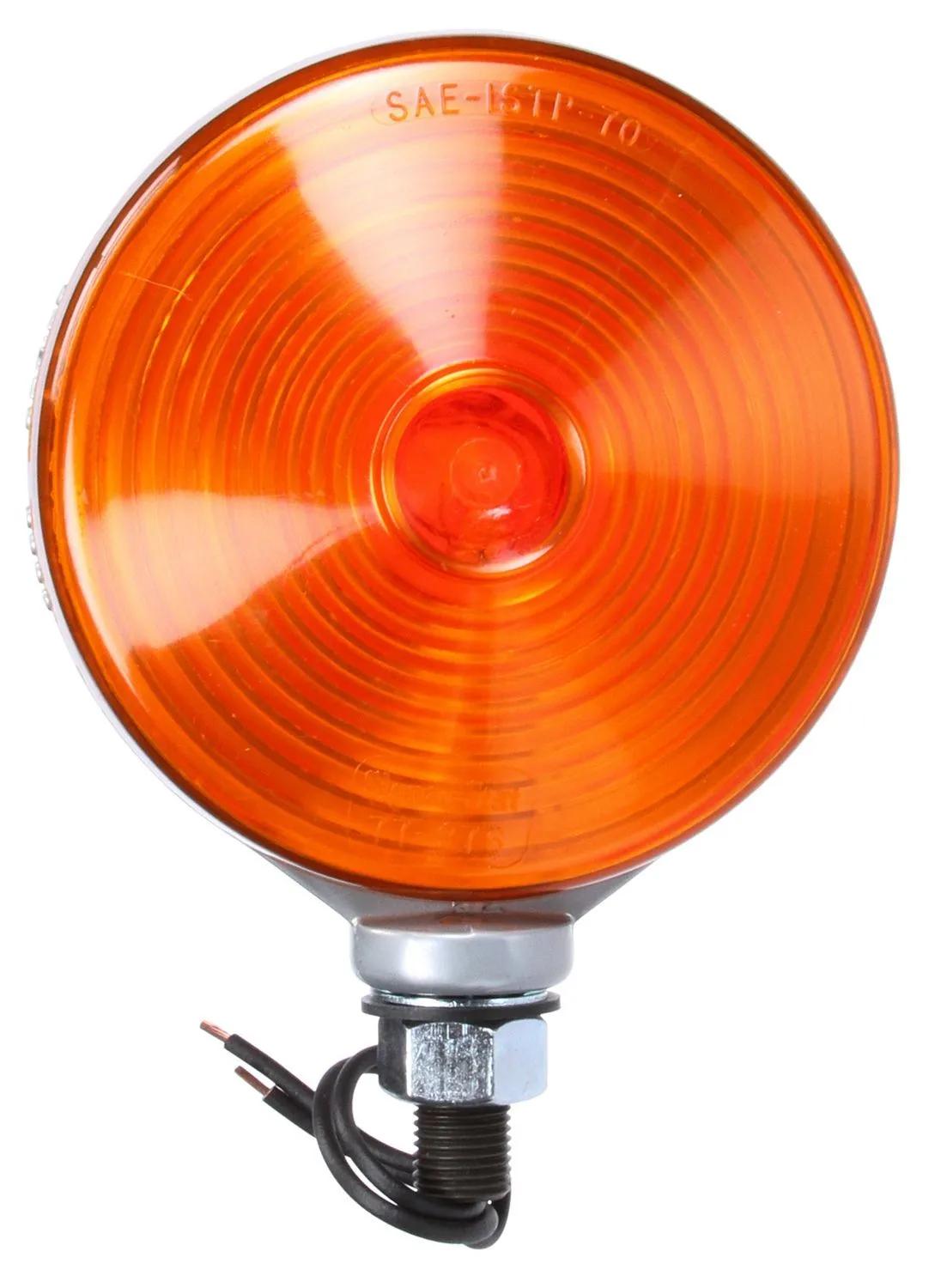

Pedestal Light, Red & Amber, Round
#TRL3862
Product Overview
Signal-Stat, Fender Mount, Incandescent, Red/Yellow Round, 1 Bulb, Dual Face, 2 Wire, Pedestal Light, 1 Stud, Gray, Stripped End
Features & Benefits
- Snap-Grip lens allows quick bulb and lens replacement
- O-ring lens gasket seals out dirt and moisture
- Mounting: Hollow stud, 1/2" diameter
- Can use 9199 or 9296 mounting brackets
- Wide range of applications
- Wide variety of lighting products
Specifications
| Color | Amber & Red |
| Common Size | 4 in |
| Contents | Pedestal Light |
| Current Major | 2.1 amp |
| Current Minor | 0.59 amp |
| Depth | 2-7/16 in |
| Finish | Gray |
| Height | 4-17/64 in |
| Housing Color | Black |
| Kit (Y/N) | No |
| Length | 5-21/32 in |
| Lens Material | Acrylic |
| Mount Type | Stud Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Position | Left or Right Sides |
| Series | Signal-Stat |
| Shape | Round |
| Single or Dual | Dual Face |
| Standard | FMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Pedestal Light |
| VMRS Code | 034-003-071 |
| Volt | 12V |
| Width | 4-21/32 in |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 3132RA |
| 3862 |
| SIG3862 |
| TL3862 |
| TLD3862 |
| 8413-3862 |
| LIT3862 |
| TL 3862 |
