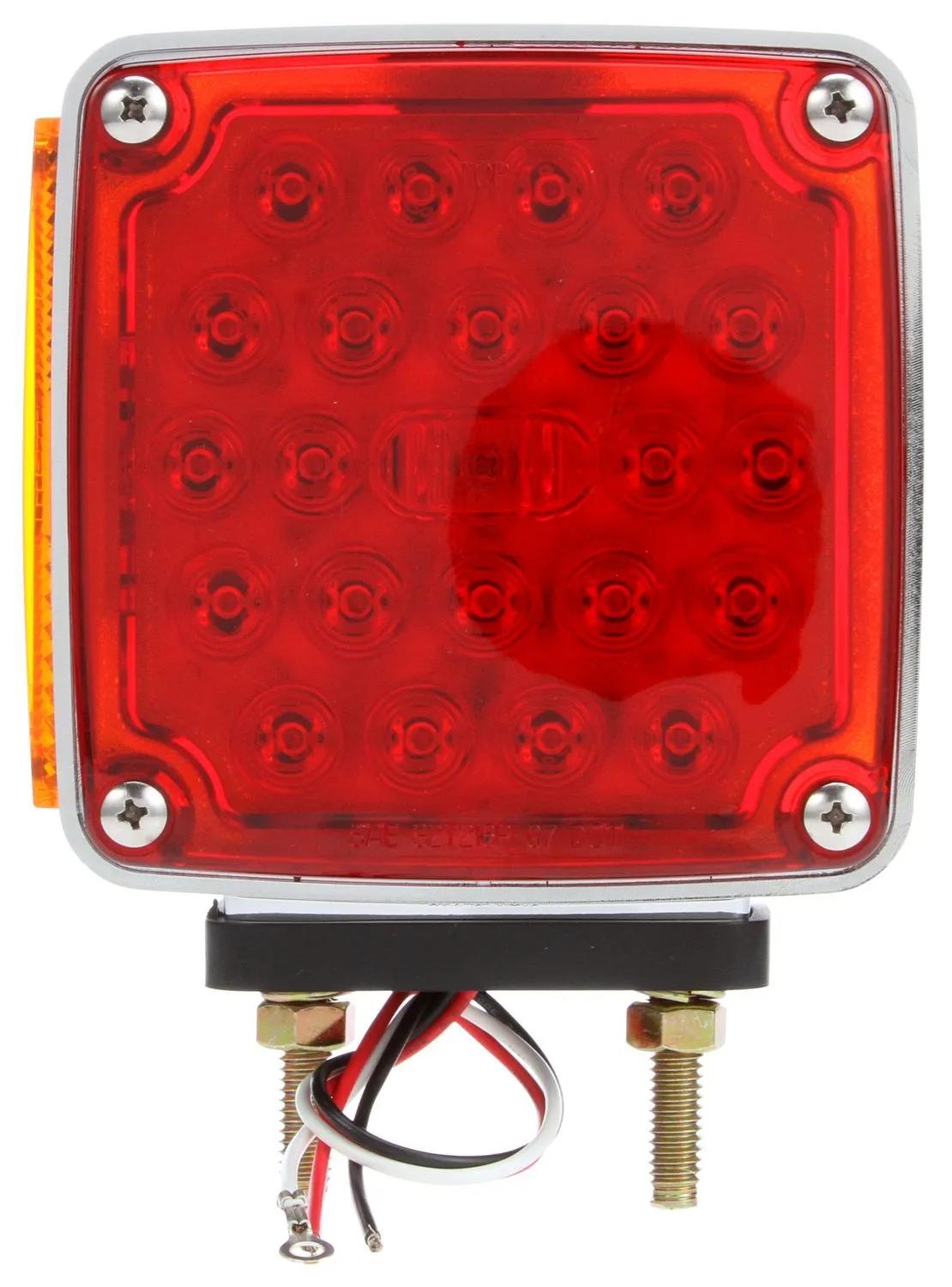

Pedestal Light, Red & Amber, Square
#TRL2759
Product Overview
Signal-Stat, LED, Red/Yellow Square, 24 Diode, LH, Dual Face, Vertical Mount, Side Marker, 3 Wire, Pedestal Light, 2 Stud, Chrome, Stripped End/Ring Terminal
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Color | Red & Amber |
| Common Size | 4-1/2 in (11.43 cm) |
| Connector | Direct Wire |
| Contents | Double Face LED Pedestal Lamp, Roadside |
| Current Major | 0.38 amp |
| Current Minor | 0.04 amp |
| Depth | 2-3/8 in (6.05 cm) |
| Dimension | 115 x 115 + post (30) |
| Finish | Chrome |
| Height | 5 in (12.7 cm) |
| Kit (Y/N) | No |
| Lamp Type | LED |
| Left, Right or Both Side | Both Sides |
| Length | 4-49/64 in (12.12 cm) |
| Lens Height | 4-45/64 in (11.94 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 4-45/64 in (11.94 cm) |
| Material | Metal |
| Mounting System | Dual Stud |
| Mount Type | Stud Mount |
| Number Of Wires | 3 |
| # of Diodes | 50 |
| Packaging | Boxed |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Position | Left Hand Side |
| Product Type | Pedestal Light |
| Series | Signal-Stat |
| Shape | Square |
| Single or Dual | Dual |
| Standard | FMVSS 108, DOT, SAE |
| Technology | LED |
| VMRS Code | 034-003-141 |
| Volt | 12 V |
| Weight | 1.39 lb (0.63 kg) |
| Width | 4-45/64 in (11.94 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 6 in (15.24 cm) |
